Published by Philips Consumer Lifestyle 14 | P a g e For internal use only
Document No. : CSW-07-081-18111

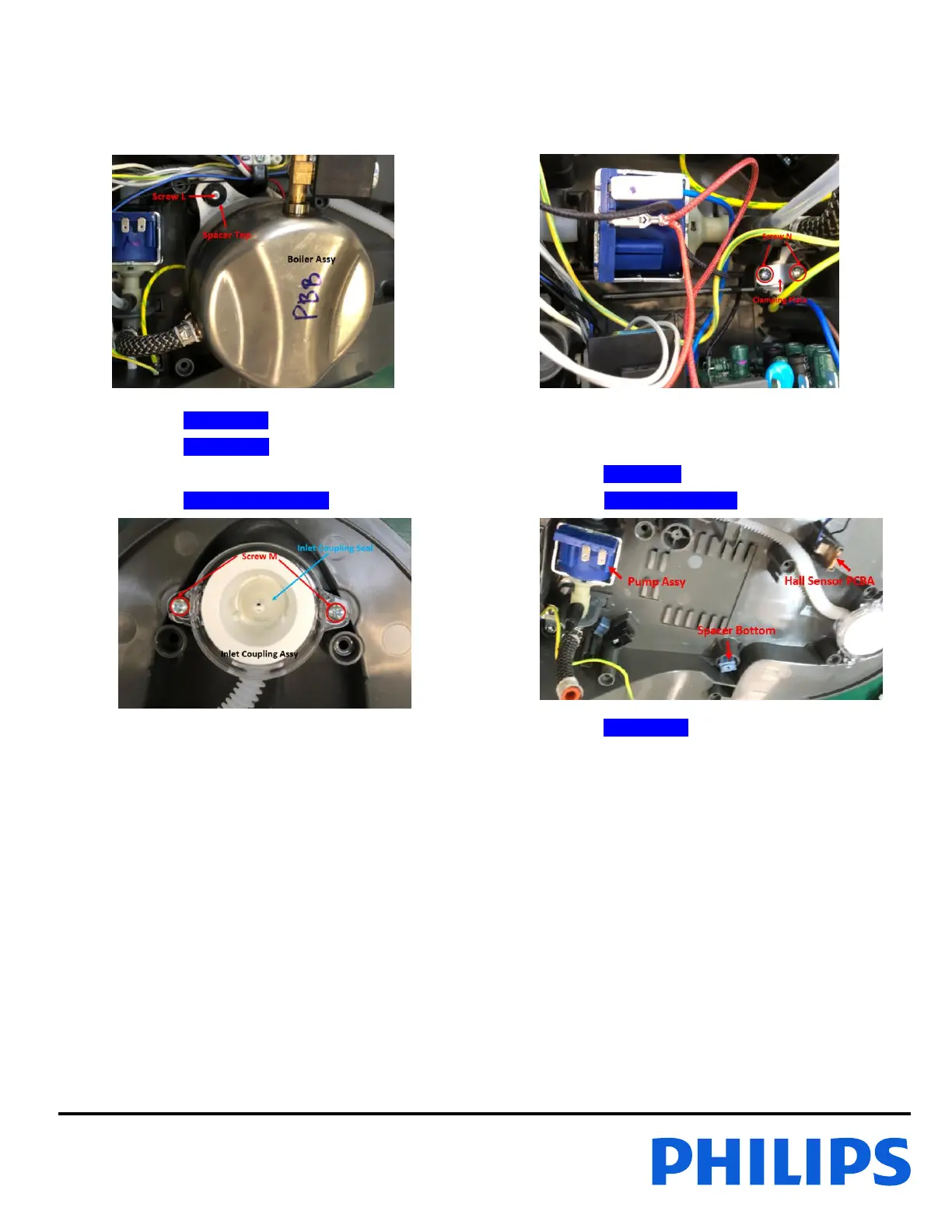

Disassembly Instructions - Stand
19. Remove Screw L 25. Remove Screw N
20. Remove Spacer Top 17 26. Remove Clamping Plate
21. Remove Boiler Assy 20 27. Disconect all wire connection
22. Remove Screw M 28. Remove Mainscord 30
23. Remove Inlet Coupling Assy 29. Remove Hall Sensor PCBA 26
24. Remove Spacer Bottom 30. Remove Pump Assy 19
