Philips GC 8930 - Lock Assy Disassembly

Published by Philips Consumer Lifestyle 15 | P a g e For internal use only
Document No. : CSW-07-081-18111

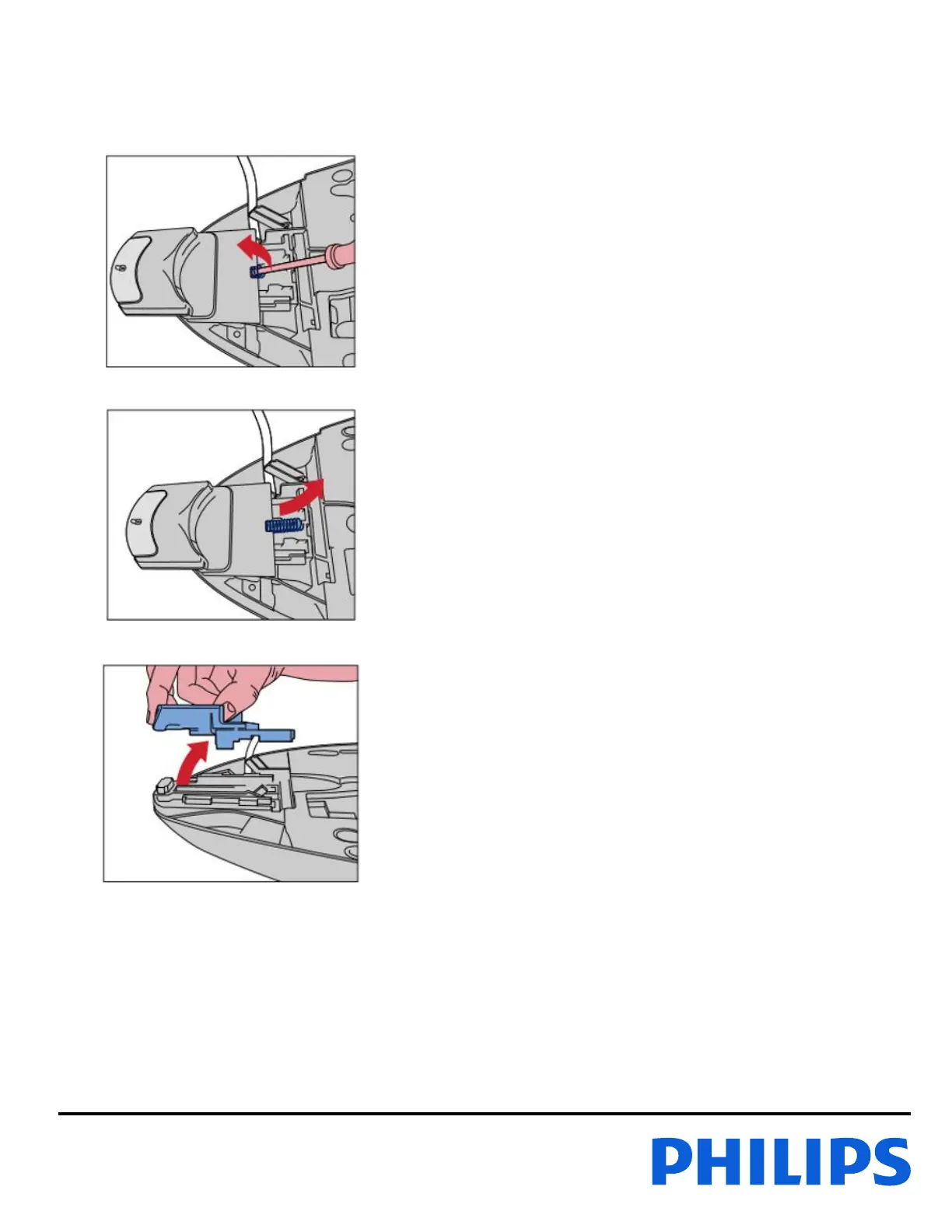

Disassembly Instructions – Lock Assy
Step 1: Use a screw driver to lift up the spring in the Lock Assy.
Step 2: Remove the lifted spring.
Step 3: Slide and lift up the Lock Assy
