Published by Philips Consumer Lifestyle 16 | P a g e For internal use only
Document No. : CSW-07-081-18111

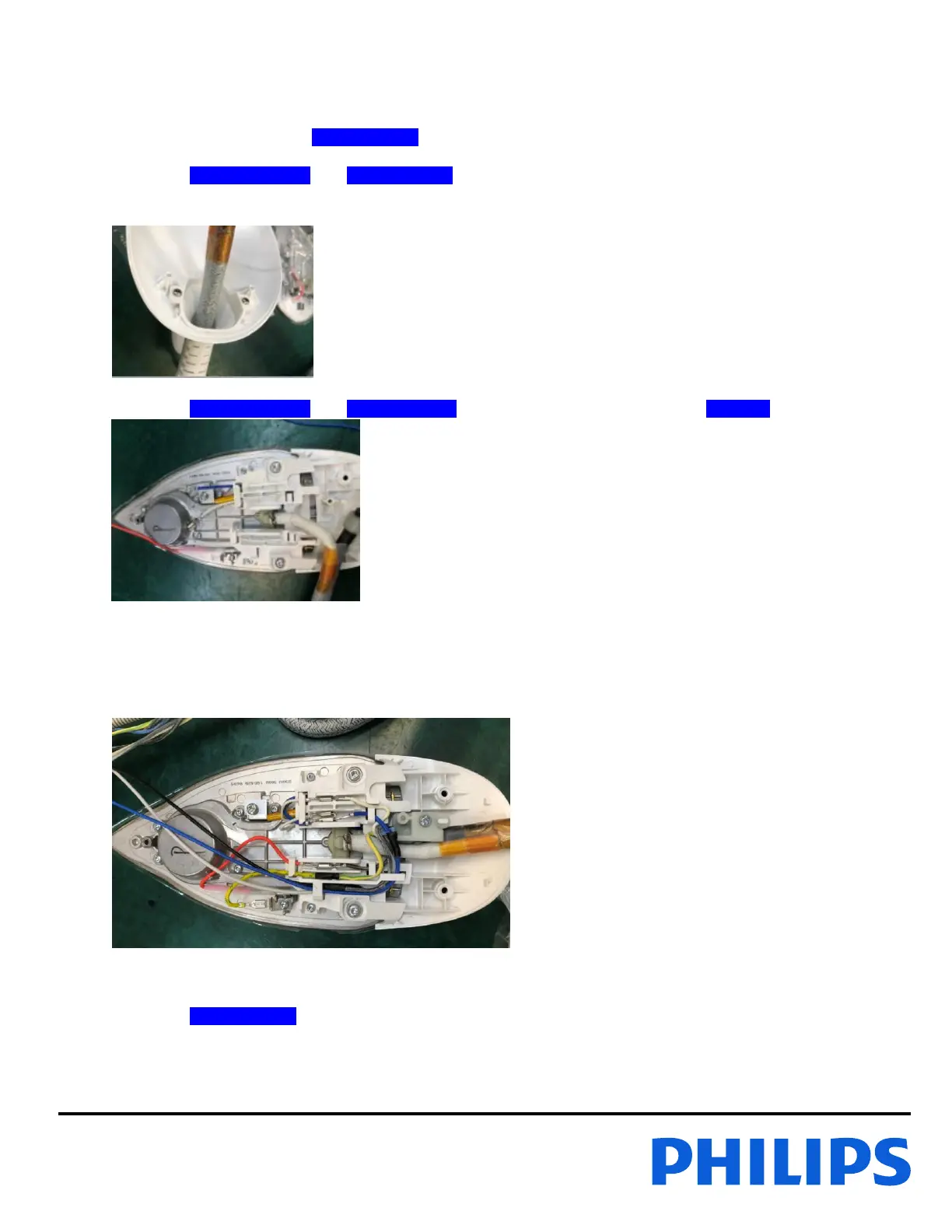

Reassembly Instructions (Continue) - Iron
1. Assemble Rubber Bung to Housing Prted 4
2. Assemble Hose Cord Assy 6 to Housing Prted 4
3. Assemble Screw P on Grommet, fasten Screw P
4. Assemble Hose Cord Assy 6 to Soleplate Assy 8, lock with Hose Clip, assemble Chassis 7
5. Assemble Mica Washer, assemble Screw E, fasten Screw E
6. Assemble Screw F, fasten Screw F
7. Connect all wire per picture below.
8. Assemble Ryton Ring
9. Assemble Housing Prted 4
10. Assemble Screw D, fasten Screw D
To Next Page
