Published by Philips Consumer Lifestyle 17 | P a g e For internal use only
Document No. : CSW-07-081-18111

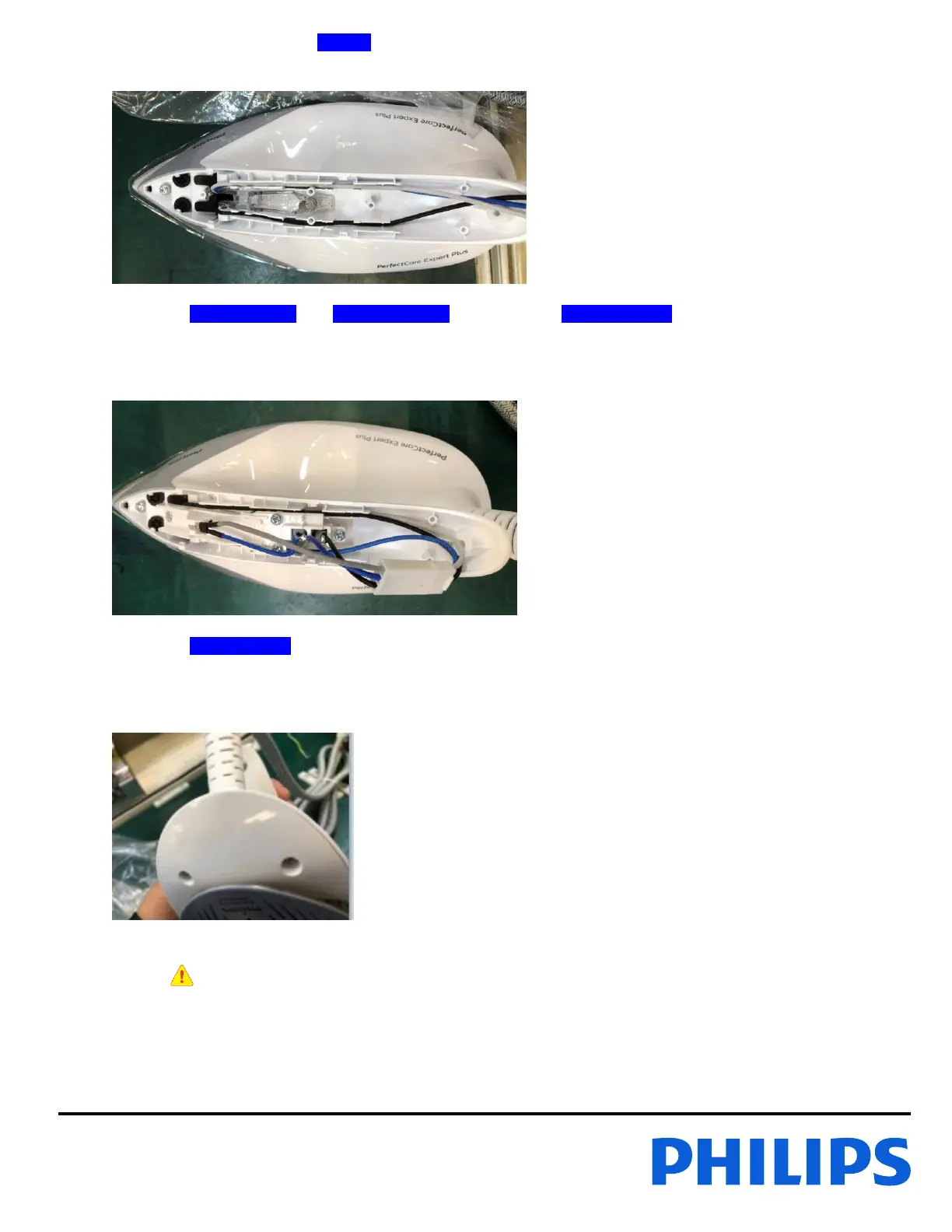

11. Assemble Rubber Support, Trigger 5 and Trigger Spring
12. Dress wire according to wiring diagram below
13. Assemble Iron LED Assy 2 to MS LED Holder 3, assemble to Housing Prted 4
14. Assemble Screw E, fasten Screw E
15. Connect wire (Micro Switch to Hose Cord)
16. Assemble Inlay 2K Assy 1
17. Assemble Screw A, fasten Screw A
18. Assemble Screw B, Fasten Screw B
Cautions:
a. before fastening screw, relocate the screw with first thread. Once done fasten the screw.
b. Do not drop, hit or knock the ASO/ PCBA. (ESD wrist strap & proper pack with ESD bag)
c. Ensure there is click sound after Connector to Terminal engagement for wire connection.
