Published by Philips Consumer Lifestyle 18 | P a g e For internal use only
Document No. : CSW-07-081-18111

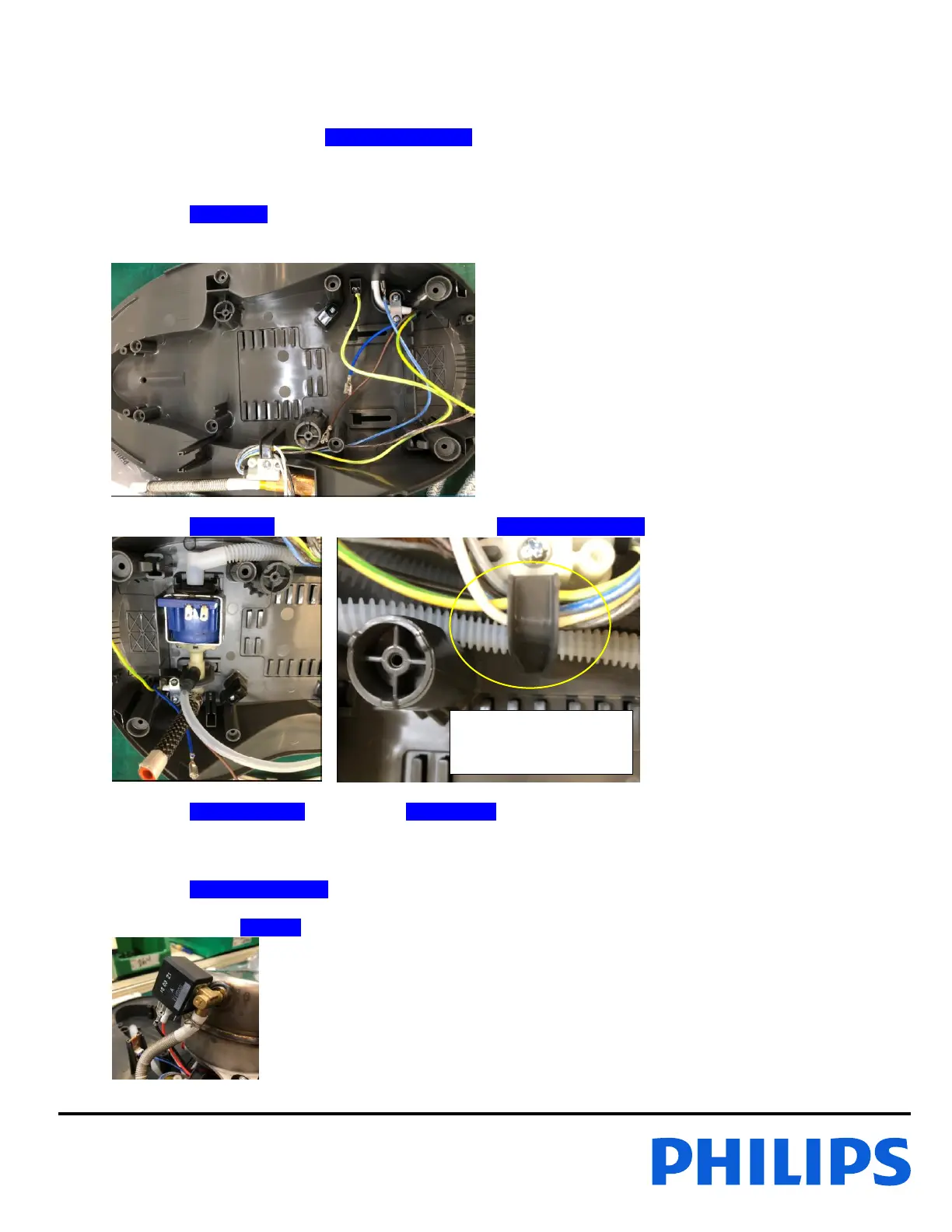

Reassembly Instructions (Continue) – Stand
1. Assemble Cord Clamp on to Stand Bottom Assy 27
2. Assemble Screw K, fasten Screw K
3. Assemble Mainscord 30
4. Assemble Clamping Plate, assemble Screw N, fasten Screw N
5. Assemble Pump Assy 19, dress corrugated Tube to Stand Bottom Assy 27
6. Assemble Spacer Bottom 21, assemble Boiler Assy 20
7. Connect all wire
8. Assemble Hall Sensor PCBA 26 and dress wire
9. Connect Hose to E-Valve 22, Lock Hose Clip with long nose plyer.
To Next Page
