GC9940
15-16
DISASSEMBLY ADVICE - MOVING COLUMN
Remove screws U1 - U4
Disassemble Plate pivot fl ange left
Disassemble Plate pivot fl ange right
Disassemble Handle lift left
Disassemble Handle lift right
Remove screws V1 - V8

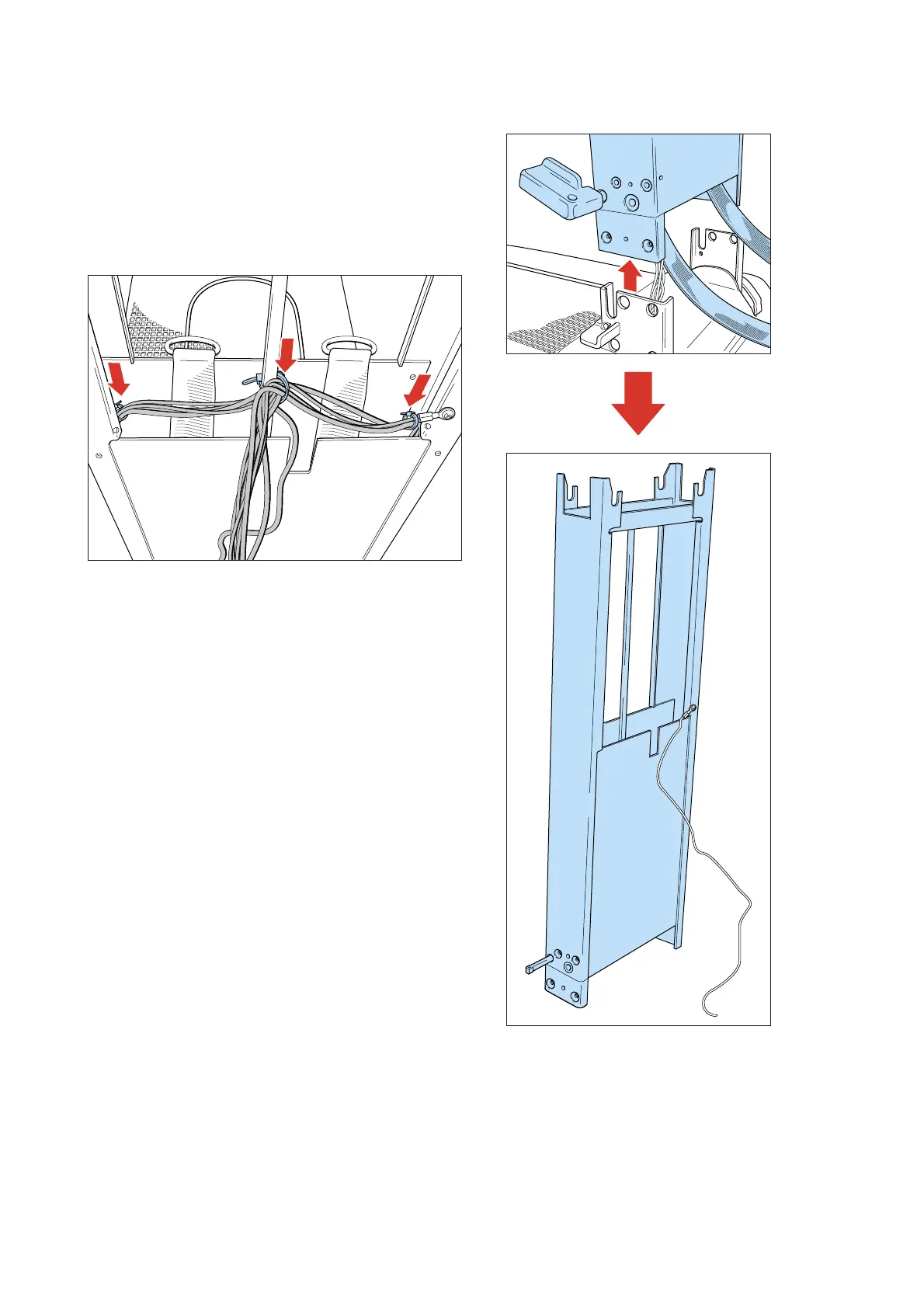

Cut 3x cable ties to free the wires on MOVING
COLUMN ASSY 62
Disassemble MOVING COLUMN ASSY 62
