GC9940
14-16

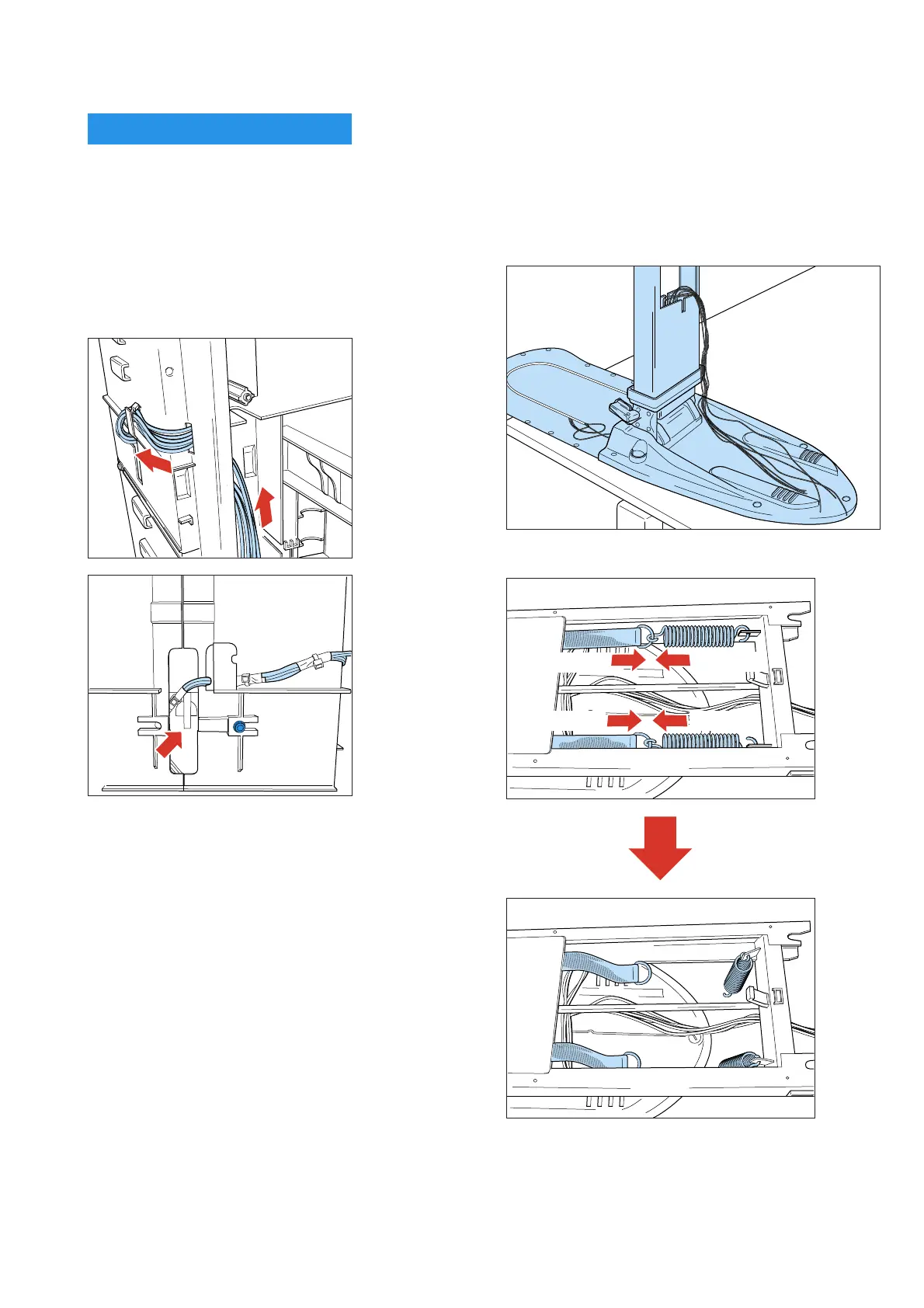

DISASSEMBLY ADVICE - MOVING COLUMN
MOVING COLUMN ASSY 15
Remove screws F1 - F4
Disassemble BACK COVER TOP 53
Remove screws K7 - K10
Disassemble PANEL LEFT ASSY 50
Disconnect 4-pole cable W4, Quick-connectors Earth
on STAND LECTRONICS 57
Undress the disconnected wires so that their ends are hanging
freely from position Loc 1:
F5
Loc 1
Remove screw F5
Press Handle lift left & Handle lift right
Pull upwards IRONING BOARD-MOVING COLUMN
assy, detaching completely from the Stand.
Place IRONING BOARD-MOVING COLUMN
upside down, lying fl at on ironing board
surface as follows:
Unhook 2x straps from the springs as follows:
Strap 1
Strap 2
Spring 1
Spring 2
To Next Page
