Philips GC9940 - Disassembly Advice - Stand Assy

GC9940
5-16
WHEEL ASSY 44
CAP ASSY 46
E-RING 45
Disassemble CAP WHEEL 46
Disassemble E-RING 45
Disassemble WHEEL ASSY 44
BACK COVER TOP 53
BACK COVER BOTTOM 54
AUTO CORD WINDER 48
Remove screws F1 - F4
Disassemble BACK COVER TOP 53
Remove screws G1 - G6
Disassemble BACK COVER BOTTOM 54
Remove screws H1 - H3
Disconnect quick-connectors E, L, N, at the back of
AUTO CORD WINDER 48
Disassemble AUTO CORD WINDER 48
SPRING LIFT COLUMN ASSY 42
Remove IRONING BOARD-MOVING COLUMN
assy (refer DISASSEMBLY ADVICE-
MOVING COLUMN)
Remove screws J1 - J2
Disassemble SPRING LIFT COLUMN ASSY 42
PANEL LEFT ASSY 50
PANEL RIGHT ASSY 51
STAND ELECTRONICS 57
SMPS ELECTRONICS 58
COVER COMPLARTMENT
BOILER 41
Remove screws K1 - K12
Disassemble PANEL LEFT ASSY 50
Disassemble PANEL RIGHT ASSY 51
Disassemble COVER COMPARTMENT BOILER 41
Remove screw L
Disassemble SMPS ELECTRONICS 58
Remove screw M
Disassemble STAND ELECTRONICS 57
RINSE TANK ASSY 56
FOOT ASSY 43
PANEL FRONT BOTTOM 52
CHASSIS BOILER ASSY 23
PUMP ASSY 32
ELECRO VAVLE 27
RINSE VAVLE 29
Remove RINSE TANK ASSY 56
Remove screws N1 - N4
Disassemble FOOT ASSY 43
Remove screws P1 - P2
Disassemble PANEL FRONT BOTTOM 52

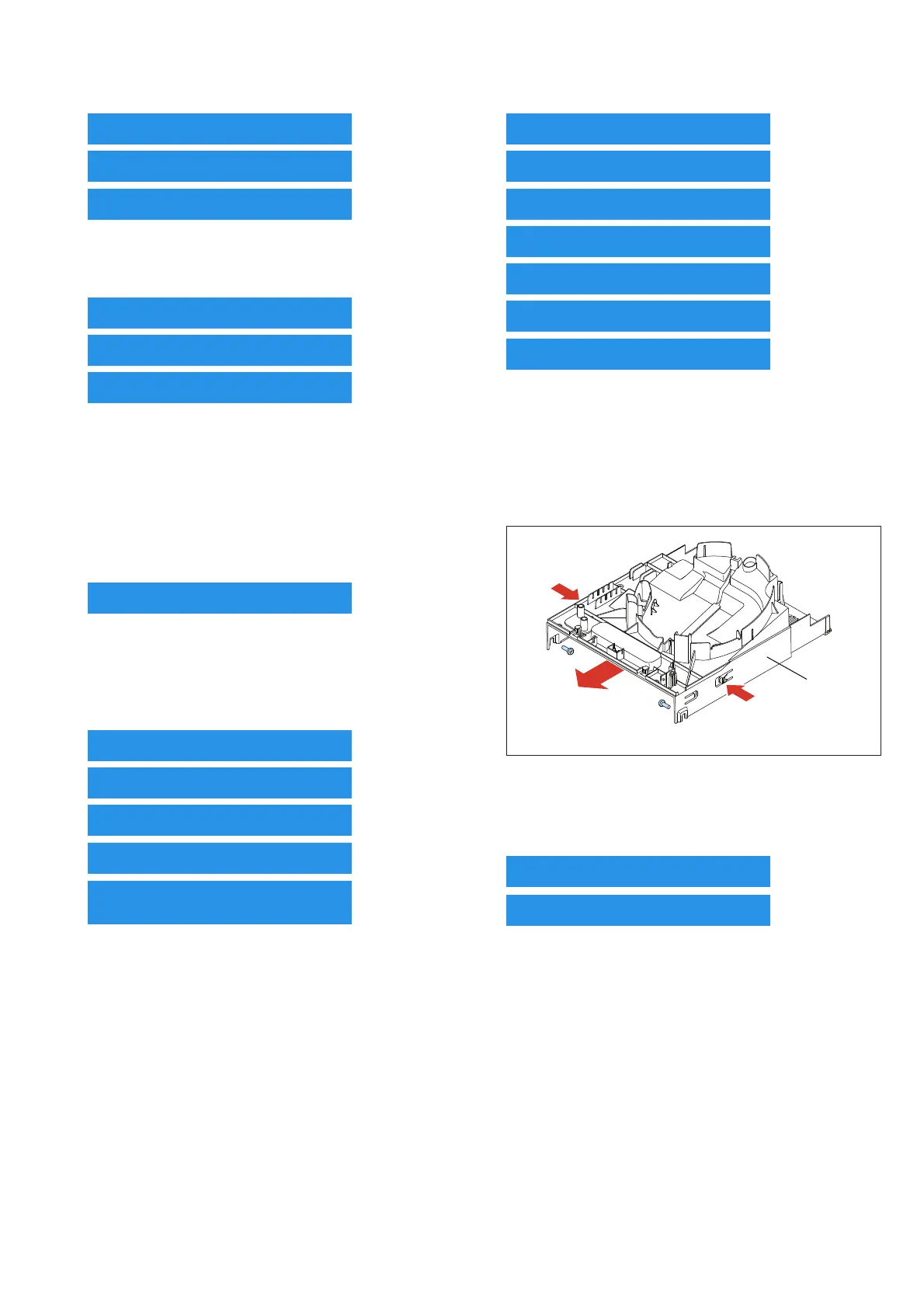

Remove screws a1 & a2 (Refer below picture)
Remove 2x catches at the Boiler chassis
Release
catch
Release
catch
Pull out
chassis
Boiler
chassis
a1
a2
Pull out CHASSIS BOILER ASSY 23
Disassemble PUMP ASSY 32
Disassemble ELECTRO VALVE 27
Disassemble RINSE VALVE 29
WATER SOCKET 37
MD WC SEALING 38
Remove screw Q
Disassemble WATER SOCKET 37
Disassemble MD WC SEALING 38
DISASSEMBLY ADVICE - STAND ASSY
