Philips GM 5605 - Table of Contents

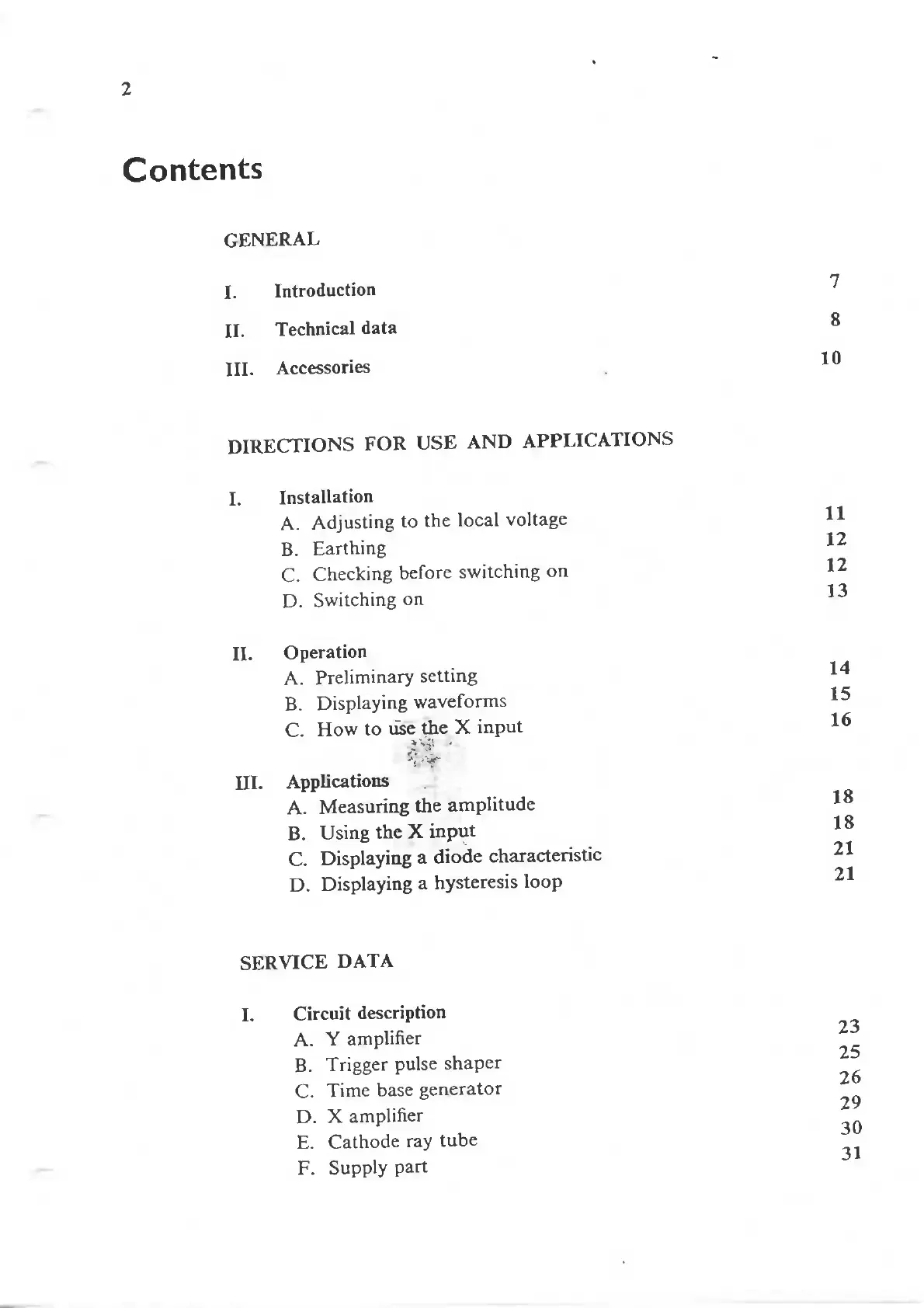

Contents
GENERAL
I. Introduction 7
II. Technical data 8
III. Accessories 10
DIRECTIONS FOR USE AND APPLICATIONS
I. Installation
A. Adjusting to the local voltage 11
B. Earthing 12
C. Checking before switching on 12
D. Switching on 13
II. Operation
A. Preliminary setting 14
B. Displaying waveforms 15
C. How to use the X input 16
•v,v*$r -j-
% •
*•• T.
III. Applications
A. Measuring the amplitude 18
B. Using the X input 18
C. Displaying a diode characteristic 21
D. Displaying a hysteresis loop 21
SERVICE DATA
I. Circuit description
A. Y amplifier 23
B. Trigger pulse shaper 25
C. Time base generator
D. X amplifier
E. Cathode ray tube
-3-|
F. Supply part
