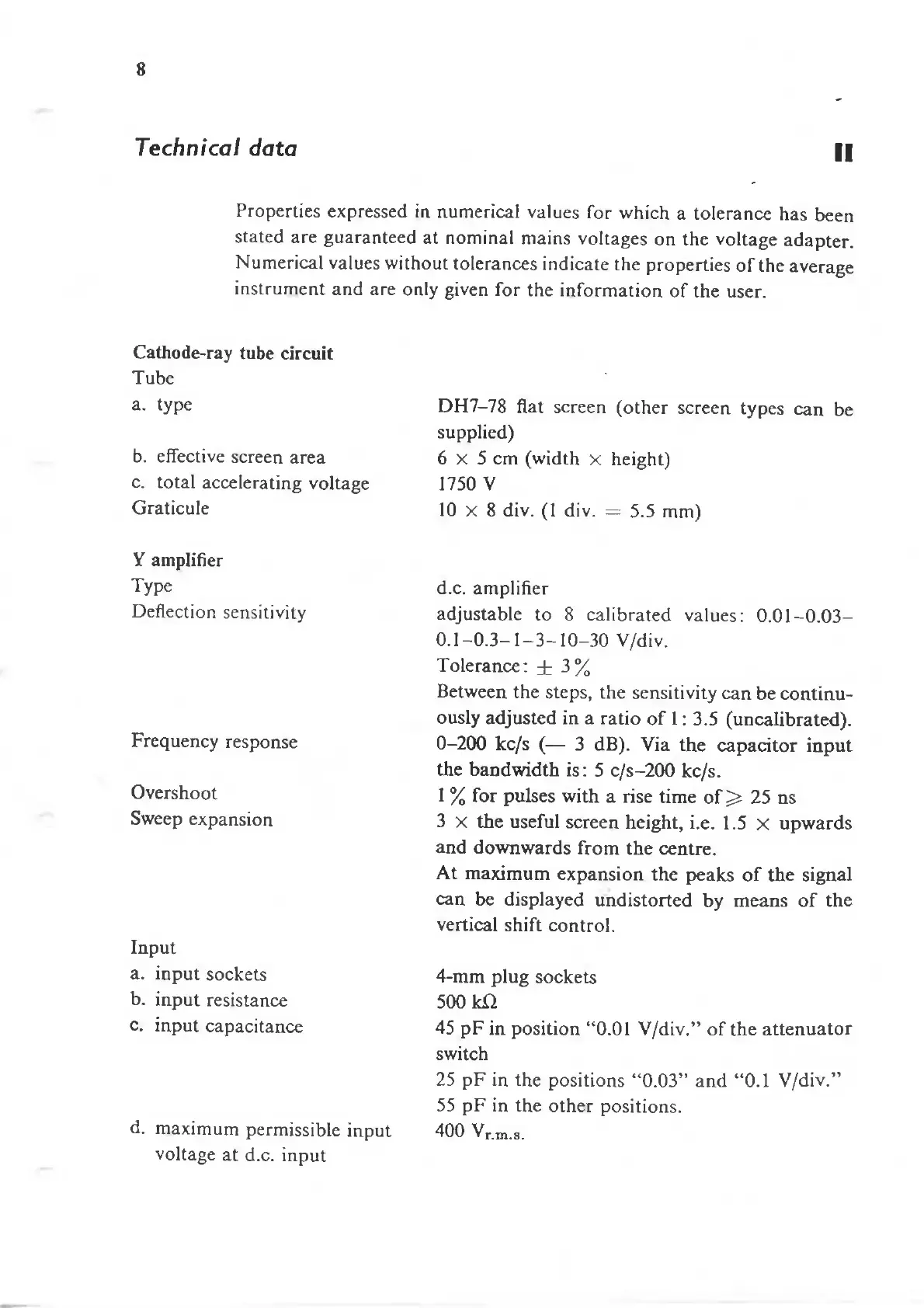

8
Technical
data
II
Properties
expressed
in
numerical
values
for
which
a
tolerance
has
been
stated
are
guaranteed
at
nominal
mains
voltages
on the
voltage adapter.
Numerical
values
without
tolerances
indicate
the
properties
of the
average
instrument
and are
only
given
for the
information
of the
user.
Cathode-ray
tube circuit
Tube
a.
type
b.
effective
screen area
c.
total accelerating voltage
Graticule
V
amplifier
Type
Deflection
sensitivity
Frequency response
Overshoot
Sweep expansion
Input
a.
input sockets
b.
input resistance
c.
input capacitance
d.
maximum
permissible
input
voltage
at
d.c.
input
DH7-78
flat
screen (other screen types
can be
supplied)
6 x 5 cm
(width
X
height)
1750V
10
X
8div.
(1
div.
= 5.5 mm)
d.c.
amplifier
adjustable
to 8
calibrated values:
0.01-0.03-
0.1-0.3-1-3-10-30
V/div.
Tolerance:
±3%
Between
the
steps,
the
sensitivity
can be
continu-
ously adjusted
in a
ratio
of
1:
3.5
(uncalibrated).
0-200
kc/s
(— 3
dB).
Via the
capacitor
input
the
bandwidth
is: 5
c/s-200
kc/s.
1
% for
pulses with
a rise
time
of
^
25 ns
3 X the
useful
screen height,
i.e.
1.5 X
upwards
and
downwards from
the
centre.
At
maximum expansion
the
peaks
of the
signal
can be
displayed
undistorted
by
means
of the
vertical
shift
control.
4-mm
plug sockets
500
kO
45
pF in
position
"0.01
V/div."
of the
attenuator
switch
25
pF in the
positions
"0.03"
and
"0.1
V/div."
55
pF in the
other positions.
400
Vr.m.s.
