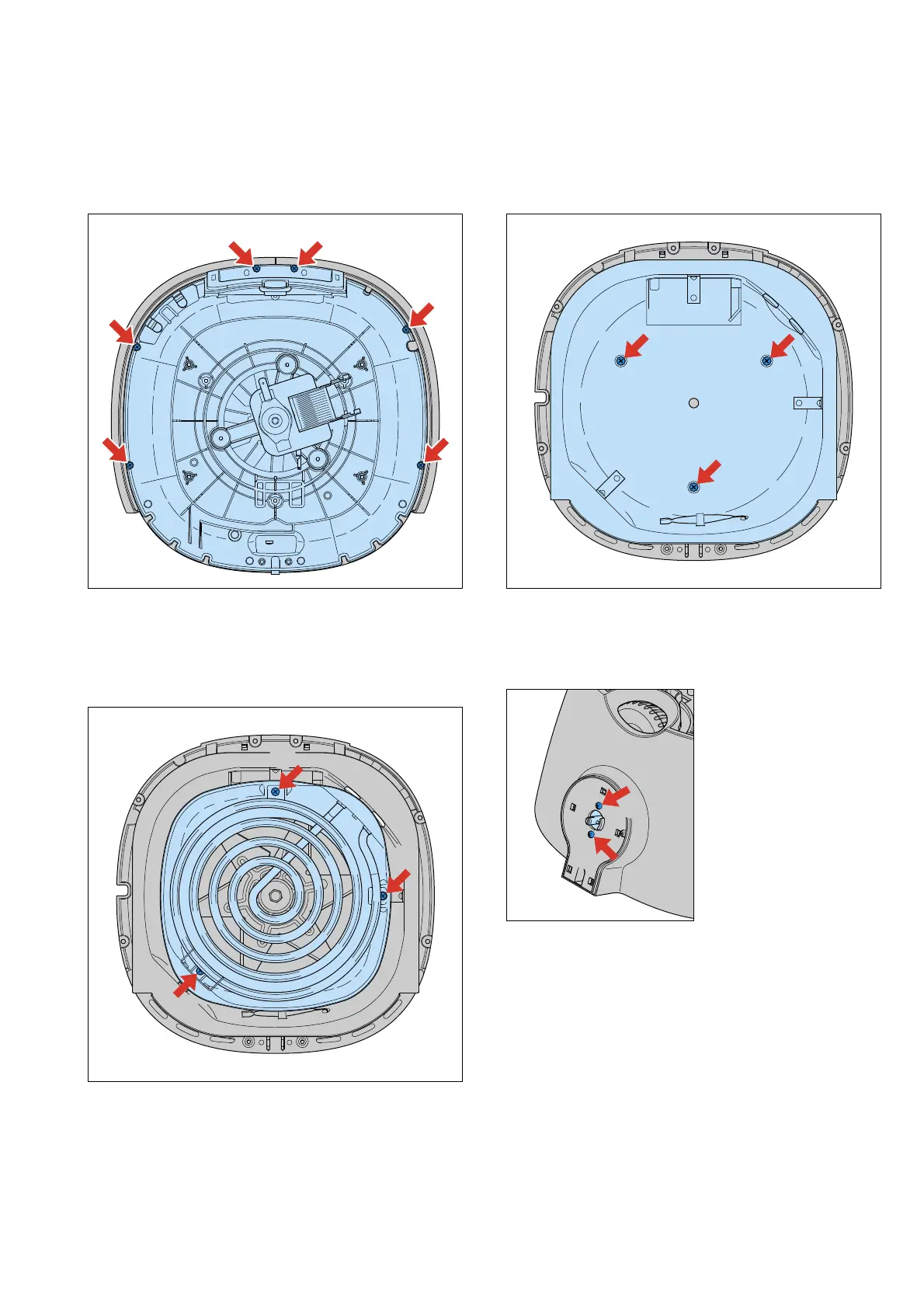

B. Cover housing removal
1. Follow previous step A
2. Open the motor fan assy from the base by unscrewing the
6screws C. Be aware of the 2 screws under the lter.
C
C
CC
C
C
C. Heating element + Fan Removeval
1. Follow previous step A and B
2. Undo the heating element from the double heat shield by
unscrewing the 3 screws D.
D
D
D
3. Cut the 2 heating element wires halfway and remove the
heating element.
4. Undo the nut from the left screw thread and remove the
fan.
D. Double heat shield removal
1. Follow previous step A, B and C
2. Remove the double heat shield out of the motor fan assy
by unscrewing the 3 screws E.
E
E
E
E. Timer removal
1. Follow step A
2. Unscrew the 2 screws F behind the timer knob.
F
F
3. Remove the wires of the timer.
