Philips HR2357 - Final Assembly Checks

ENGLISH 11
4

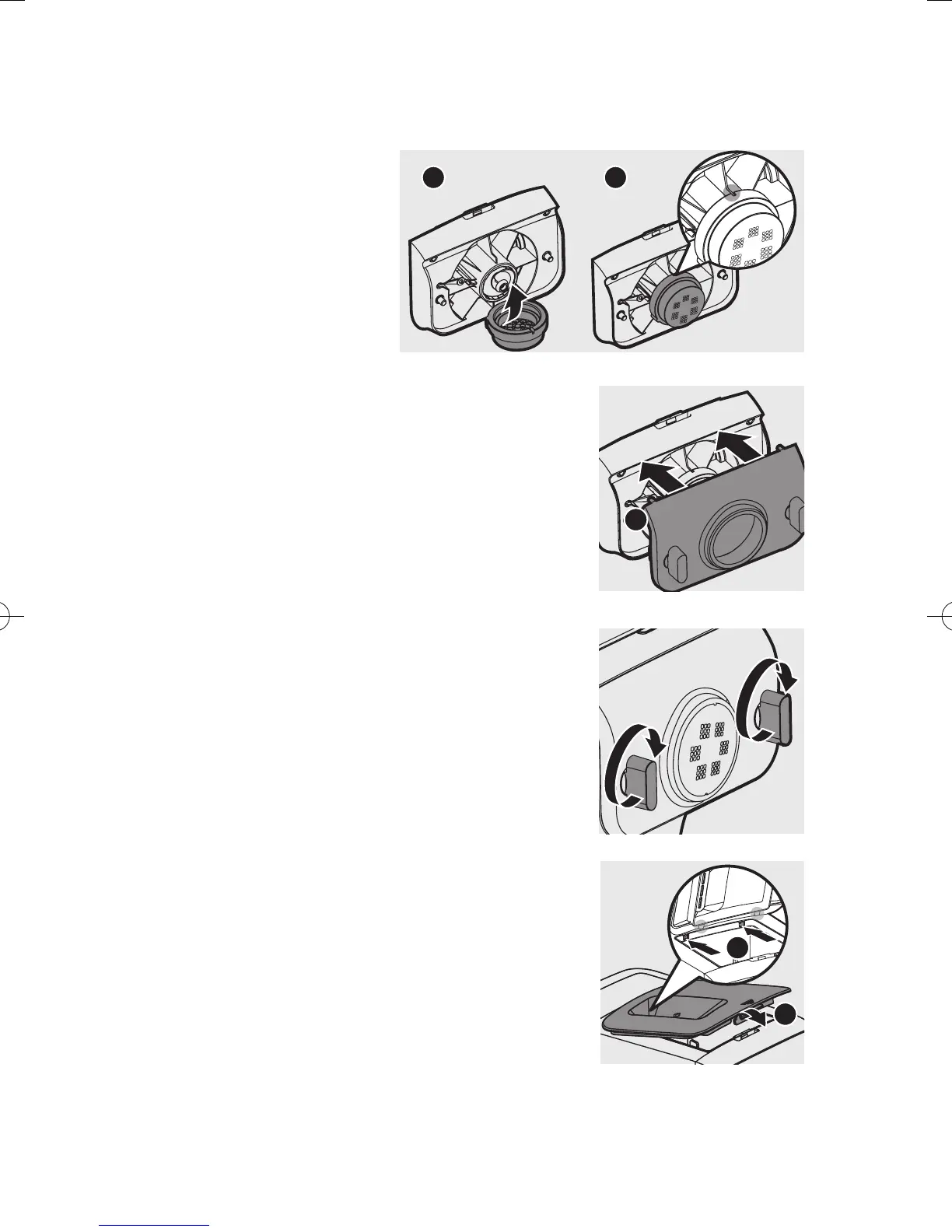

Put the shaping disc onto the disc holder ❶ , and make sure it is rmly xed on the
disc holder ❷ .
Note:
• Make sure the inner cavity
of the shaping disc and
disc holder is properly
tted.
5
Attach the front panel to the main unit.
❶
Disc holder safety switch lever
Note:
• Make sure the front panel is completely fastened
before using the appliance.
• The front panel is heavy. Take extra caution when
assembling it.
6
Fasten the front panel control knobs.
Note:
• If the front panel or the shaping disc is not properly
assembled, the safety switch will prevent the
appliance from working.
7
Close the mixing chamber lid properly.
Note:
• If the mixing chamber lid is not properly installed,
the safety switch will prevent the appliance from
working.
1
2
1
1
2
