2 Your SoundBar
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfrom
the support that Philips offers, register your
SoundBar at www.philips.com/welcome.

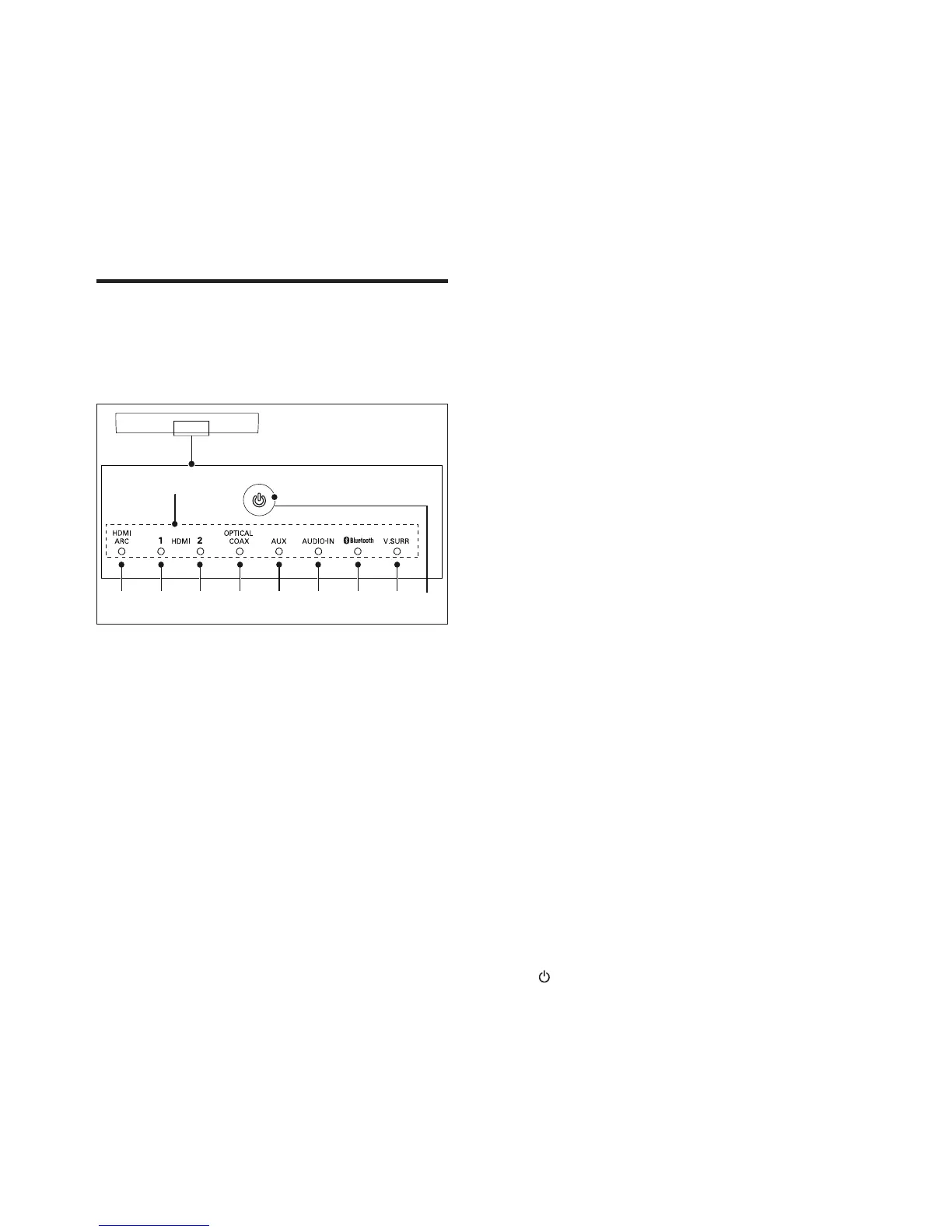

Indicators on the main unit
This section describes the information of the
LED indicators on the main unit.
a Volume indicator
• When you change volume, one
or multiple indicators (up to eight
indicators) light up to indicate the
volume level.
Wireless pairing indicators
• During wireless pairing between the
main unit and the surround speakers,
eight indicators blink one by one.
• When the pairing succeeds, eight
indicators light up for three seconds.
• If the pairing fails, eight indicators blink
three times.
b HDMI ARC
• Lights up when you select HDMI ARC
as the input source.
• Blinks when no audio from the
selected HDMI ARC source is
detected, or when an unsupported
audio format is detected.
a
c
defghib
j
c HDMI 1
Lights up when you select HDMI IN 1 as
the input source.
d HDMI 2
Lights up when you select HDMI IN 2 as
the input source.
e OPTICAL/COAX
• Lights up when you switch to optical
or coaxial input source.
• Blinks when an unsupported audio
format is detected.
f AUX
Lights up when you switch to AUX input
source.
g AUDIO-IN
Lights up when you switch to AUDIO-IN
source (3.5mm jack).
h Bluetooth
• Lights up when you switch to
Bluetooth mode and Bluetooth devices
are paired.
• Blinks when you switch to Bluetooth
mode and Bluetooth devices are not
paired.
i V. SURR indicator
• Lights up when surround mode is
selected.
• Off when stereo mode is selected.
• Blinks once when night mode/auto
volume is enabled.
• Blinks twice when Dolby Digital audio
is input.
• Blinks twice when night mode/auto
volume is disabled.
• Blinks three times when DTS audio is
input.
j (Standby-On/Standby indicator)
When the SoundBar is in standby, the
standby indicator turns red.
