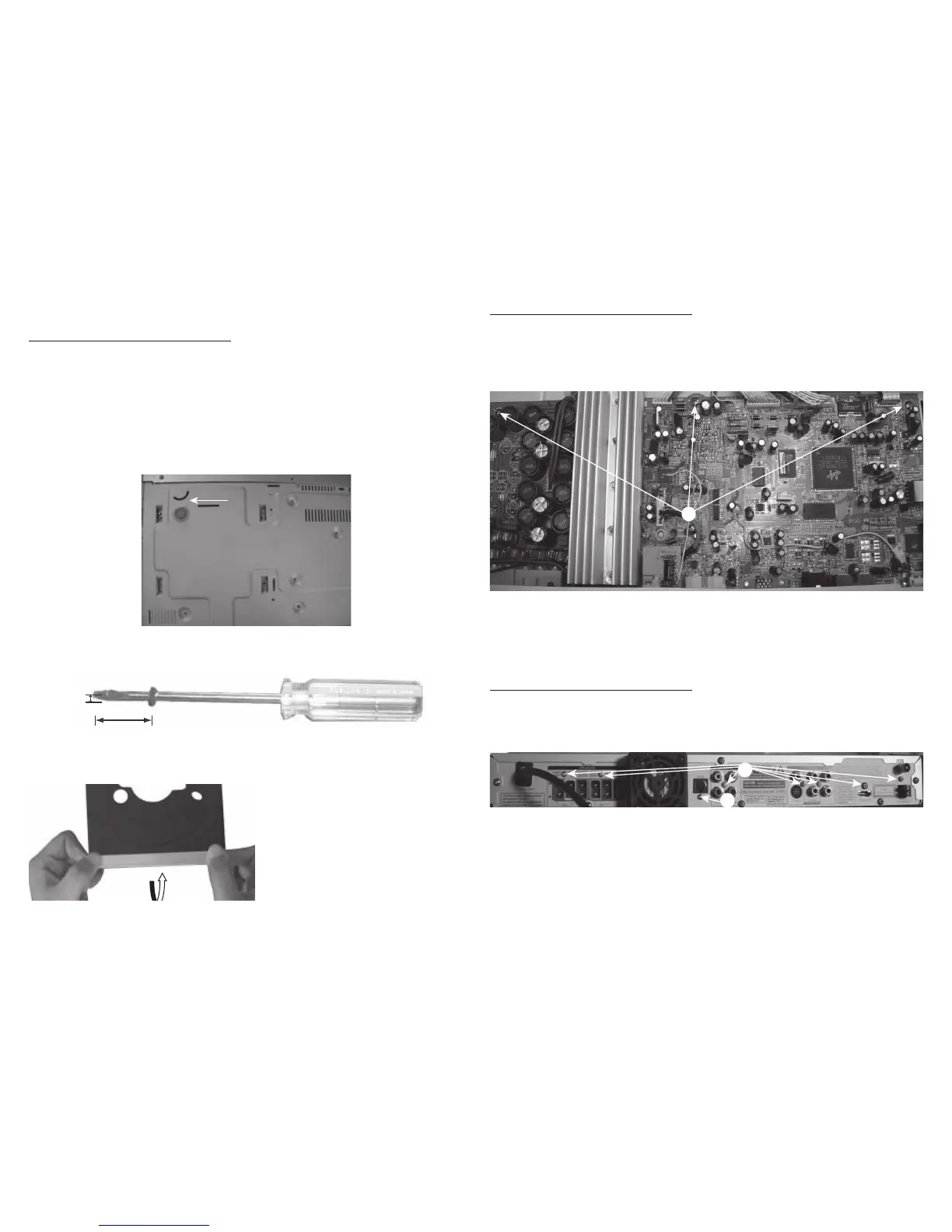

DISASSEMBLY INSTRUCTIONS
Dismantling of the Front Panel Assembly
1) Open the DVD Tray by using the Open/Close Button
while the Set is ON and disconnect the mains supply after
removing the Tray Cover.
Note: If this is not possible, the DVD Tray
has to be open manually.
Take a mini screw driver about 2mm diameter and make a
marking 24mm from the tip as shown in  gure 2 . Place the
set on its side, insert the mini screw driver till the marking
and slide it towards the right as shown in  gure 1 until the
Tray moves out of the Front Panel.
2) Return the set to its upright position and remove the Tray
Cover as shown in Figure 3 and close the tray manually by
pushing it back in.
3) Loosen 5 screws and remove the Top Cover by lifting the
rear portion upwards before sliding it out towards the rear.
- 3 screws on the back
- 1 screws each on the left & right side
4) Loosen 5 screws & lift up the top edge of Front Panel
assembly to free some catches before sliding it out towards
the front.
- 3 screws on the bottom
- 1 screw each on the left & right side
24mm
mm2
Figure 3
Figure 2
Dismantling of the Main PCB
2) Loosen 3 screw “ A “ on the top of main board as shown in
 g ure 4.
1) Loosen 7 screw “B” at the back panel as shown in  gure 5.
A
B
C
Figure 4
Figure 5
Dismantling of the Ipod Board
1) Loosen 1 screws “C” at the back pancle as shown in  gure5
PULL
Figure 1
