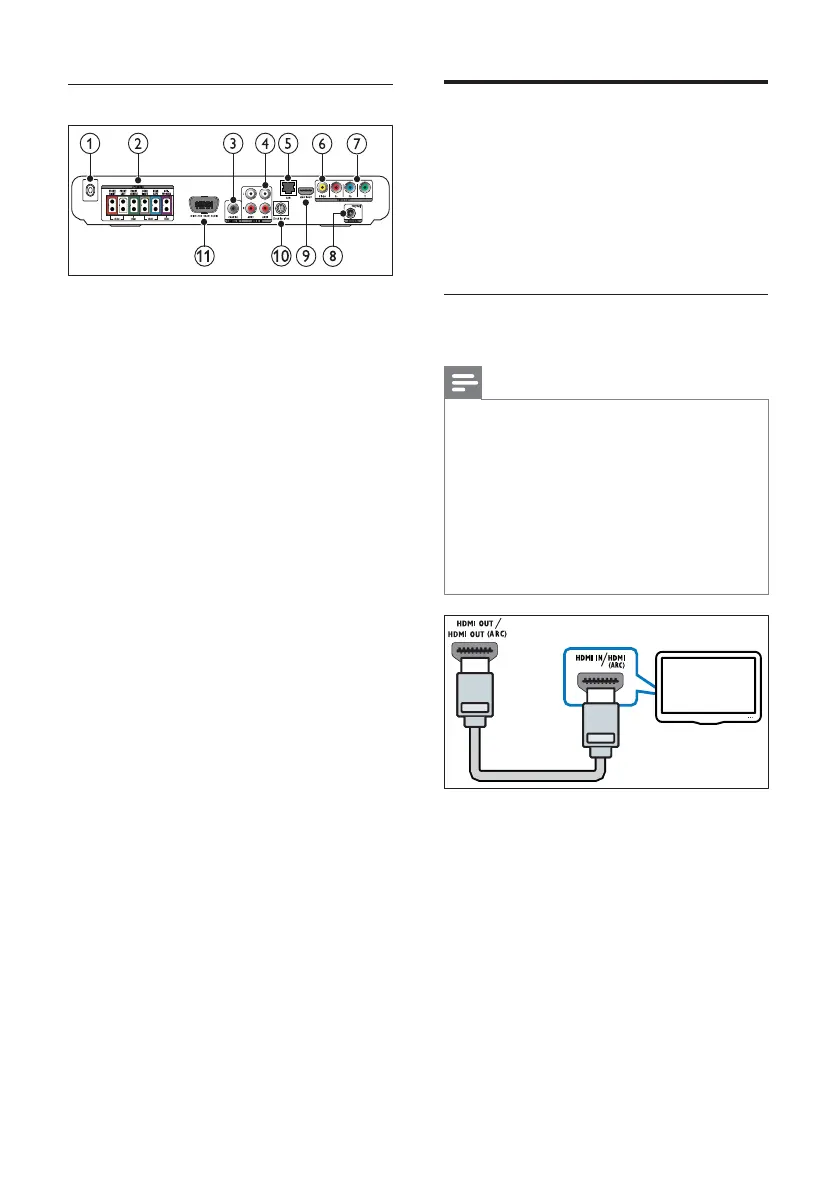

Connect to the TV
Connect your home theater directly to a TV
through one of the following connectors (from
highest to basic quality video):
a HDMI
b Component video
c Composite video
Option 1: Connect to the TV through
HDMI
Note
• The HDMI connector on the TV might be
labeled HDMI IN or HDMI ARC.
• If the TV supports HDMI Audio Return
Channel (ARC), you can use it to output digital
audio to the home theater.
• If the HDTV has a DVI connector, connect
using an HDMI/DVI adapter.
• If the TV supports EasyLink HDMI CEC,
control the home theater and TV with one
remote control (see ‘Use Philips EasyLink’ on
page 20 ).
TV
Back connectors
a AC MAINS~
Connects to the power supply.
b SPEAKERS
Connects to the supplied speakers and
subwoofer.
c DIGITAL IN-COAXIAL
Connects to the coaxial audio output on
the TV or a digital device.
d AUDIO IN -AUX 1 /AUX 2
Connects to the analog audio output on the
TV or an analog device.
e LAN
Connects to the LAN input on a broadband
modem or router.
f VIDEO OUT -VIDEO
Connects to the composite video input on
the TV.
g VIDEO OUT -Y Pb Pr
Connects to the component video input on
the TV.
h FM ANTENNA
Connects the FM antenna for radio
reception.
i HDMI OUT (ARC)
Connects to the HDMI input on the TV.
j DOCK for iPod
Connects to a Philips Dock for iPod/iPhone.
(Model: Philips DCK3060, sold separately)
k Wireless Rear Audio
Connects to a Philips wireless module.
(Model: Philips RWSS5510, sold separately.)
