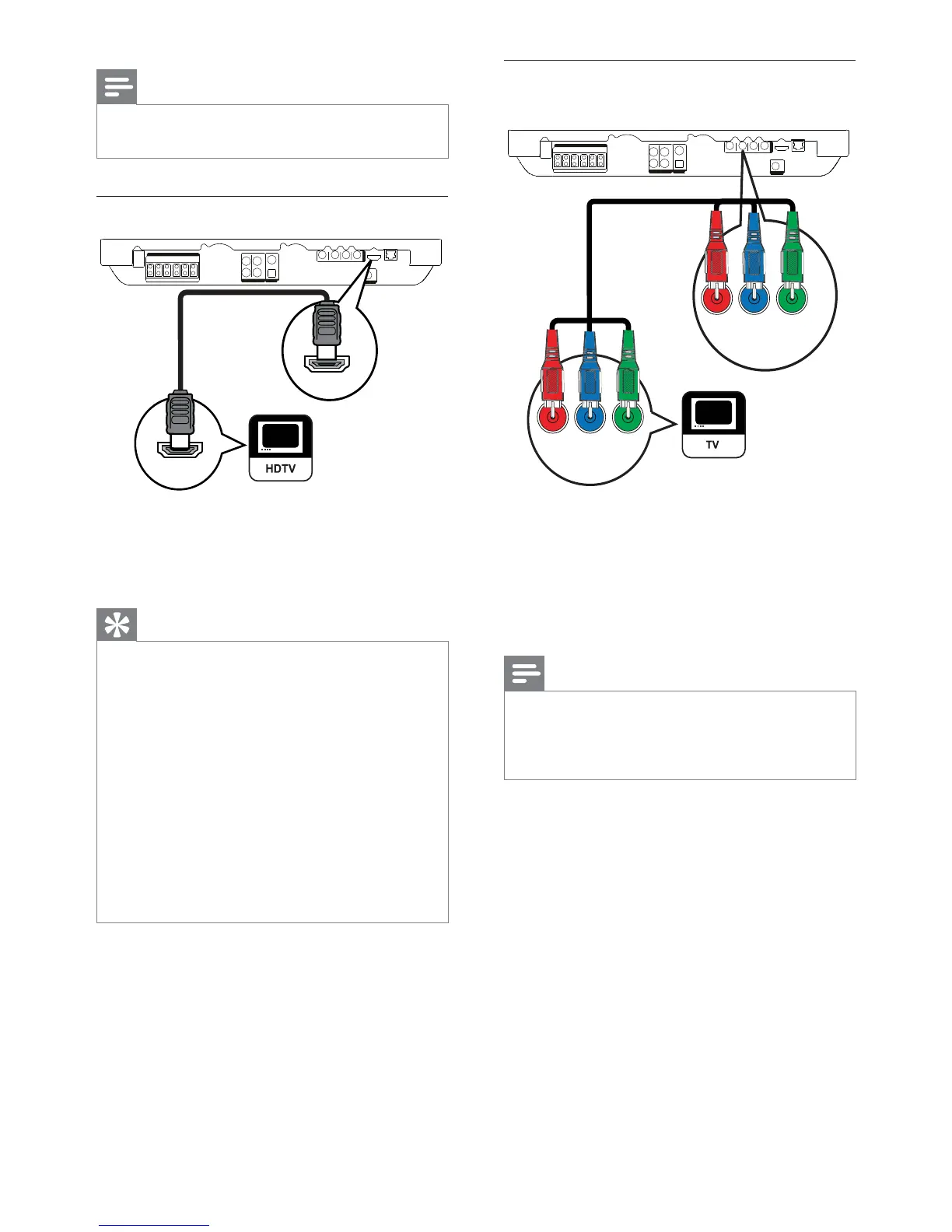

Option 2: Connect to the component
video jack
1 Connect the component video cable
(not supplied) to the Y Pb Pr jacks on
this Home Theater System and the
COMPONENT VIDEO input jacks on the
TV.
Note
The component video input jack on the TV •
might be labeled as Y Pb Pr , Y Cb Cr or YUV .
This type of connection provides good picture
•
quality.
VIDEO OUT
PbPr Y
PbPr Y
Note
You must connect this Home Theater System •
directly to a TV.
Option 1: Connect to the HDMI jack
1 Connect the HDMI cable to the HDMI
OUT jack on this Home Theater System
and the HDMI input jack on the TV.
Tip
If the TV has a DVI connector only, connect via •
an HDMI/DVI adaptor. Connect an audio cable
for sound output.
You can optimize the video output. Press
•
HDMI repeatedly to select the best resolution
the TV can support.
To play back the digital video images of a BD-
•
video or DVD-video via an HDMI connection,
it is necessary that both the Home Theater
System and the display device support a
copyright protection system called HDCP
(high-bandwidth digital content protection
system).
This type of connection provides best picture
•
quality.
HDMI OUT
HDMI IN
