14
For HTS7520

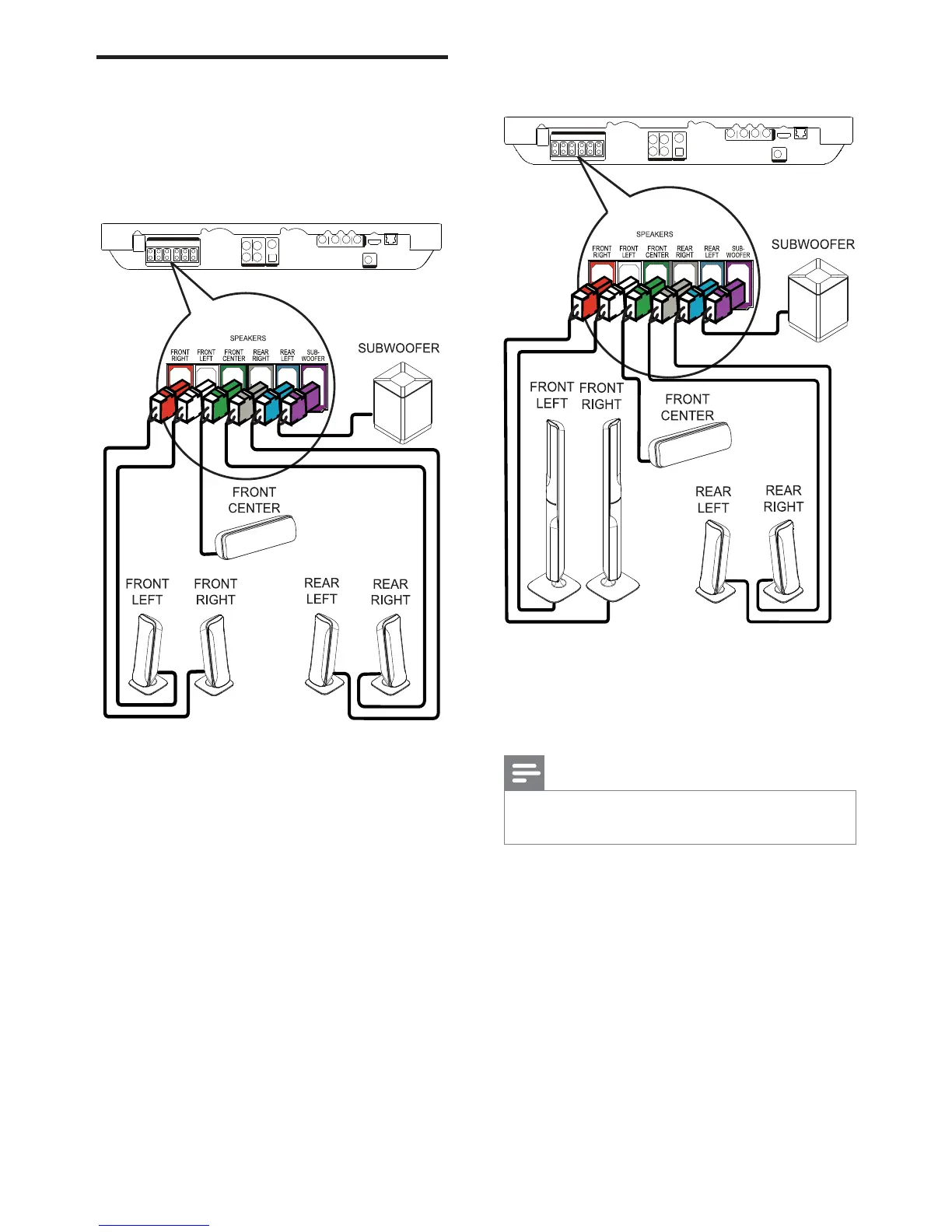

1 Connect the speakers and subwoofer to
the matching jacks on this Home Theater
System.
Note
Ensure that the colors of the plugs and jacks •
are matched.
Connect speakers and
subwoofer
For HTS7500 and HTS7540 (HTS7540 has a
different set of speakers)
EN
