6 Installing E25 Installation Instructions
22
2

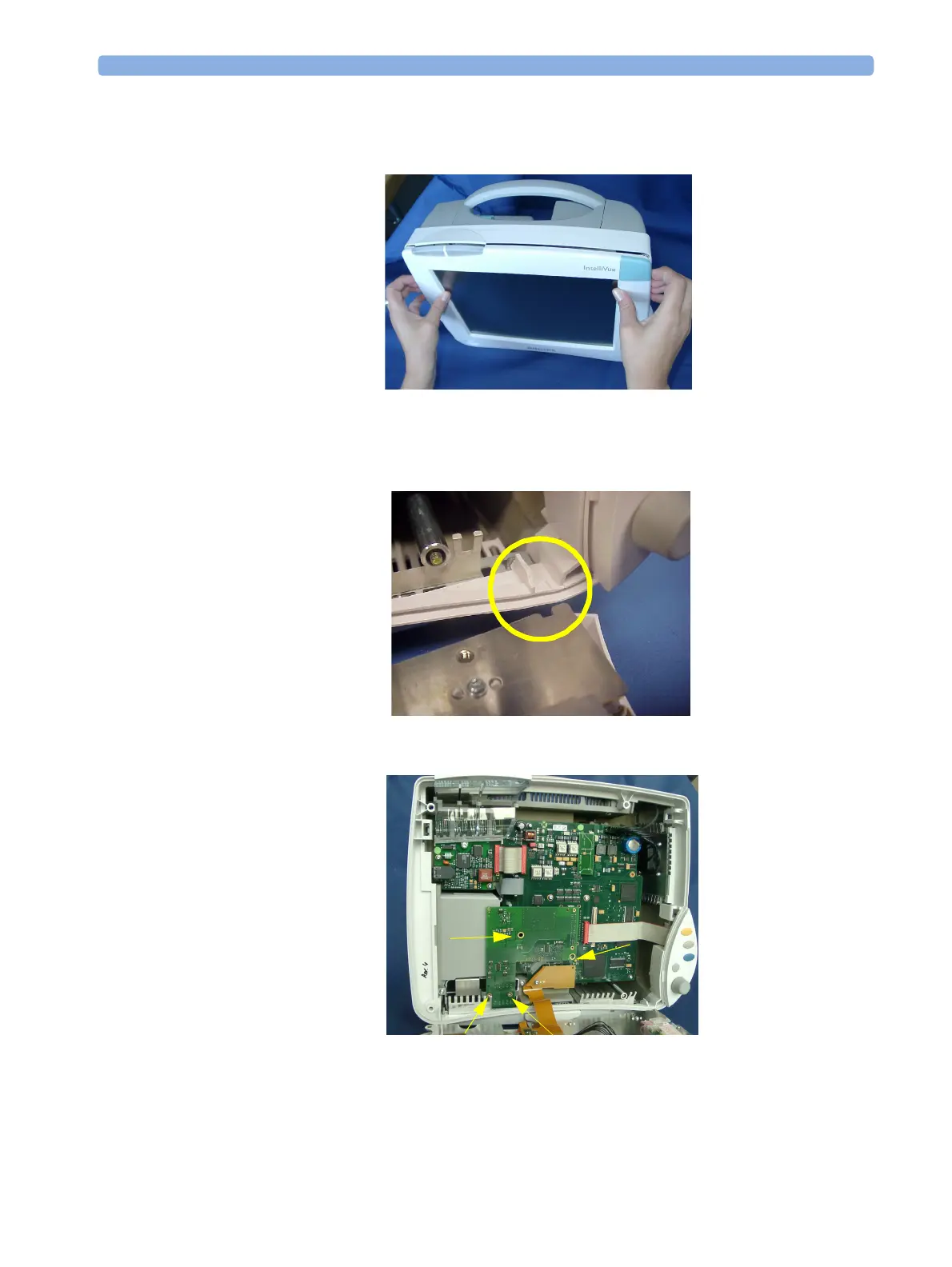

Pull off the front housing. Do not pull the display off completely, only tilt it to the front, because
otherwise the flex panel adapter could be damaged.
Reassembly Note: Make sure the metal sheet on the back of the display is inserted into the noses of the
monitor rear housing when reassembling the two halves.
3 Attach the battery board to the main board with 4 screws.
Battery Board
long
screw
long
screw
short screws
To Next Page
