Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point

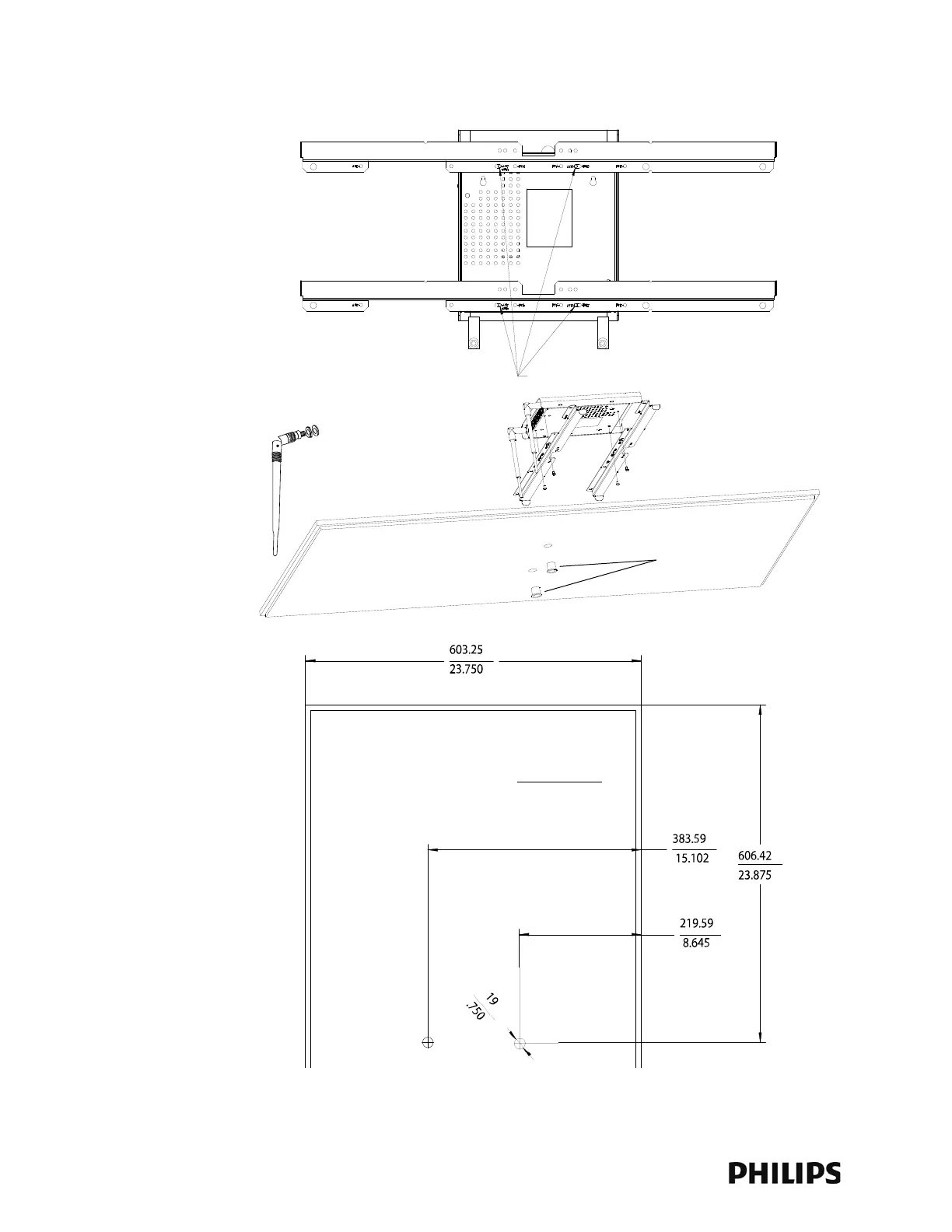

Figure 2-9: Alternative Above the Ceiling Core AP Mounting Position
Use These Holes Marked AM4
Grommets
Bend Down
Tighten Collar
Units: millimeters
inches
