EN 2 LC4.41E AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : Plasma
Screen size : 42” (107 cm), 15:9
Resolution (HxV pixels) :
- 42PF3321/10 : 852 x 480
- 42PF5321/10/12 : 852 x 480
- 42PF5411/10 : 852 x 480
- 42PF7321/10/12 : 1024 x 768
Contrast ratio (typical) :
- 42PF3321/10 : 3000:1
- 42PF5321/10/12 : 7000:1
- 42PF5411/10 : 7000:1
- 42PF7321/10/12 : 7000:1
Light output (cd/m
2
):
- 42PF3321/10 : 1000:1
- 42PF5321/10/12 : 1100:1
- 42PF5411/10 : 1100:1
- 42PF7321/10/12 : 1100:1
Viewing angle (HxV degrees) : 160 x 160
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Video playback : NTSC M/N 3.58, 4.43
: PAL B/G
: SECAM L/L’
Supported computer formats : VGA (640x480)
: MAC (640x480)
: SVGA (800x600)
: XVGA (1024x768)
Supported video formats : 640x480p - 2fH
: 720x576p - 2fH
: 1280x720p - 3fH
: 1920x1080i - 2fH
Presets/channels : 100 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
1.1.2 Sound
Sound systems : NICAM B/G, D/K, I, L
: AV Stereo
Maximum power (W
RMS
) : 2 x 15
1.1.3 Miscellaneous
Power supply:
Mains voltage (V
AC
) : 220 - 240
Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption:
Normal operation (W) : 220
Stand-by (W) : < 2
Dimensions (WxHxD cm):
- 42PF3321/10 : 123.6 x 67.9 x 10.3
- 42PF5321/10/12 : 123.6 x 67.9 x 10.3
- 42PF5411/10 : 123.6 x 67.9 x 10.3
- 42PF7321/10/12 : 124.9 x 68.8 x 11.1
Weight (kg):
- 42PF3321/10 : 39.2
- 42PF5321/10/12 : 39.2
- 42PF5411/10 : 39.2
- 42PF7321/10/12 : 42.0
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side I/O connections

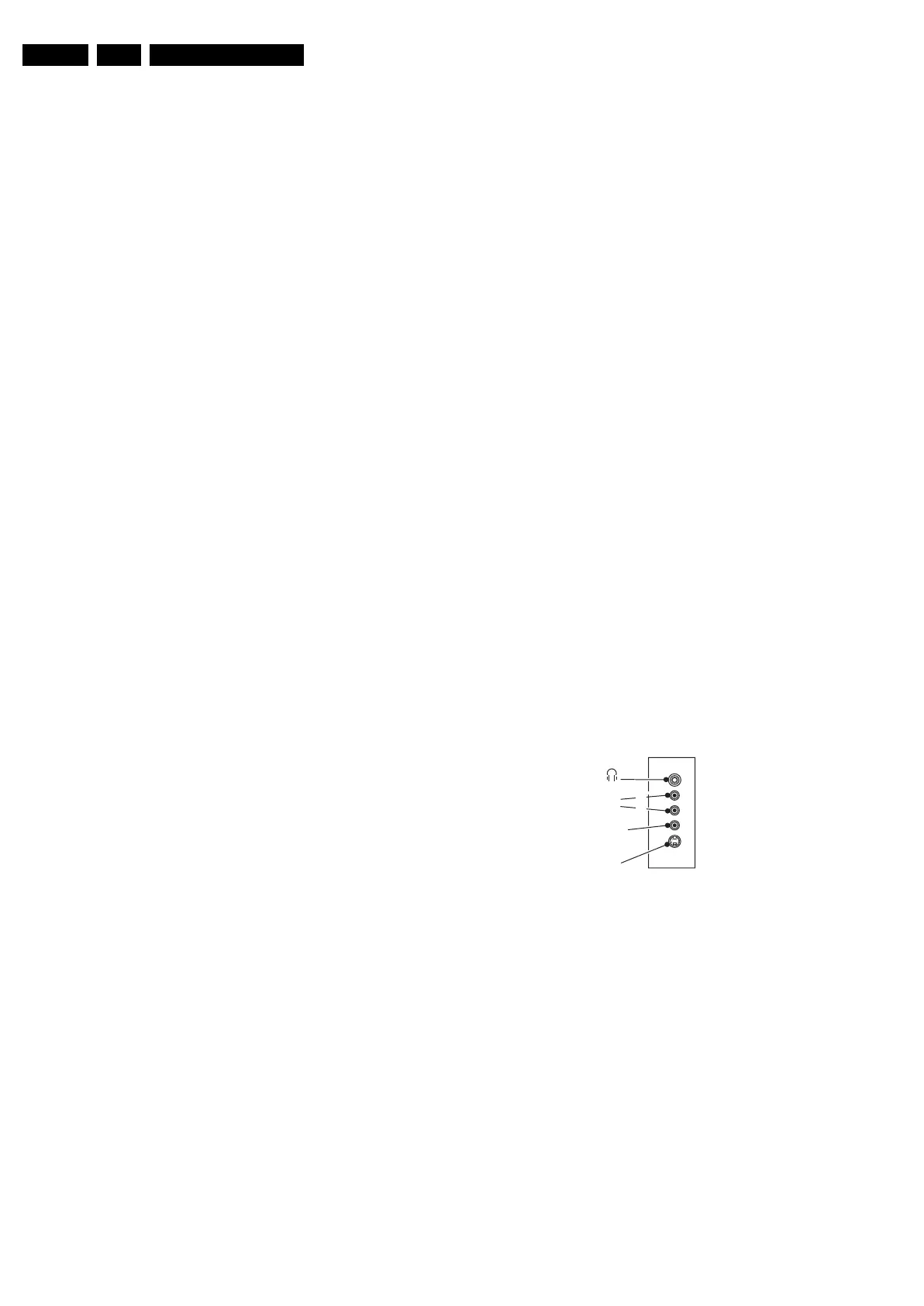

Figure 1-1 Side I/O connections
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW ot
L
R
Audio
S-Video
Video
G_16210_070.eps
190106
