Service Modes, Error Codes, and Fault Finding
EN 17LC7.1E LA 5.
Display Option Code Selection
When after a display exchange, the display option code is not
properly set, it will result in a TV with “no display”. Therefore, it
is required to set this display option code after such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type (see first
column in table “Display Code Overview” or sticker on the side/
bottom of the cabinet). When the value is properly accepted
and stored in NVM, the set will switch to Stand-by, to indicate
that the process has been completed successfully.

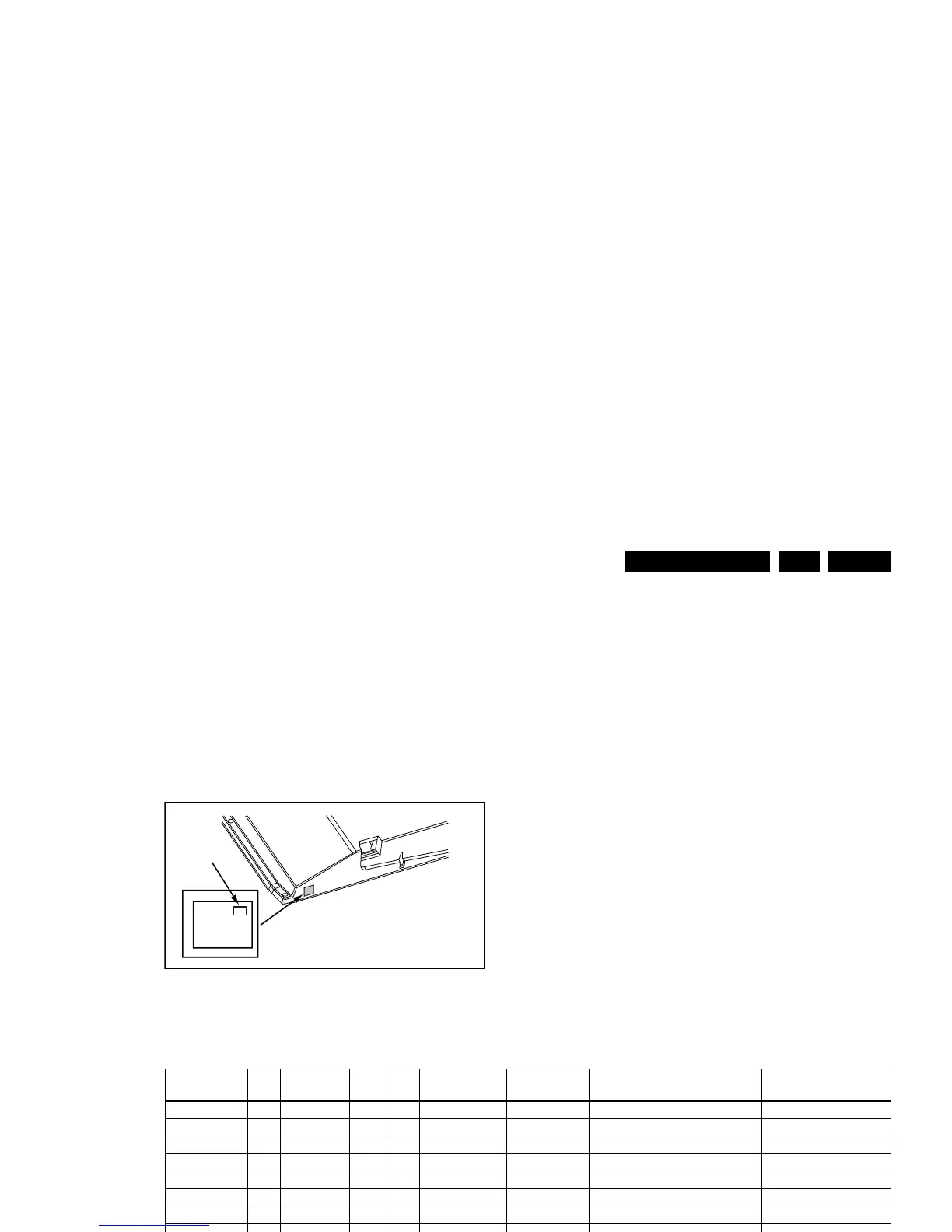

Figure 5-1 Location of Display Option Code sticker
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB-
related (e.g. Model and Prod. S/N). Therefore, “Model” and
“Prod. S/N” data is changed into “See Type Plate”.
In case a call centre or consumer reads “See Type Plate” in
CSM mode, he needs to look to the side/bottom sticker to
identify the set, for further actions.
Table 5-1 Display option code overview
PHILIPS
MODEL:
32PF9968/10
PROD.SERIAL NO:
AG 1A0620 000001
040
39mm
27mm
(CTN Sticker)
Display Option
Code
E_06532_038.eps
290107
Display
option HEX
Display
type Brand Size
Vert.
resolution
Hor.
resolution Type number 12 NC
045 2D LCD LPL 26 768p 1366 LC260WX2-SLB2 9322 234 13682
046 2E LCD LPL 32 768p 1366 LC320W01-SL06 9322 230 03682
068 44 LCD CMO 26 768p 1366 V260B1-L03 9322 249 37682
069 45 LCD CMO 32 768p 1366 V315B1 L05 9322 248 65682
070 46 LCD CPT 32 768p 1366 CLLAA320WB02P 9322 245 31682
071 47 LCD LPL 37 768p 1366 LC370WX1-SLB1 9322 246 96682
072 48 LCD AUO 37 768p 1366 T370XW02V5 9322 249 77682
073 49 LCD LPL 42 768p 1366 LC420WX3-SLA1 9322 246 97682
076 4B LCD AUO 42 768p 1366 T420XW01V8 9322 249 10682
083 53 PDP SDI 42 768p 1024 S42AX-YD04(PS-426-PH) 9322 246 76682
085 55 PDP SDI 50 768p 1366 S50HW-YD05(PS-506-PH) 9322 246 81682
091 5B LCD AUO 32 768p 1366 T315XW02VD 9322 249 06682
093 5D LCD LPL 42 1080p 1920 LC420WU2-SLA1 9322 246 84682
103 67 LCD LPL 20 480p 640 LC201V02-SDB1 9322 242 65682
105 69 LCD CMO 19 900p 1440 TPM190A1-L02 9965 000 43654
106 6A LCD AUO 23 768p 1366 T230XW01V3 9322 249 79682
107 6B LCD LPL 42 768p 1366 LC420WX5-SLD1 9322 249 09682
