Philips LC7.1E User Manual

Block Diagrams, Test Point Overview, and Waveforms
27LC7.1E LA 6.
6. Block Diagrams, Test Point Overview, and Waveforms

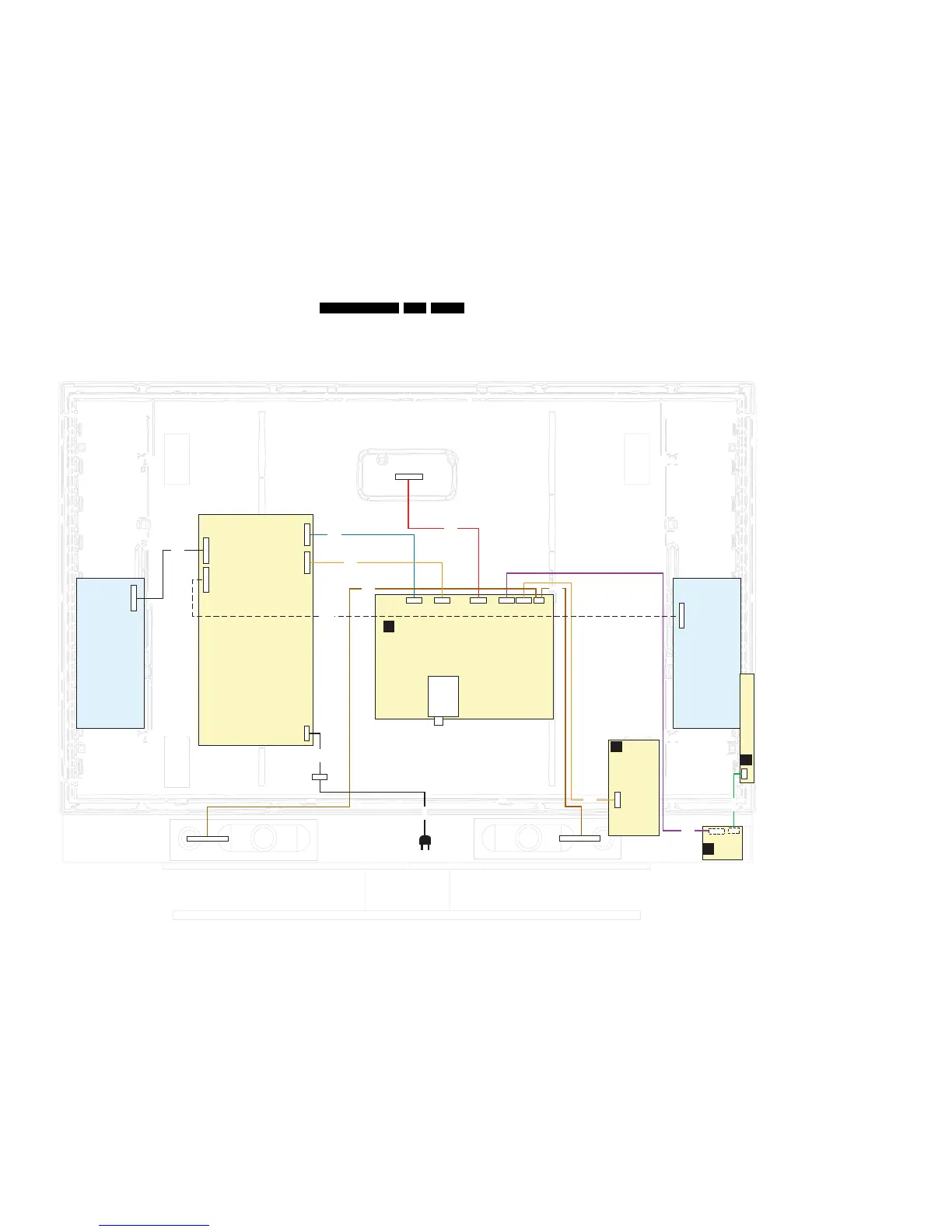

Wiring Diagram 32”
1304
11P
1G51
30P
1735
4P
1M20
7P
1C01
9P
1M01
3P
1M20
7P
1304
11P
CN1
2P3
INLET
CN7
8P
CN2
14P
CN3
12P
WIRING 32” LCD (STYLING ME7)
CN2
14P
CN3
12P
G_16860_034.eps
200207
RIGHT SPEAKER
LEFT SPEAKER
B
SSB
E
KEYBOARD CONTROL
D
SIDE I/O
J
IR/LED/LIGHT
SENSOR
8304
8M20
8C01
8735
8735
8521
8520
8002
CN6
9P
1M01
3P
8M01
LV DS
30P
1P11
8P
8P11
8G51
SUPPLY
INVERTER INVERTER
8191
8192(UK)
(1005)
(1116)
(1114)
(1112)
LCD DISPLAY
(1004)
