EN 3LC7.1E LA 1.
1.2 Connection Overview

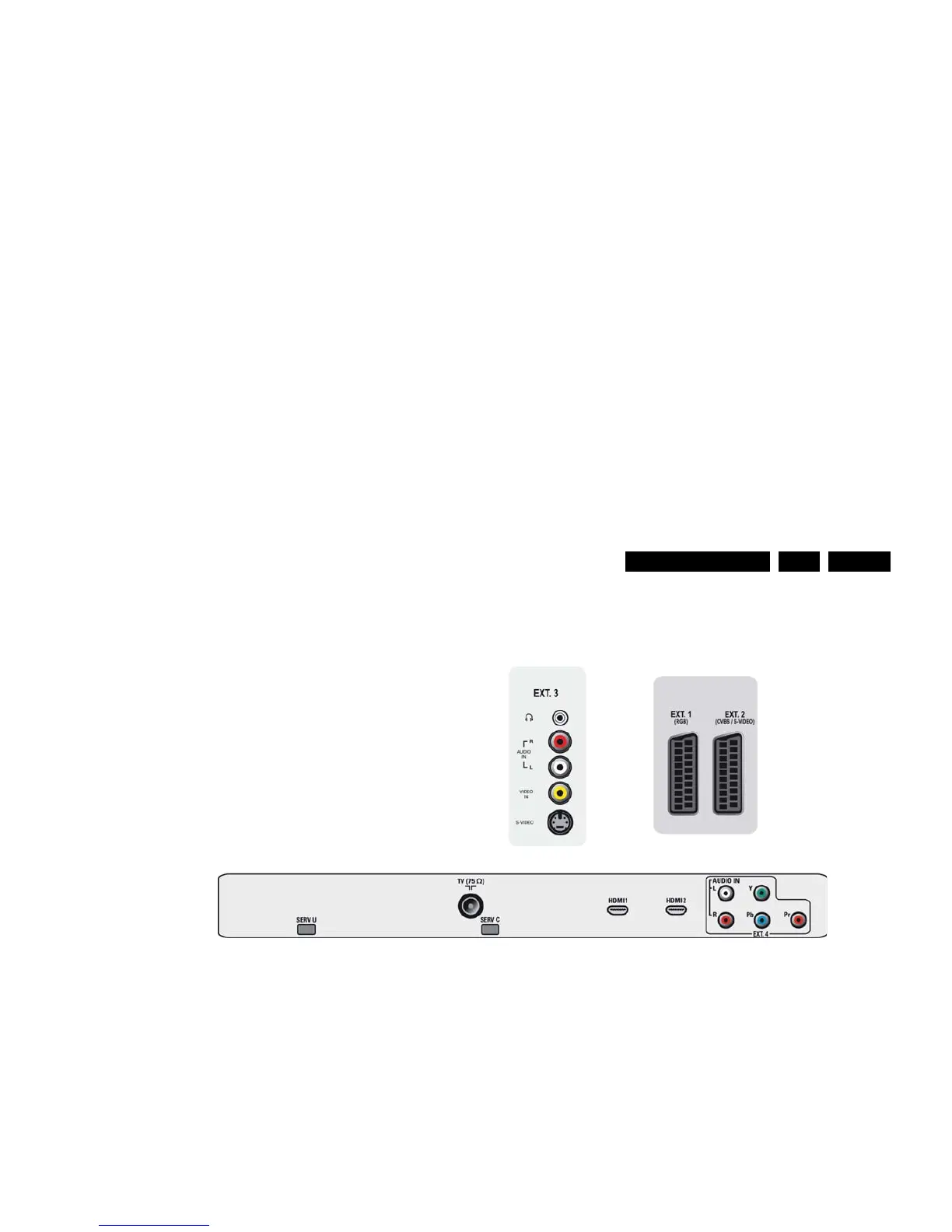

Figure 1-1 Side and rear I/O connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side Connections
EXT3: Headphone - Out
Bk - Headphone 32 - 600 ohm / 10 mW rt
EXT3: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
EXT3: S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
1.2.2 Rear Connections
EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 1-2 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - Video Green 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
EXT2: Video YC - In, CVBS - In/Out, Audio - In/Out
Figure 1-3 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5-n.c.
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - C-out 0.7 V
PP
/ 75 ohm k
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9-n.c.
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - n.c.
12 - n.c.
13 - n.c.
14 - Ground P50 Gnd H
15 - C 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
H_16940_005.eps
270207
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
