Philips MCD139 - Amplifier Board PCB Layouts

7-3 7-3

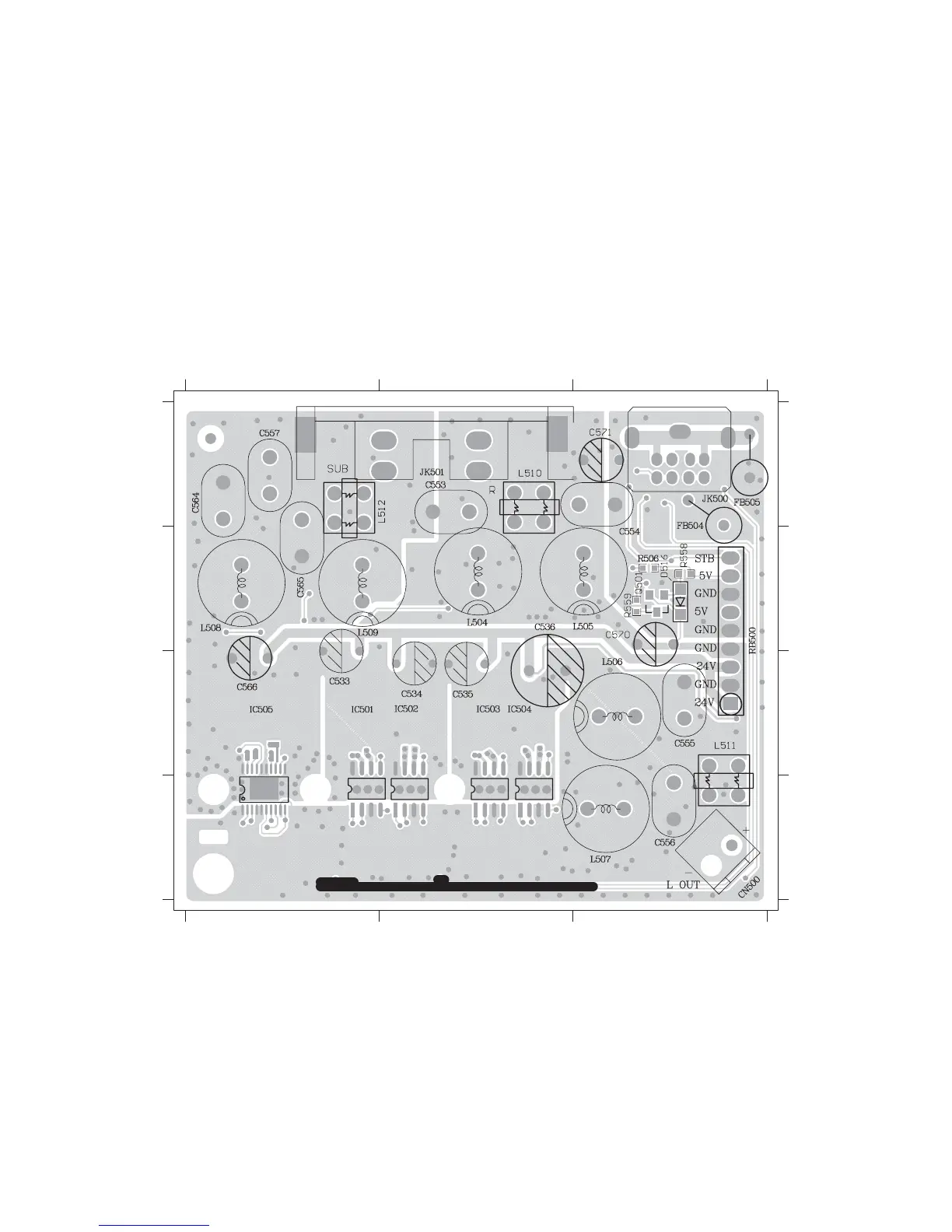

PCB LAYOUT -AMPLIFIER TOP BOARD
123
123
A
B
C
D
A
B
C
D
C533 C1
C534 C2
C535 C2
C536 B2
C553 A2
C554 A3
C555 C3
C556 D3
C557 A1
C564 A1
C565 B1
C566 C1
C570 B3
C571 A3
CN500 D3
D516 B3
IC501 C1
IC502 C2
IC503 C2
IC504 C2
IC505 C1
JK500 A3
JK501 A2
L504 B2
L505 B3
L506 C3
L507 D3
L508 B1
L509 B1
Q501 B3
R506 B3
R558 B3
R559 B3
RB500 B3
