Philips MCD149 - Disassembly Procedures; Cover and Front Assembly Removal; Board and Mechanism Removal

4 - 1
4 - 1

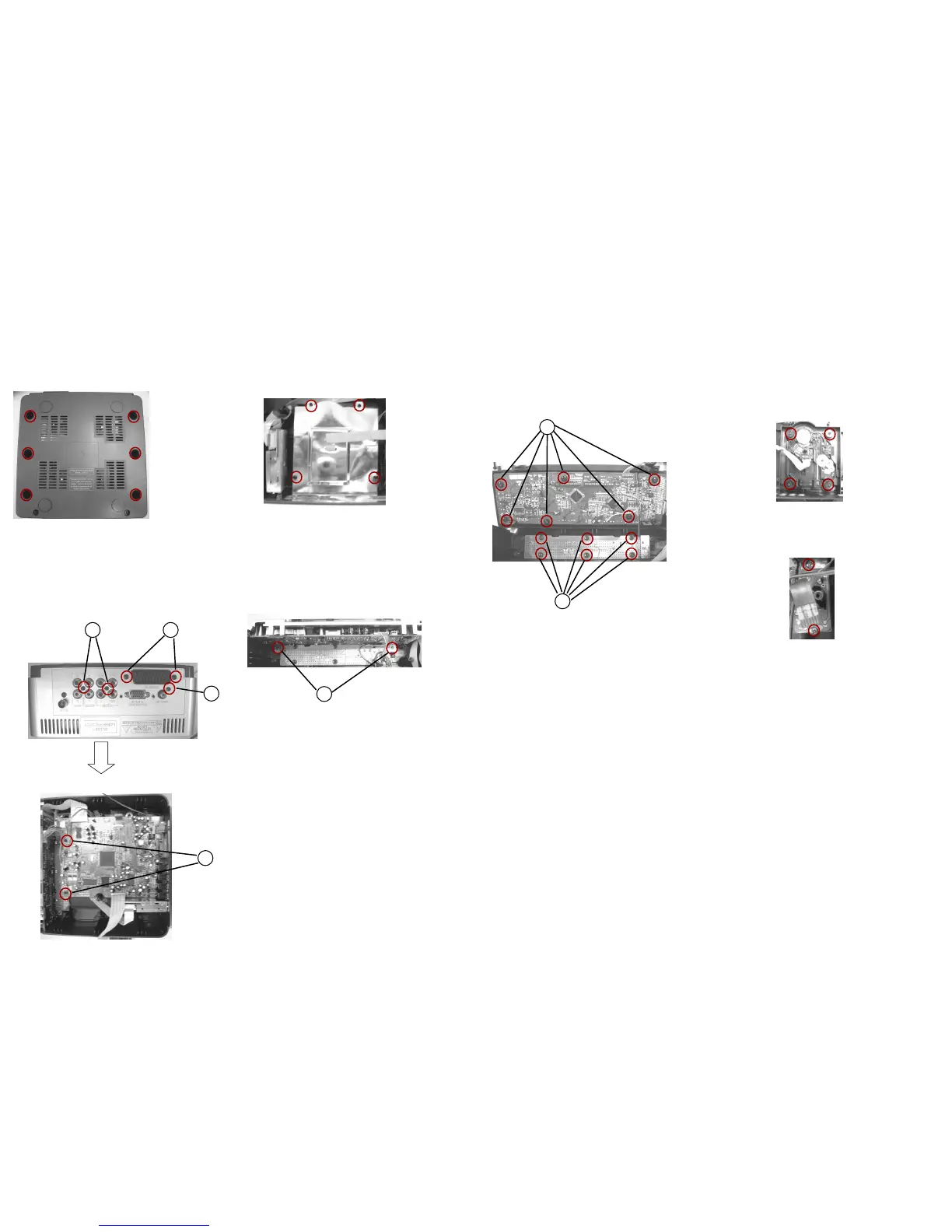

DISASSEMBLY DIADRAMS
A. Remove Bottom CAB
Remove screws 3x12 - 6 pcs
D
E1
E2
C. Remove Dust cover
Remove screws 2x8 - 4 pcs.
D. Remove Front assembly
Remove screws 2x8 - 2 pcs.
E. Remove Display & Key board
E1: Remove screws 3x10 - 6 pcs.
E2: Remove screws 2x8 - 6 pcs.
F. Remove CD mechanism
Remove screws 3x10 - 4 pcs.
B. Remove Scart board & Main board
B1:Remove screws 2x15 - 2 pcs.
B1
B2:Remove screws 3x8 - 1 pcs.
B2
B3:Remove screws 3x10 - 2 pcs.
B3
B4:Remove screws 3x10 - 2 pcs.
B4
G. Remove USB Jack board
