FM Antenna
It is unnecessary to connect the FM pigtail
antenna since it is fixed to the main unit.
Adjust the FM antenna for optimal FM stereo
reception.
Step 4: Connecting TV
IMPORTANT!
–You only need to make one video
connection from the following options,
depending on the capabilities of your TV
system.
– Connect the DVD system directly to
the TV.
Using Video In jack (CVBS)
LINE OUT
R
NI
X
UA
L
R L
O
E
DIV-S
VIDEO OUT
t
uo
ref
oo
W-b
u
S
COAXIAL
FM AERIAL
AM AERIAL
Use the composite video cable (yellow) to
connect the system's VIDEO jack to the video
input jack (or labelled as A/V In, Video In,
Composite or Baseband) on the TV set.
Connections
Step 2: Connecting speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", coloured (marked) wire to
"+" and black (unmarked) wire to "-". Fully insert
the stripped portion of the speaker wire into
the terminal as shown.
Notes:
- Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
-For optimal sound performance, use the
supplied speakers.
- Do not connect more than one speaker to any
one pair of +/- speaker terminals.
-Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.

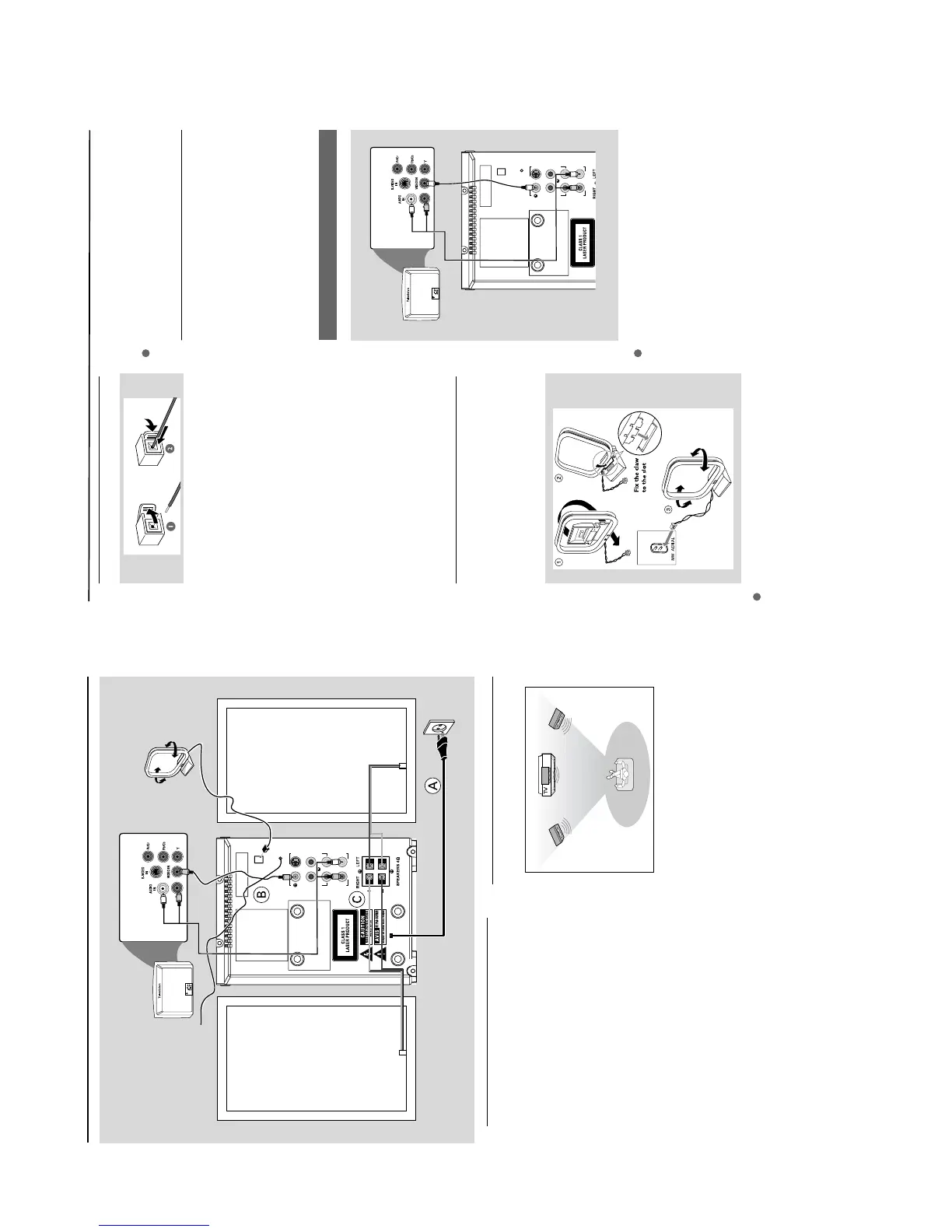

Step 3: Antenna connection
MW Antenna
Connect the supplied MW loop antenna to the
"MW AERIAL" terminal. Adjust the position of
the antenna for optimal reception.
Position the antenna as far as possible from a TV,
VCR or other radiation source.
Connections
Step 1: Placing speakers
Front
speaker
( left )
Front
speaker
( right )
VIEWING AREA
Place the front left and right speakers at equal
distances from the TV set and at an angle of
approximately 45 degrees from the listening
position.
Notes:
-To avoid magnetic interference, do not position the
front speakers too close to your TV set.
-Allow adequate ventilation around the DVD
System.
IMPORTANT!
-The type plate is located at the rear of
the system.
-Before connecting the AC power cord to
the wall outlet, ensure that all other
connections have been made.
-Never make or change any connections
with the power switched on.
To avoid overheating of the system, a
safety circuit has been built in. Therefore,
your system may switch to Standby
mode automatically under extreme
conditions. If this happens, let the system
cool down before reusing it (not available
for all versions).
speaker
(right)
speaker
(left)
AC power cord
FM wire antenna
MW loop
antenna
LINE OUT
R
N
I
X
U
A
L
R L
OE
DIV-S
VIDEO OUT
t
u
o
ref
o
o
W-
b
uS
COAXIAL
FM AERIAL
AM AERIAL
