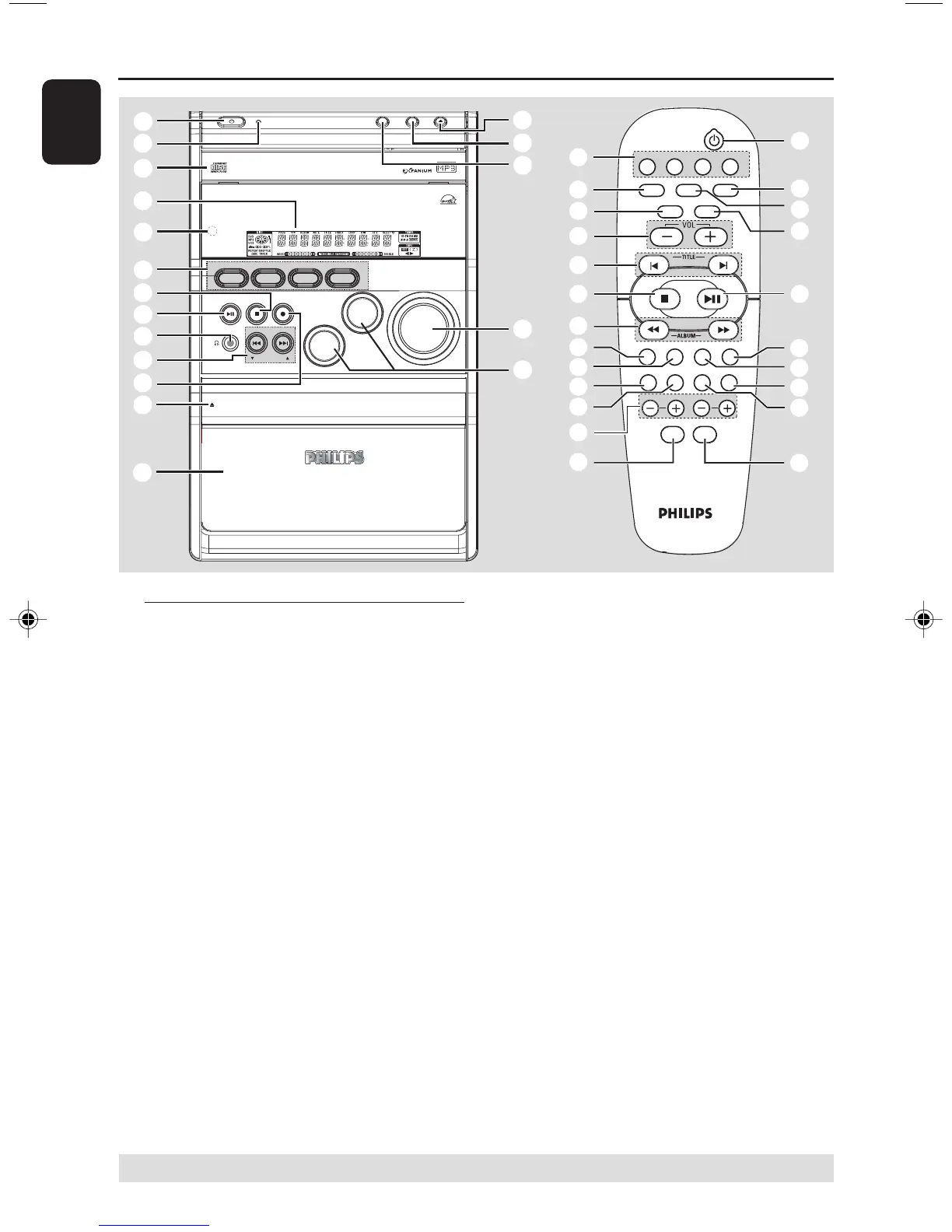

Functional Overview
Main unit and remote control
1 STANDBY ON B
– Switches to Eco Power standby mode or turns
on the system.
– *Switches to standby mode.
2 ECO POWER indicator
– Lights up when the system is in Eco Power
standby mode.
3 Disc tray
4 Display screen
5 iR
–Point the remote control towards this sensor.
6 CD / TUNER / TAPE /AUX
– Selects the relevant active mode.
– CD: switches to CD mode.
– TUNER: toggles between FM and MW band.
– TAPE: switches to Tape mode.
– AUX: toggles between AUX and CDR mode.
≤
£
!
™
^
$
∞
6
)
%
¡
7
≥
ª
•
º
§
8
›
CD TUNER TAPE AUX
REPEAT PROGRAM SHUFFLE
TAP E A/R DISPLAY
CLOCK TIMER TIMER ON/OFF NATURAL
REC DIM SLEEP SNOOZE
BASS TREBLE
INC. SURR
MUTE
(
‹
¤
⁄
* = Press and hold the button for more than two seconds.
MP3
-
CD /CD
-
R/CD
-
RW COMPATIBLE
MICRO SYSTEM
LOGIC DECK
AUTO REVERSE
CD
TUNER TAPE
AUX
TREBLE•
•BASS
DEMO STOP REC
MASTER VOLUME
IR
CLOCK
RDS/
NEWS
STANDBY-ON
ECO POWER
OPEN
/
CLOSE
OPEN
/
CLOSE
TUNING
ALBUM / TITLE
PLAY/ PAUSE
1
3
5
4
6
8
7
9
0
@
!
#
*
&
^
%
$
2
7 DEMO STOP Ç
– Exits an operation.
– CD: stops playback or clears a programme.
– TUNER: *erases a preset radio station.
– TAPE: stops playback or recording.
(only on the main unit)
– *Tu r ns on /off the demonstration mode.
8 ÉÅ
– CD: starts/pauses playback.
– TAPE: starts playback or selects other side of the
tape during playback.
– CLOCK: toggles between hour and minutes
setting.
(only on the main unit)
– TUNER: *enters Plug & Play mode and/or starts
preset radio station installation.
9 n
– Plug in the headphones jack. The speakers
output will be cancelled.
001-025-MCM5-22-Eng 4/8/04, 12:348
