Philips MRV640 - Waveforms Analog Board, uPC Sub PWB

EN 70DVDR615, MRV640 6.
Block Diagrams, Waveforms, Wiring Diagram.

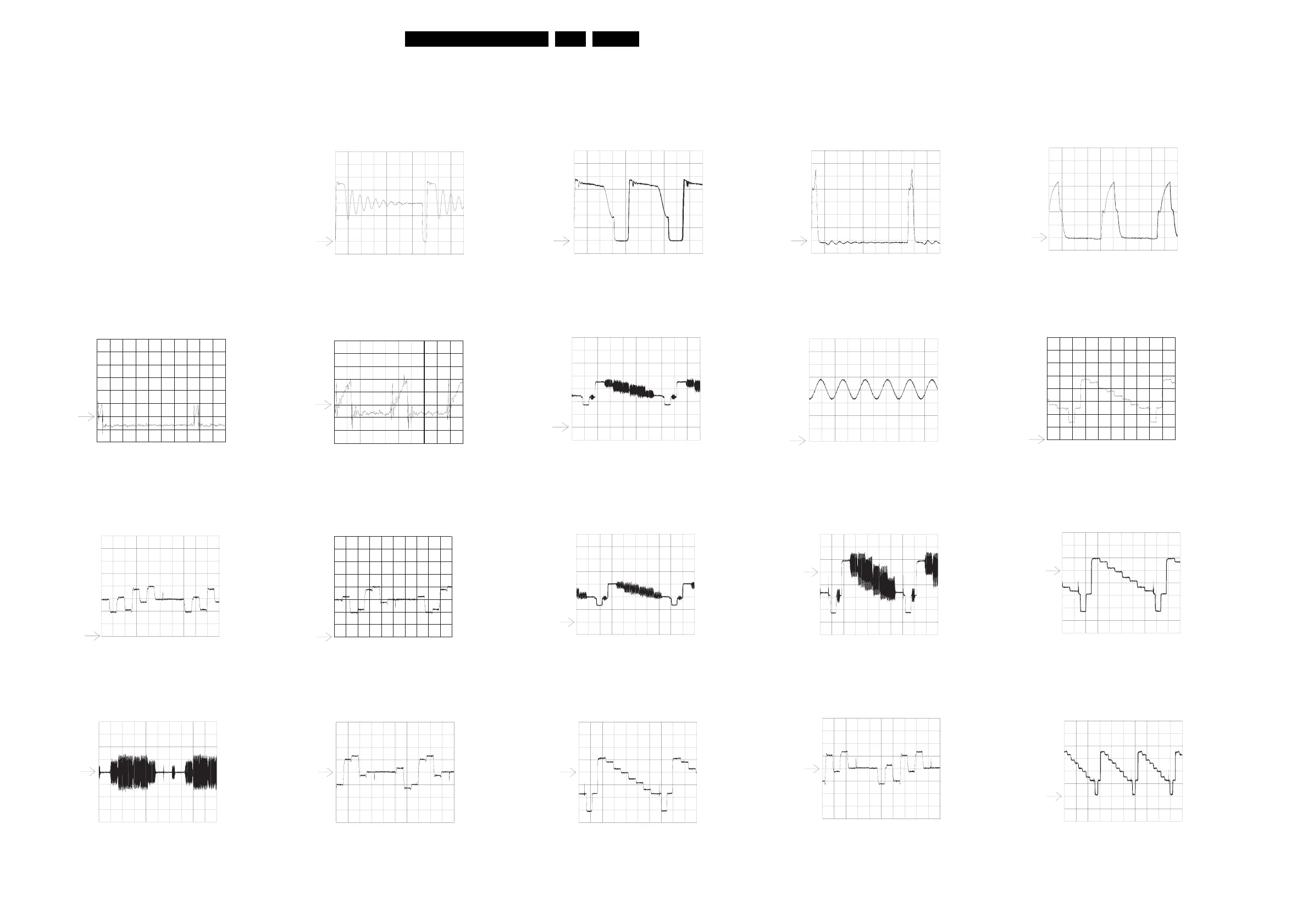

Waveforms
A: DC, 2 V/Div
2us/Div
VGate I324 (no disc loaded) (110V)
A: DC, 50mV/Div
5us/Div
VSource I325 (Standby) (110V)
A: DC, 50mV/Div
2us/Div
VSource I325 (No disc loaded) (110V)
A: DC, 500mV/Div
10us/Div
YOut I461
A: DC, 500mV/Div
10us/Div
VID_OUT I701
A: DC, 500mV/Div
200us/Div
AMCO I705
A: DC, 50 V/Div
5us/Div
VDrain F327 (Standby) (110V)
A: DC, 50 V/Div
2us/Div
VDrain F327 (no disc loaded) (110V)
A: DC, 1 V/Div
5us/Div
VGate I324 (Standby) (110V)
Waveforms Analog Board, uPC Sub PWB
TR 02003_001
030602
A: DC, 500mV/Div
10us/Div
VOut I462
A: DC, 500mV/Div
10us/Div
UOut I463
A: DC, 500mV/Div
10us/Div
A_YCVBS F4709
A: DC, 200mV/Div
10us/Div
D_CVBS F4712
A: DC, 200mV/Div
10us/Div
D_Y F4714
A: DC, 200mV/Div
10us/Div
D_C F4716
A: DC, 200mV/Div
10us/Div
D_VR F4718
A: DC, 200mV/Div
10us/Div
D_YG F4720
A: DC, 200mV/Div
10us/Div
D_UB F4722
A: DC, 500mV/Div
10us/Div
Y I419
