Replacing Fuses
PDS-150ehasthreefuses,eachofwhichprotectstwofixtureinputsfromexcessive
current.ThreeextrafusesareincludedintheboxwitheachPDS-150edevice.
Alwaysuse4amp,250VACfuses.
1. Makesurethatthedevice’spowerisOFF.
2. UsingaPhillipsscrewdriver,unscrewtheeightscrewsholdingthecoverinplace.
Removethedevicecover.

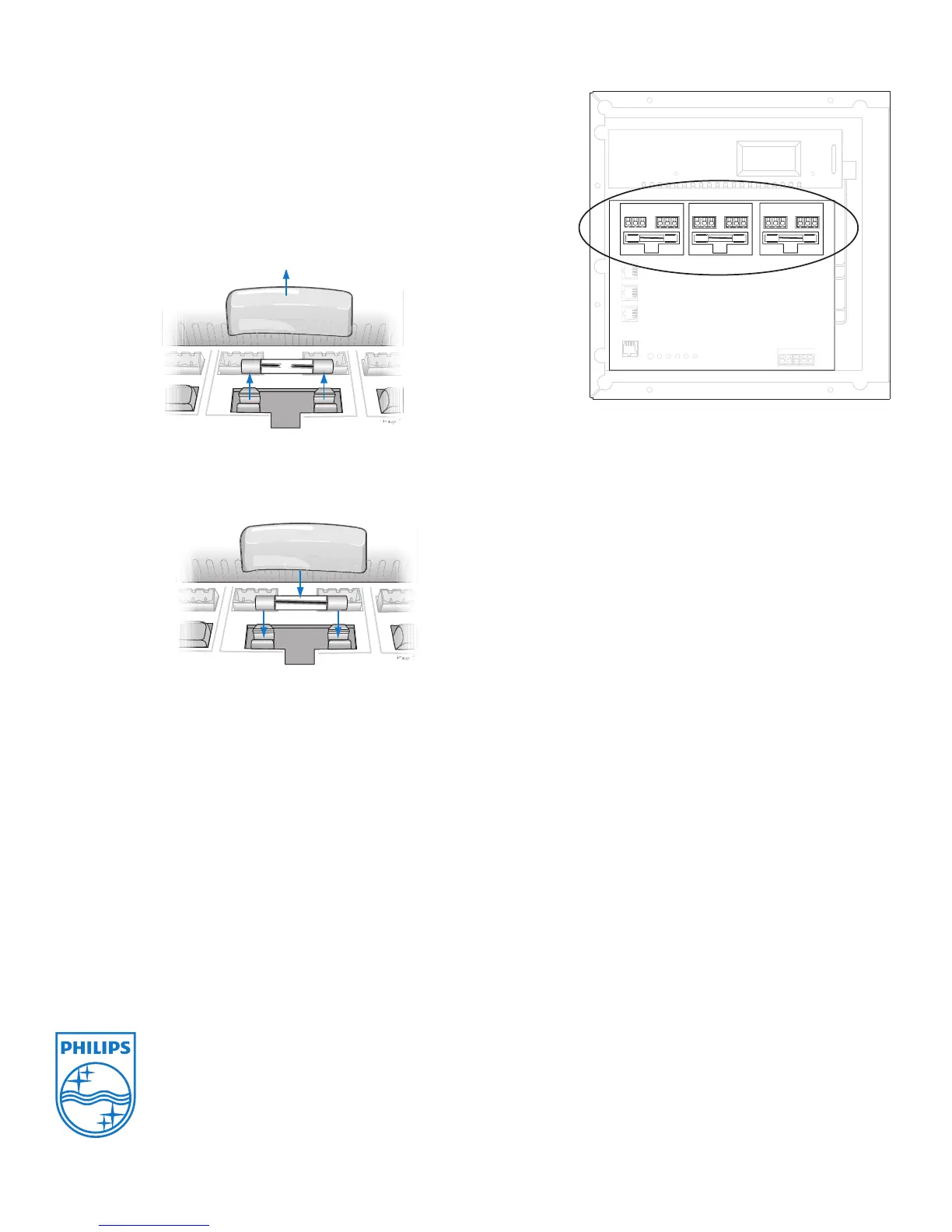

3. Pulltheclearrubberprotectivecoverfromthefuseyouwishtoreplace.
4. Removethefusefromitsmetalclips.
5. Replacewithanew4amp,250VACfuse.
6. Replacetherubberprotectivecoveroverthefuseandclips.
7. Replacethedevice’scoverandsecureitwiththeeightcoverscrews.
