145

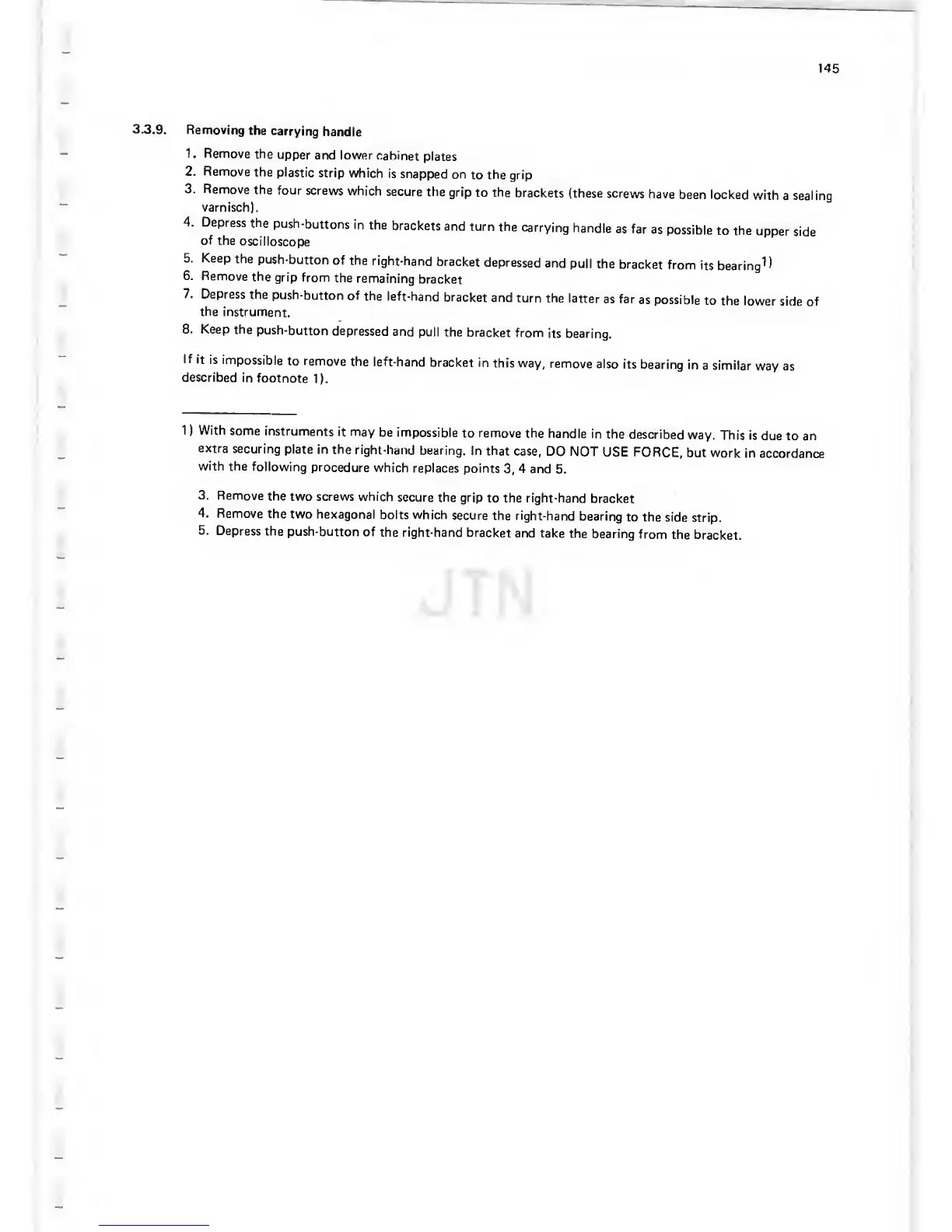

3.3.9.
Removing
the
carrying
handle
1 . Remove
the
upper
and lower
cabinet
plates
2. Remove
the
plastic
strip
which
is
snapped
on
to
the
grip
3.
Remove
the
four
screws
which
secure
the
grip
to the
brackets
(these
screws
have
been
locked
with
a
sealing
varnisch).
4.
Depress
the
push-buttons
in
the
brackets
and
turn
the
carrying
handle
as far
as
possible
to the
upper
side
of
the
oscilloscope
5. Keep
the
push-button
of
the
right-hand
bracket
depressed
and
pull
the
bracket
from
its
bearing^)
6.
Remove
tbe
grip
from
the
remaining
bracket
7. Depress
the
push-button
of
the
left-hand
bracket
and
turn the
latter
as far
as
possible
to the
lower
side
of
the
instrument.
8. Keep the
push-button
depressed
and
pull the
bracket
from
its
bearing.
If
it
is
impossible
to remove
the
left-hand
bracket in
this way,
remove
also its
bearing
in
a similar
way as
described
in
footnote
1).
1
)
With
some
instruments
it
may
be impossible
to remove
the handle
in
the
described
way.
This is
due to an
extra
securing
plate in
the
right-hand
bearing.
In
that
case, DO
NOT
USE FORCE,
but work
in
accordance
with the
following
procedure
which
replaces
points
3,
4
and
5.
3.
Remove
the
two screws which
secure
the grip
to the right-hand
bracket
4.
Remove
the
two hexagonal
bolts which
secure
the
right-hand
bearing
to the
side
strip.
5.
Depress
the
push-button
of
the right-hand
bracket
and take
the
bearing
from
the
bracket.
