ANT. IN
AC 120V
OR
OR
OR
ANT. IN
AC 120V
OR
UHF
VHF
300‰
75-300 ‰ ADAPTOR

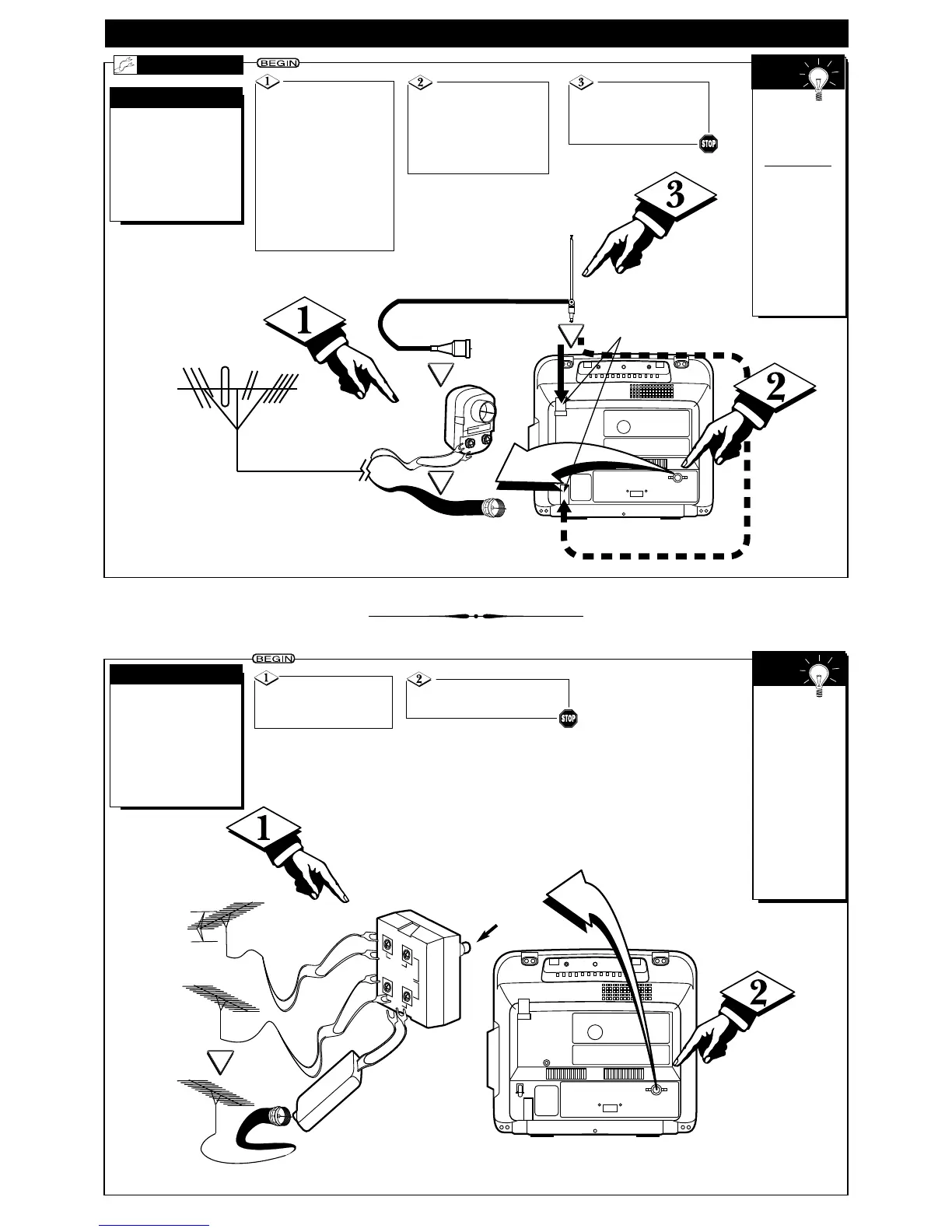

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS)
A
combination antenna or a
rod antenna (supplied)
receives normal broadcast
channels (VHF 2-13 and UHF
14-69). Your connection is easy
since there is only one 75Ω
(ohm) antenna jack on the
back of your TV - and that’s
where the antenna goes.
ANTENNA
COMBINATION UHF/VHF
To set the
TV to select only
the channel num-
bers in your area,
see Auto Install on
page 5.
If you install the TV
beneath a kitchen
cabinet, you may
push a rod antenna
into the antenna
hole on the bottom
of the TV cabinet
for the best use. See
page four for details
on how to install
the TV under a
kitchen cabinet.
SMART
HELP
If you install a rod
antenna (supplied), push the
base of the antenna into the
antenna hole on either the left
or the bottom of the TV.
If your antenna has a
round connector (75Ω),
then you're ready to connect it
to the TV.
If your antenna has flat
twin-lead wire (300Ω), you
first need to attach the antenna
wires to the screws on a 300
to 75Ω adaptor.
Push the round end of
the adaptor (cable or rod
antenna) onto the
ANT(enna) IN jack on the
back of the TV. If the round
end of the adaptor or cable is
threaded, screw it down tight.
Y
ou may have two separate
antennas. One antenna is
for VHF channels (2-13) and
the other antenna is for UHF
channels (14-69).
For homes with separate
UHF/VHF antennas, you will
need an optional combiner
before you can connect the
antennas to the TV.
SEPARATE UHF/VHF
300 to 75Ω
Adaptor
Combination
VHF/UHF
Antenna
(Outdoor or
Indoor)
Twin-lead
Wire
Round Cable
75Ω
Back of TV
Back of TV
U/V Combiner
(optional)
75-300Ω Adaptor
Outdoor UHF Antenna
(Twin-lead 300Ω)
Outdoor VHF
Antenna
(Twin-lead 300Ω)
Twin-lead
Wire
Push the round end of the
combiner onto the ANT(enna)
IN jack on the back of the TV.
Attach the separate
UHF and VHF antennas to
the correct screws on the
combiner.
Round
End
Outdoor VHF
Antenna
(Round cable 75Ω)
- 2 -
To order
any optional
accessory, contact
your dealer. Or,
call 1-800-851-8885
and refer to the fol-
lowing part num-
bers to order.
• UHF/VHF
Combiner:
4835 466 97016
• 75-300Ω
Adaptor:
M61009
• 300-75Ω
Adaptor:
4835 218 27003
SMART
HELP
If you installed a rod
antenna, extend the antenna
and adjust its length, direction,
and angle for the clearest pic-
ture.
Round Cable of
the Rod Antenna
Rod Antenna
(supplied)
Antenna Hole
