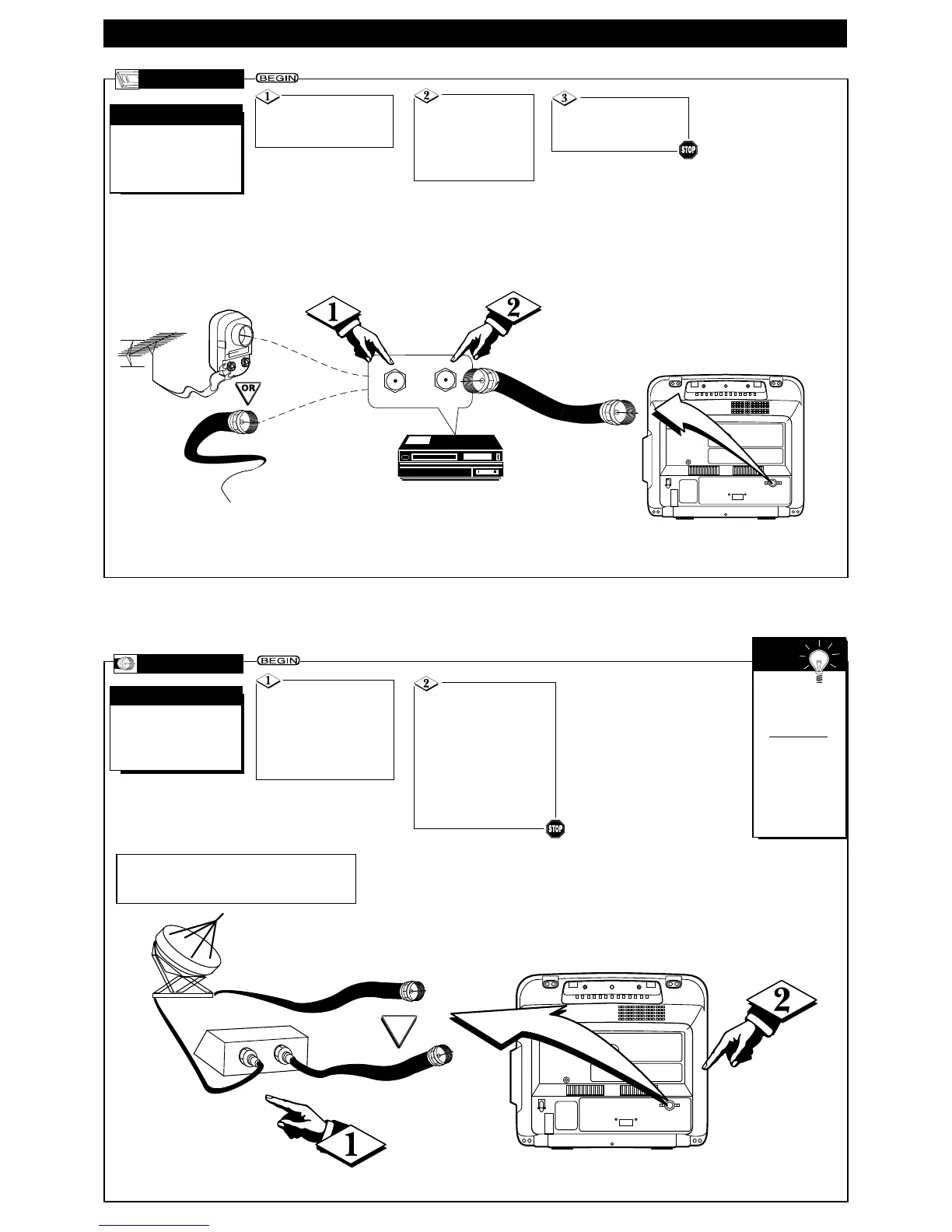

Y
our Cable TV signal may be
a single (75Ω) cable or a
Cable Box installation. In either
case, the connection to the TV
is very easy.
CABLE TV
CABLE/CABLE BOX
If you do not have a
Cable Box, then you're ready
to connect your Cable TV sig-
nal to the TV.
If you have a Cable Box:
Connect the Cable TV signal
to the IN jack on the Cable
Box.
If you do not have a
Cable Box, connect the
Cable TV signal to the
ANT(enna) IN jack on the TV.
If you have a Cable Box:
Use a coaxial cable to connect
the OUT jack of the Cable Box
to the ANT(enna) IN jack on
the TV.
NOTE: The coaxial cable
might be supplied by the Cable
TV company.
Back of TV
Coaxial cable
Cable Box
To select
only the channels on
your Cable system,
see Auto Install
(page 5).
If you use a Cable
Box, set the TV to
the same channel as
the CH 3/4 switch
on the back of the
Cable Box and
select channels at
the Cable Box.
SMART
HELP
Cable TV Company
Cable TV Signal (75Ω)
Note to the Cable TV System Installer: This reminder is provided to
call the Cable TV system installer’s attention to Article 820-40 of the
National Electrical Code, which provides guidelines for proper grounding - in
particular, specifying that the cable ground shall be connected to the ground-
ing system of the building, as close to the point of cable entry as possible.
HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS) (CONT’D)
T
he basic Antenna/Cable to
VCR to TV connection is
shown here. If you have a Cable
Box, refer to the VCR owner’s
manual for details.
VCR TO TV
BASIC CONNECTION
Connect your
Antenna or Cable signal to
the IN FROM ANT(enna)
jack on the VCR.
Connect a coaxial
cable to the OUT TO
TV jack on the VCR
and to the ANT(enna)
IN jack on the TV.
The coaxial cable may be
supplied with the VCR.
Coaxial cable
Outdoor
VHF/UHF
Antenna
300 to 75Ω
Adaptor
Cable TV signal
Back of TV
Refer to the VCR
owner's manual for other
possible connections and for
operating details.
VCR
- 3 -
