Philips S42SD-YD09 - Page 76

Alignments
EN 76 SDI PDP 2K68.

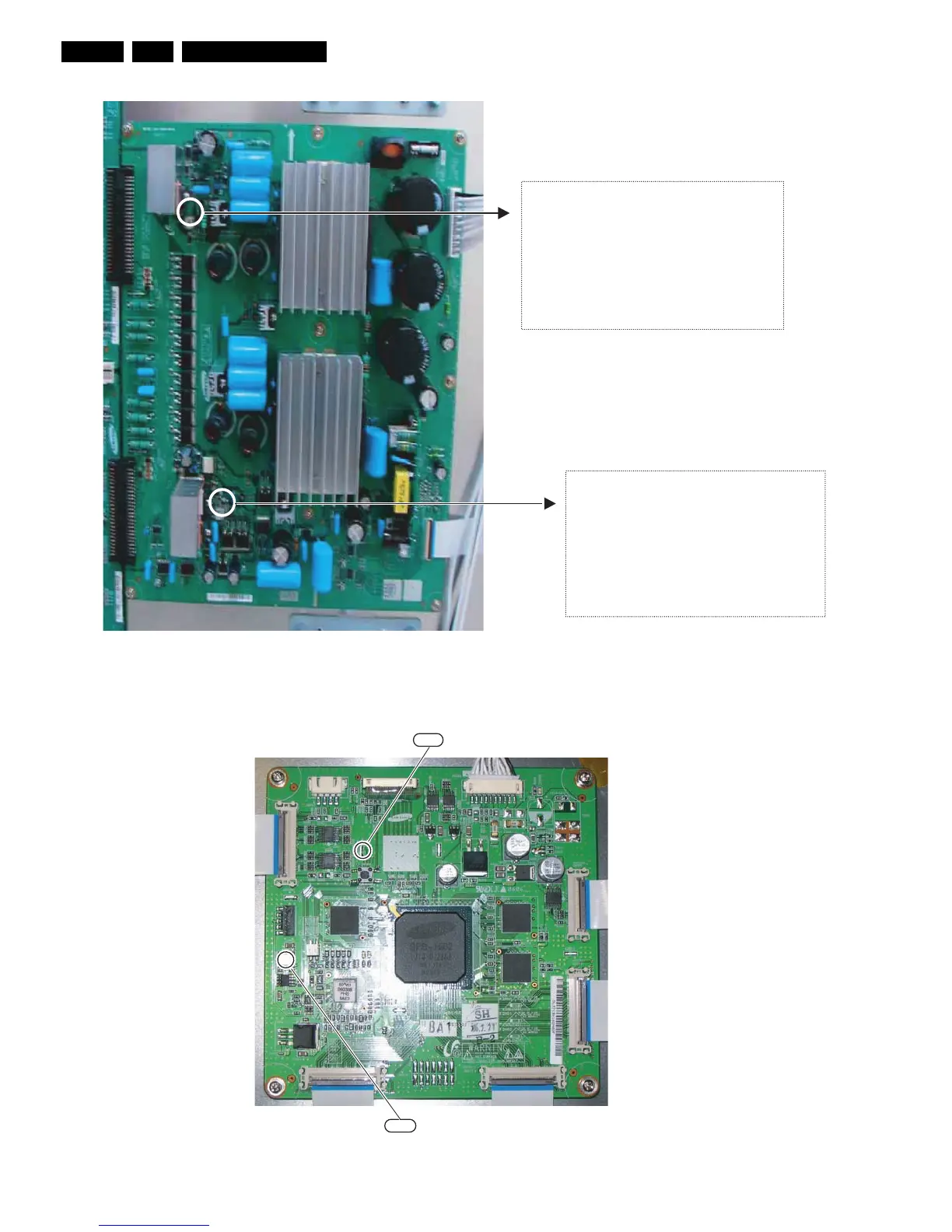

Figure 8-21 Potentiometer locations (Y-Board) - 50 HD w1
Figure 8-22 Logic Main board - 50 HD w1
VR5001 Adjustment :
Adjust VR5001 to set the time of Yf
r
(Main Reset Falling Ramp) like the
picture of front page.
Oscilloscope Setting : 50V / 20us
VR5000 Adjustment :
Adjust VR5000 to set the time of Yr
r
(Main Reset Rising Ramp) like the
picture of front page.
Oscilloscope Setting : 50V / 20us
G_16380_407.eps
160606
Vtogg
Jumper
G_16830_408.eps
160606
