Alignments
EN 78 SDI PDP 2K68.

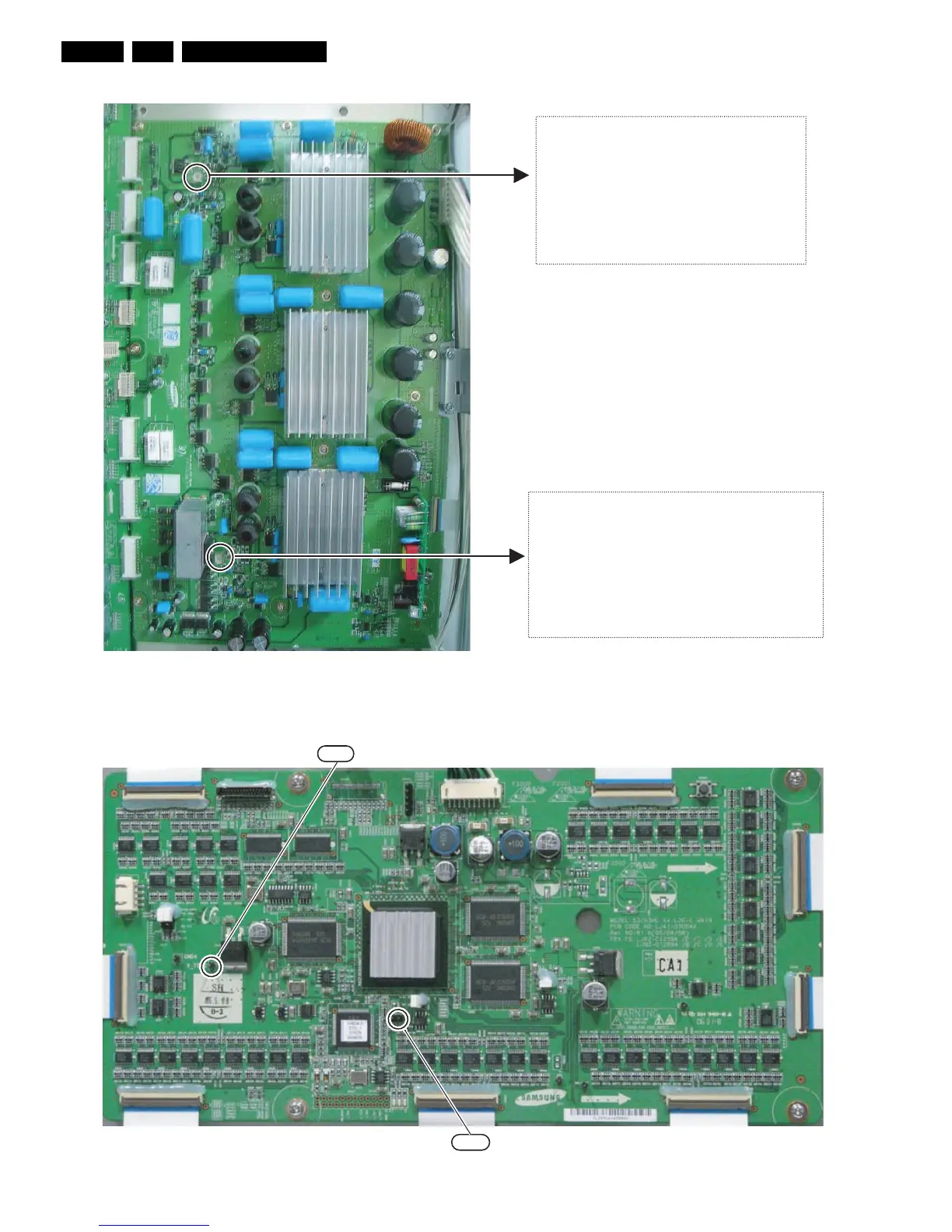

Figure 8-24 Potentiometer locations (Y-Board) - 50 HD w1
Figure 8-25 Logic Main board - 63” HD v4
G_16380_062.eps
181006
VR5001 Adjustment :
Adjust VR5001 to set the time of Yf
r
(Preset) like the picture of the previous page.
Oscilloscope Setting : 20V /40us
VR5000 Adjustment :
Adjust VR5000 to set the time of Yr
r
(Main Reset Rising Ramp) like the
picture of the previous page.
Oscilloscope Setting : 20V / 40us
Vtogg
Jumper
G_16830_060.eps
181006
