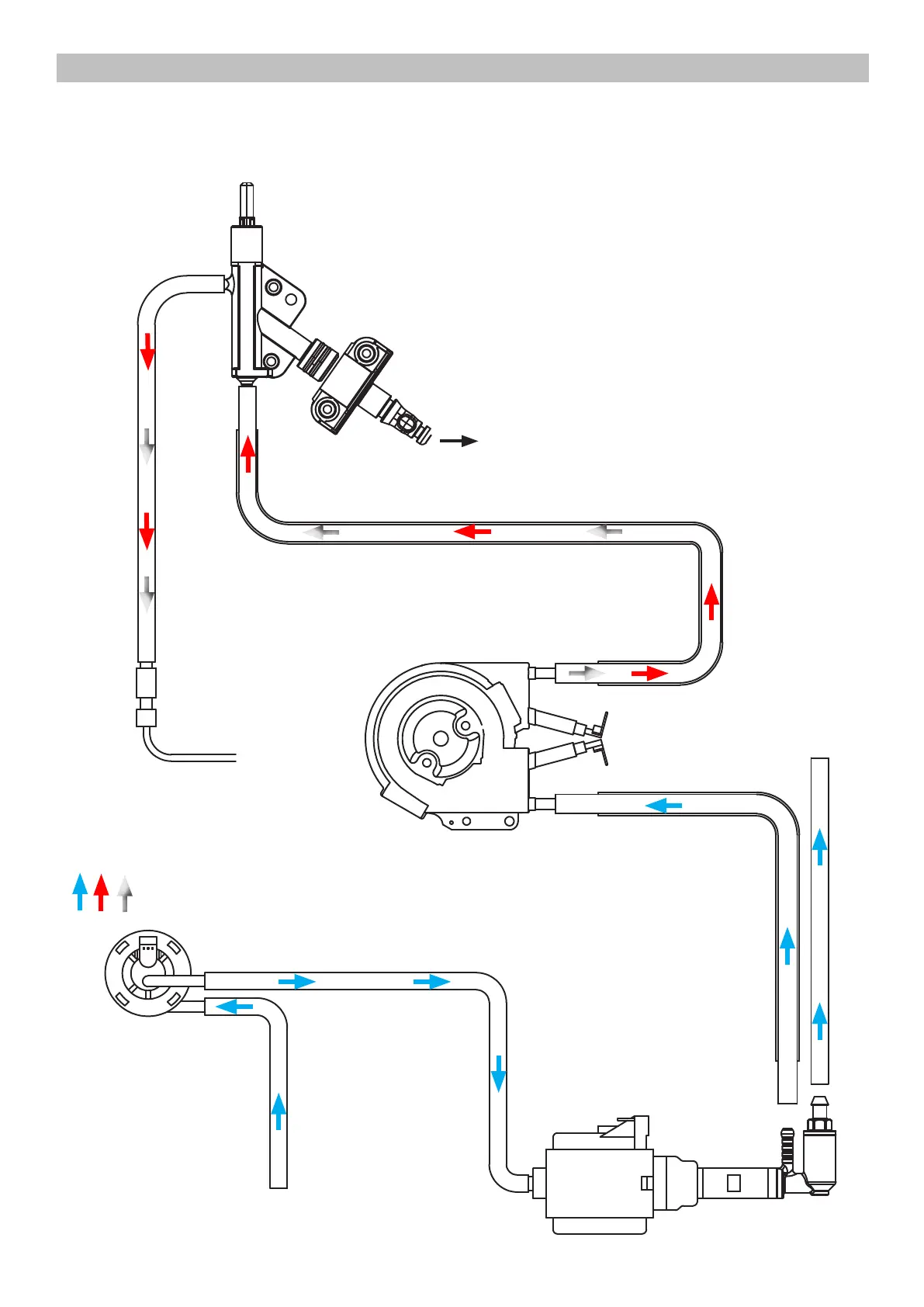

XSMALL 09 WATER CIRCUIT DIAGRAM
9.1. Water circuit diagram Vapore
Boiler Pin
Boiler
Flow meter
Cold water
Hot water
Hot water or steam
Selector faucet
Steam water
Water tank
Water drain
Pump
Safetyvalve
