Philips SDV8622T - Outdoor Mast Installation

28

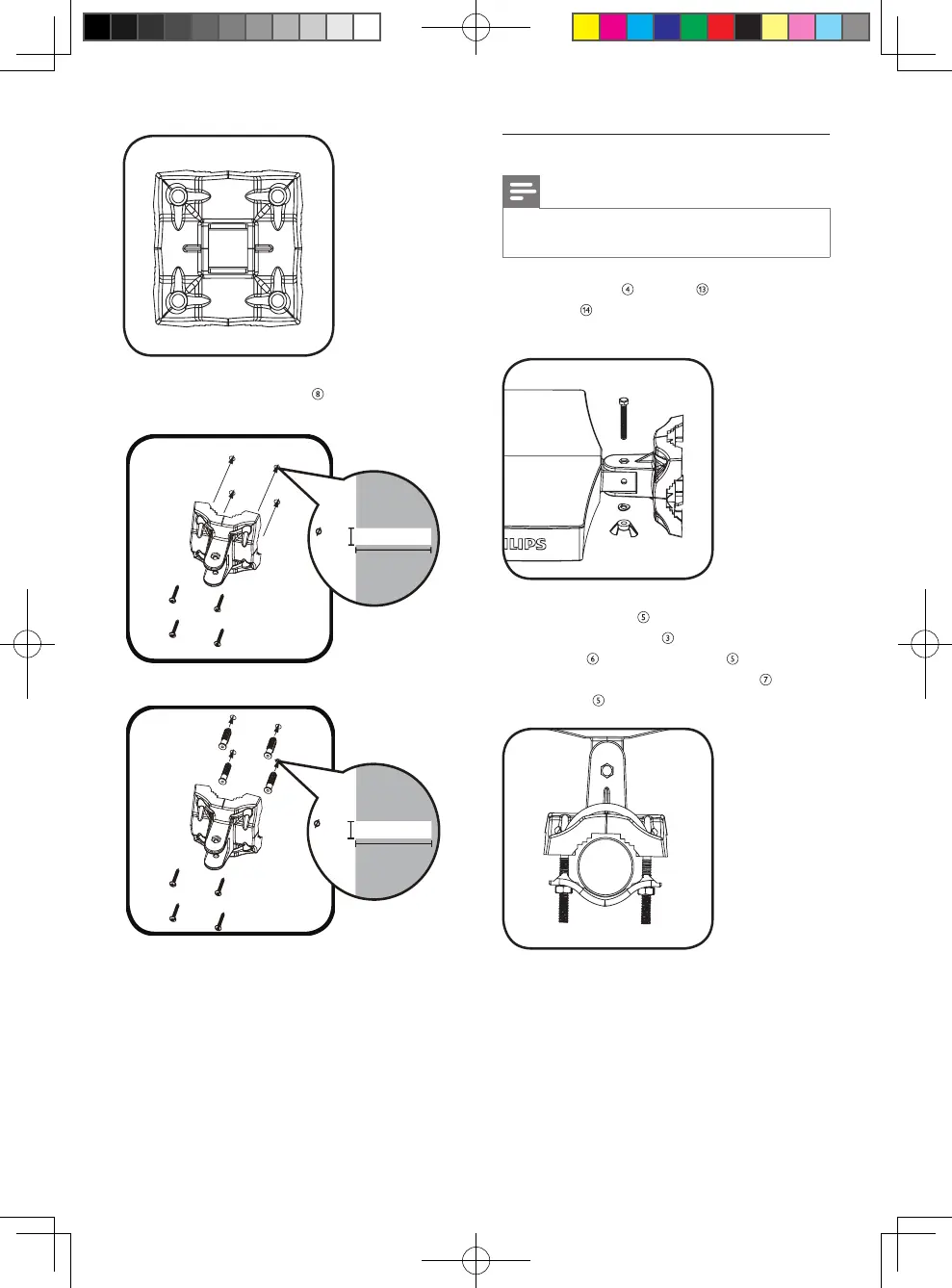

For outdoor mast mount installation
Note
Complete all assembly work on the ground. •
Raise the completed antenna after assembly.
1 Use the nut , washer , and hexagon
screw to attach the antenna to the
wall/mast bracket.
2 Insert U-bolts into the holes of the
wall/mast bracket . Slide the mast
clamps onto the U-bolts . Attach
the four nuts with lock washers to the
U-bolts .
3 Use the wood screws to x the
antenna to the wood wall rmly.
27±5mm
1.1”±0.2”
3.2mm
(1/8”)
35±5mm
1.4”±0.2”
7.9mm
(5/16”)
EN
