Warning
The power injector and power supply are for •
indoor use only.
Tip
This antenna includes a 6m roll of 3C-2V •
coaxial cable. If this is not adequate for your
needs, replace the cable with a RG-6 coaxial
cable instead of adding an extension.
Set up a digital tuner with this
antenna
You can install available channels with the digital
TV tuner. This automatic process is part of the
setup of the tuner. Ensure the antenna has
set up properly before the tuner can receive
viewable channels.
There are two ways to connect the antenna to
the TV:
Connect the antenna to a digital tuner. •
If the signal strength is good enough, the
channels can be memorized in the tuner
automatically .
Connect the antenna directly to the TV. •
Tune to the analogue channels and nd
the best antenna location. Then re-
connect the antenna to the digital tuner.
Ensure the signal strength is good enough
before you install the channels with the
tuner.
Connect to the TV
Note
As previously noted, the amplier (Power •
injector + Power supply) must be placed in-
line between the antenna and any splitter or
additional devices.

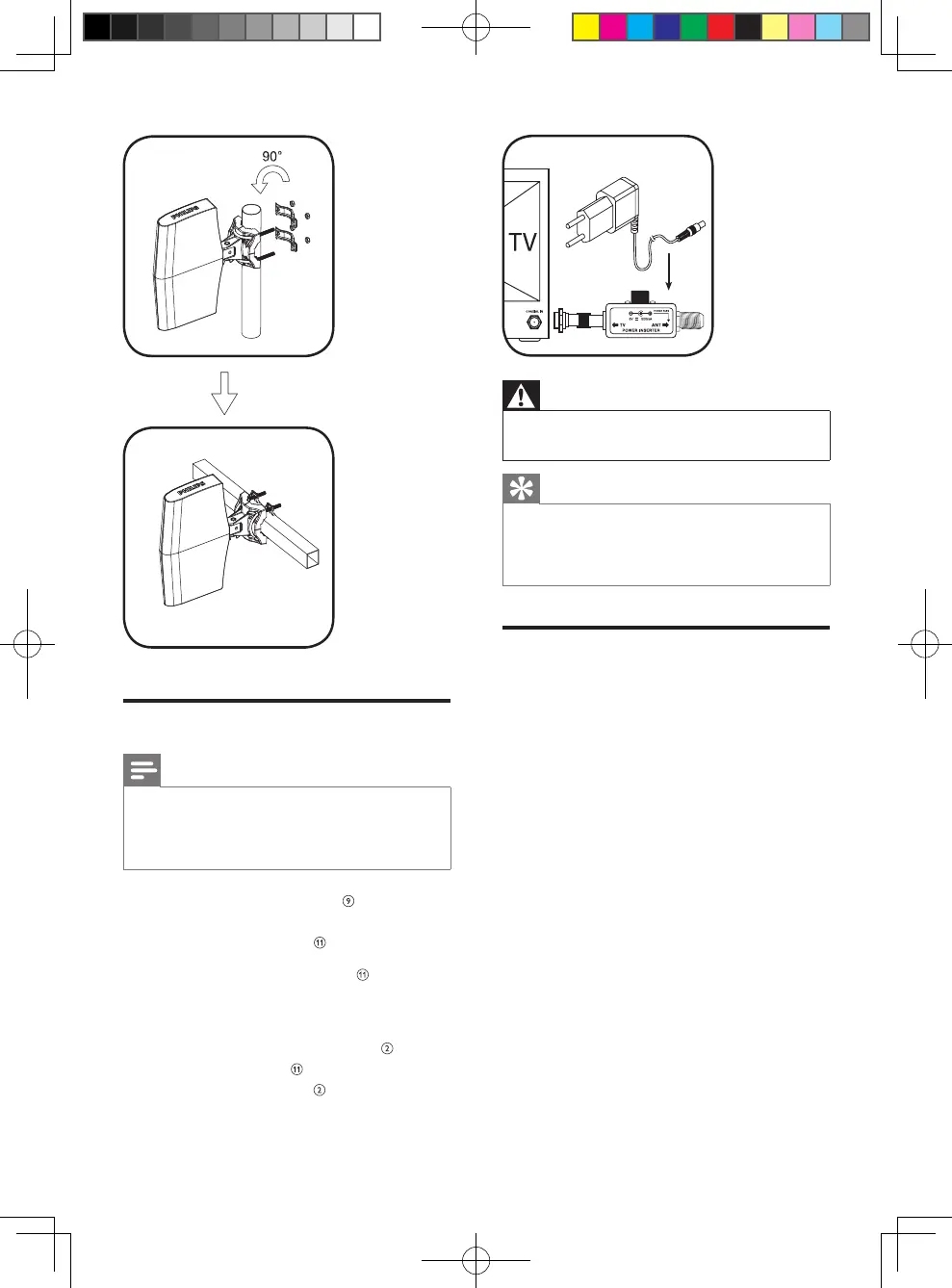

1 Connect the coaxial cable from the
antenna to the connector labeled ANT
on the power injector .
2 Connect the power injector to the
antenna input on the TV, digital set-top
box, splitter or other devices.
3 Connect the power supply plug to
the power injector , and then plug the
power supply adaptor into a 100-240V
AC receptacle.
