Determine the signal strength
Before Installation, determine the best
location for optimum reception. It is important
for the antenna to have an unobstructed path
to the transmitter. For best results, ensure the
antenna faces the location of the transmitter.
Note
Indoor, choose a location near a window •
which gives the antenna a clear view of the
transmitter.
Note
Place the antenna away from metal surface to •
avoid interference.
For indoor wall mount installation
Note
Complete all assembly work on the ground •
before installing on a wall or an antenna mast.
1 Use the nut , washer , and hexagon
screw to attach the antenna to the
wall/mast bracket.
2 Use the screw holes of the wall/mast
bracket as a guide to mark position for
the wood screws.
3 Get started
Installation

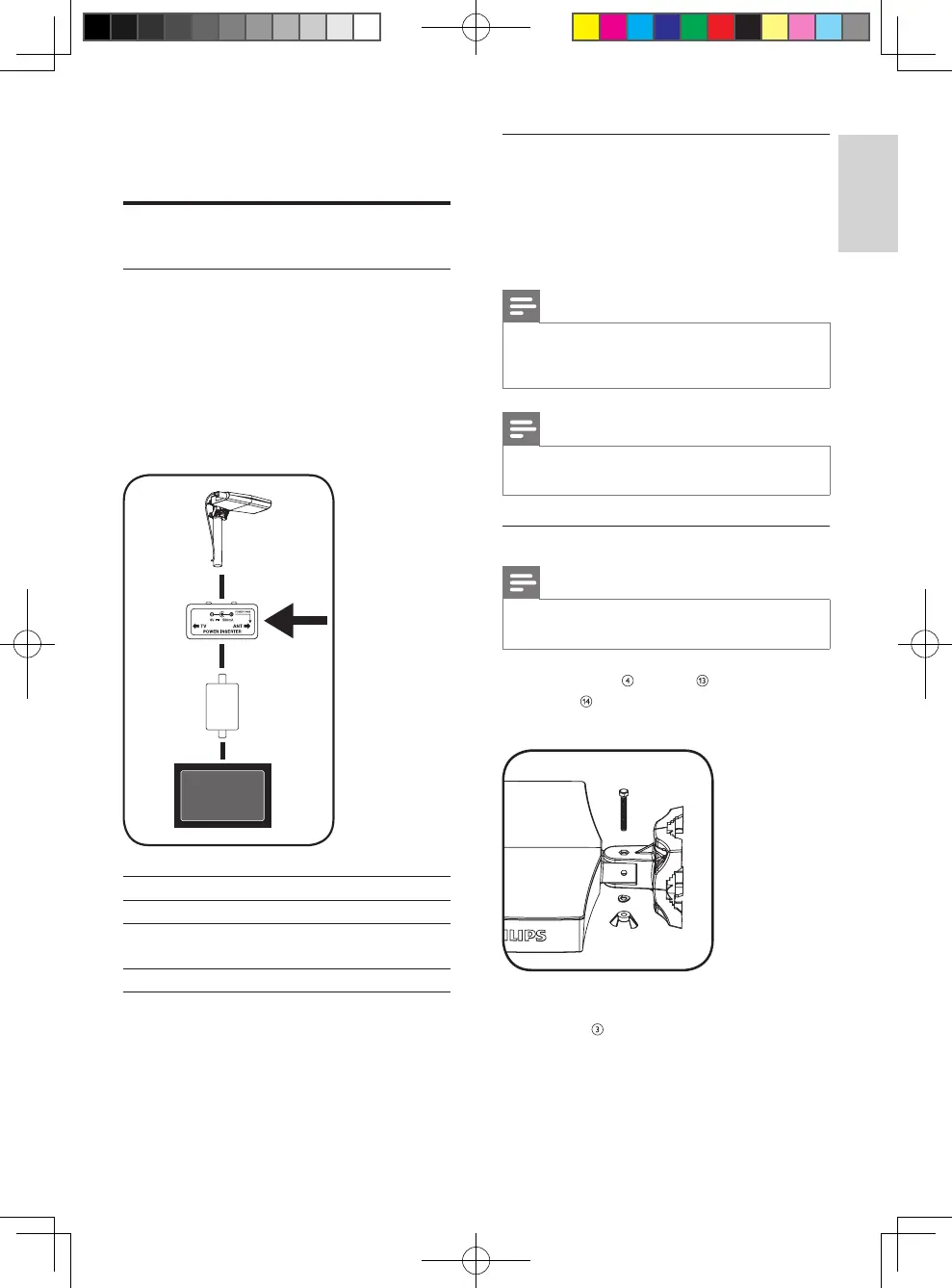

Installation information
This antenna uses a power inserter module to
power the antenna amplier.
It is essential for proper operation of this
antenna system that the power inserter
be connected between the antenna and
any devices such as splitters, matching
transformers, networks, etc.
a Antenna with built-in amplier
b Power inserter module
c Splitters or matching
transformers (not included)
d TV or video device
a
b
c
d
