Philips SW7100SA - PCB Layout View

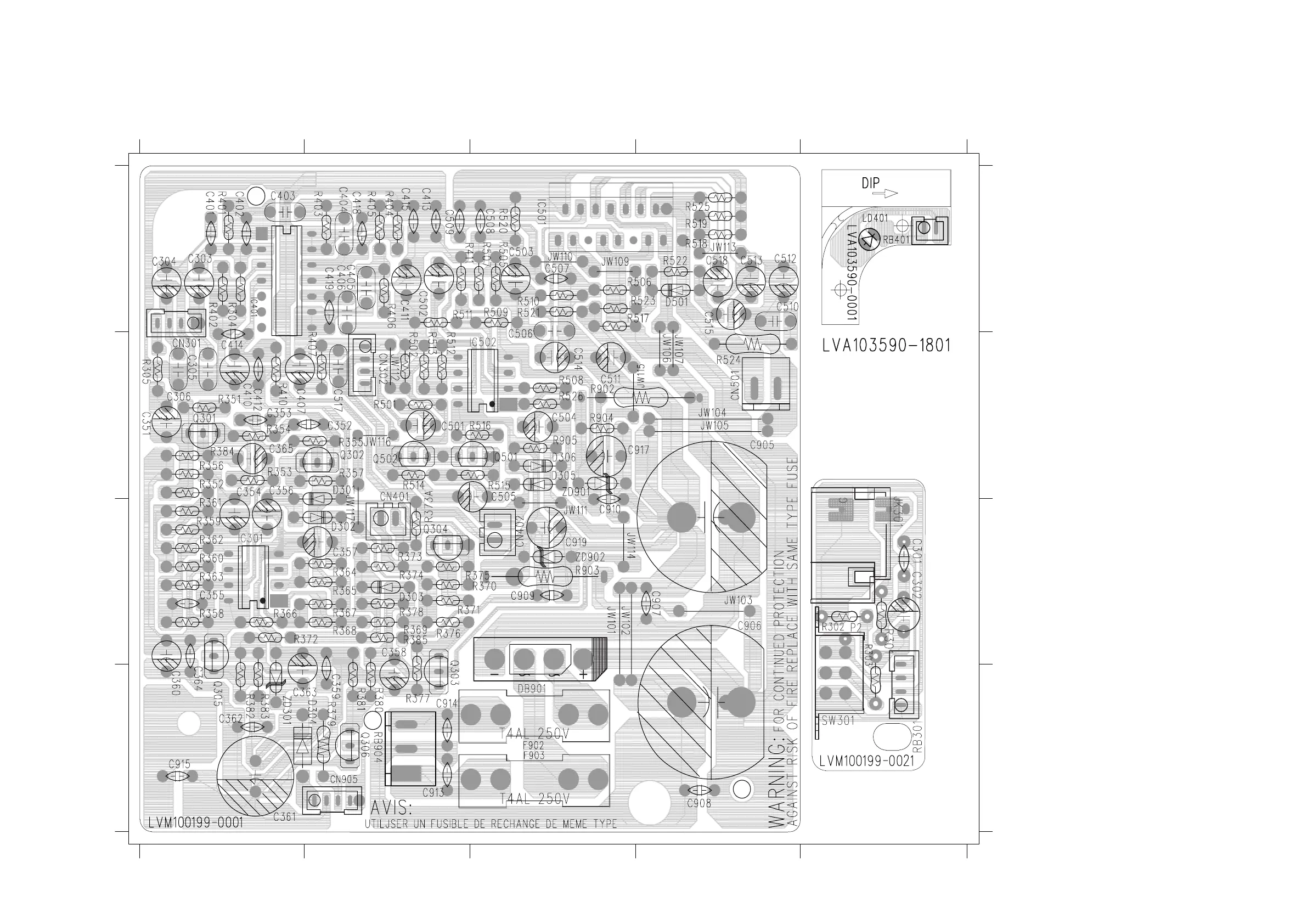

PCB LAYOUT VIEW
4-3
4-3
1
ABCDE
ABCDE
2
3
4
1
2
3
4
C301 E3
C302 E3
C303 A1
C304 A1
C305 A2
C306 A2
C351 A2
C352 B2
C353 A2
C354 A2
C355 A3
C356 A2
C357 B3
C358 B3
C359 B4
C360 A4
C361 A4
C362 A4
C363 A4
C364 A4
C365 A2
C401 A1
C402 A1
C403 A1
C404 B1
C405 B1
C406 B1
C407 A2
C410 A2
C411 B1
C412 A2
C413 B1
C414 A1
C415 B1
C418 B1
C419 B1
C502 B1
C503 C1
C504 C2
C505 C2
C506 C2
C507 C1
C508 C1
C509 B1
C510 D1
C511 C2
C512 D1
C513 D1
C514 C2
C515 D1
C517 B2
C518 D1
C905 D2
C906 D3
C907 D3
C908 D4
C909 C3
C910 C3
C913 B4
C914 B4
C915 A4
C917 C2
C919 C3
CN301 A2
CN401 B3
CN501 D2
CN905 B4
D301 B2
D302 B3
D303 B3
D304 B4
D305 C2
D306 C2
D501 D1
DB901 C4
F902 C4
F903 C4
IC301 A3
IC401 A1
IC501 C1
IC502 C2
JK301 E3
JW101 C3
JW102 C3
JW103 D3
JW104 D2
JW105 D2
JW106 D2
JW107 D2
JW109 C1
JW110 C1
JW111 C3
JW112 B2
JW113 D1
LD401 E1
Q302 B2
Q303 B4
Q304 B3
Q501 C2
Q502 B2
R301 E3
R302 E3
R303 E3
R305 A2
R351 A2
R352 A2
R353 A2
R354 A2
R355 B2
R356 A2
R357 B2
R358 A3
R359 A3
R360 A3
R361 A3
R362 A3
R363 A3
R364 B3
R365 B3
R366 A3
R367 B3
R368 B3
R369 B3
R370 C3
R371 B3
R372 A3
R373 B3
R373A B3
R374 B3
R375 C3
R376 B3
R377 B4
R378 B3
R379 B4
R380 B4
R381 B4
R382 A4
R383 A4
R384 A2
R401 A1
R402 A1
R403 B1
R404 B1

R405 B1

R406 B1

R407 B2

R410 A2

R411 C1

R502 B2

R505 C1

R506 C1

R507 C1

R508 C2

R509 C1

R510 C1

R511 B1

R512 B2

R513 B2

R514 B2

R515 C2

R516 C2

R517 C1

R518 D1

R520 C1

R521 C1

R522 D1

R523 C1

R524 D2

R525 D1

R526 C2

R902 C2

R903 C3

R904 C2

R905 C2

RB301 E4

RB401 E1

RB904 B4

SW301 E4

ZD301 A4

ZD901 C2

ZD902 C3

