Philips SW7100SA - Power Board Schematic and PCB Layout

5-2

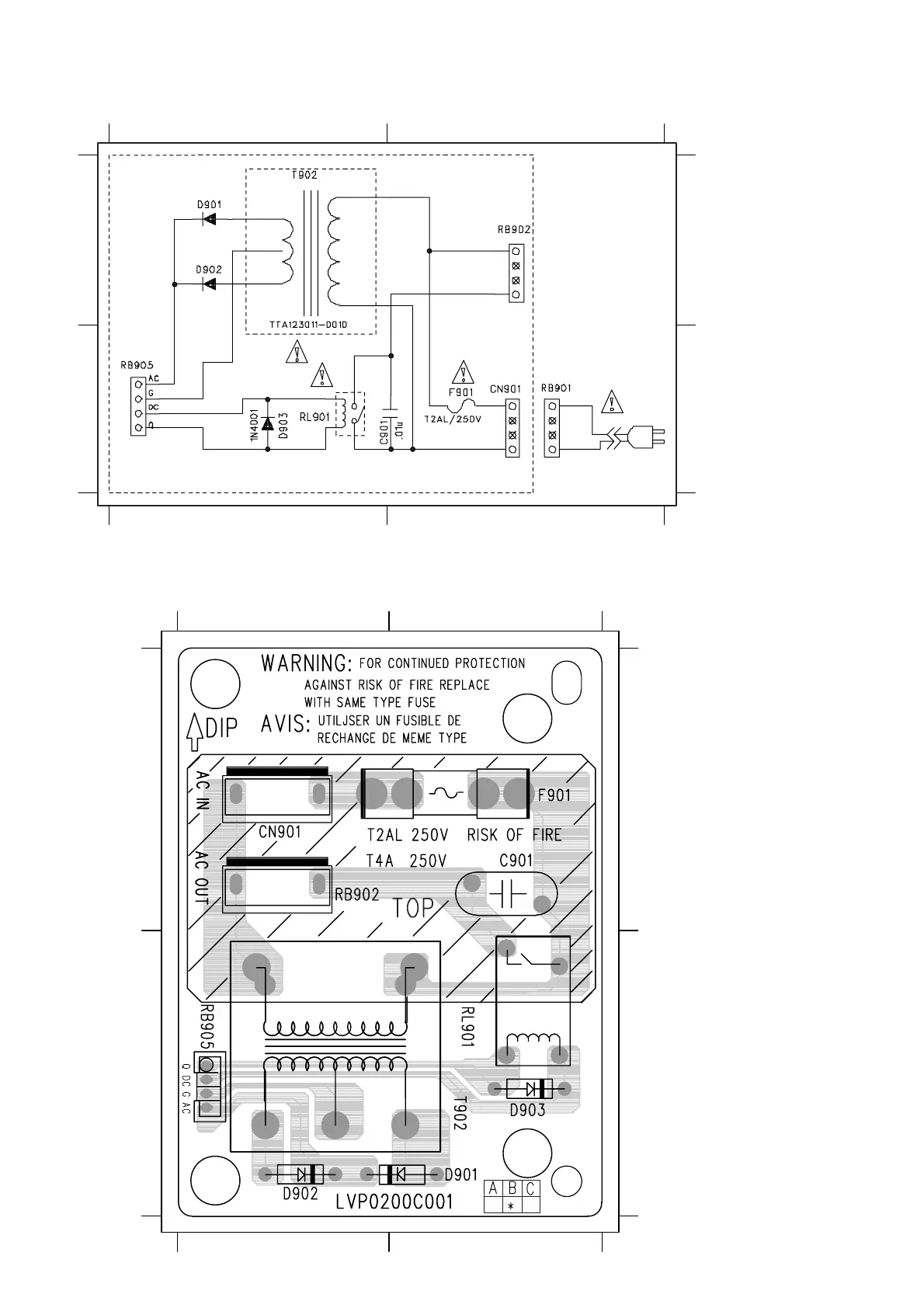

POWER SCHEMATIC DIAGRAM
POWER PCB LAYOUT VIEW
A
1
2
1
2
B
AB
C901 B1
CN901 A1
D901 B2
D902 A2
D903 B2
F901 B1
RB902 A1
RB905 A2
RL901 B2
T902 B2
C901 A2
CN901 B2
D901 A1
D902 A1
D903 A2
F901 B2
RB902 B1
RB905 A2
RL901 A2
T902 A1
