DISASSEMBLY INSTRUCTIONS
2-1

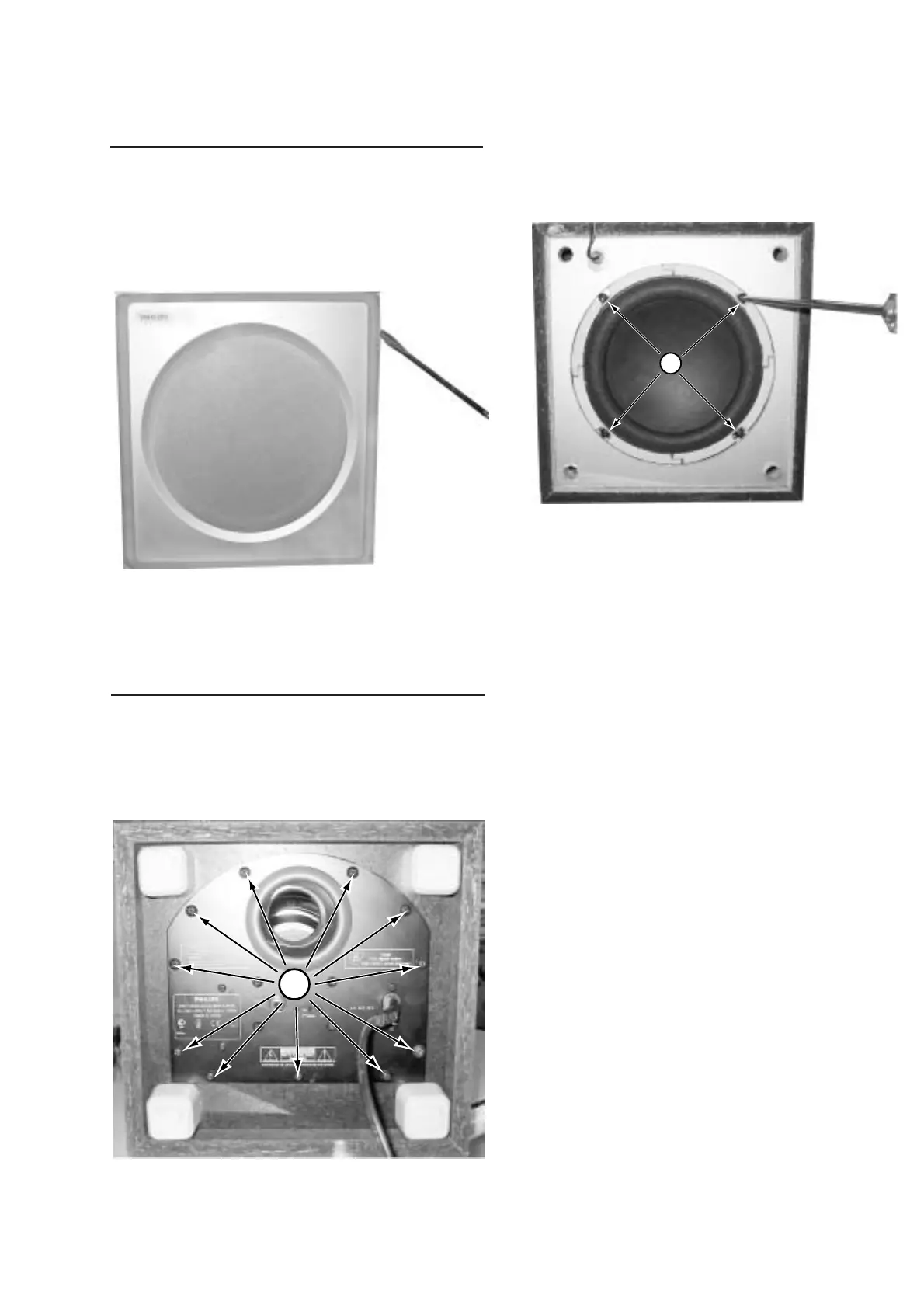

Dismantling the Front Assembly & Speaker Driver
1. Place the Subwoofer Box as shown in the Picture 1
and use a screw driver to force open the Front
assembly.
Caution: Do not break the bundle of wires to the front.
Take care the surface when take out the front
panel of subwoofer
2. Place the Subwoofer Box as shown in the Picture 2
and loosen 4 screws A to remove the Speaker Driver.
Dismantling the Rear Assembly
1. Loosen 11 screws B as shown in the Picture 3 (Rear
View) to pull out the Printed Circuit Board assembly.
Caution: Do not break the bundle of wires to the front.
Picture 1
Picture 2
Picture 3
WARNING: THERE IS ONLY A LED
BETWEEN FRONT PANEL AND
WOOD BOX. IF NOT NECCESSARY,
PLEASE DO NOT TRY TO OPEN THE
FRONT PANEL!!!
B
To Next Page
