2
1. Place the Subwoofer Box as shown in the Picture 4 and
Picture 5 and use a screw driver (minus type) to force
open the front assembly.
Caution: Do not break the bundle of wires to the front.
2. Unscrew 4 screws D (see Picture 6) to remove the Woox
Speaker (pos. 4).
1. Place the Subwoofer Box upside down and remove the
4 Rubber Foot A (see Picture 1). Then unscrew 4 screws
B (see Picture 2) to loosen the Grill Base (pos. 19).
Picture 5
Picture 4

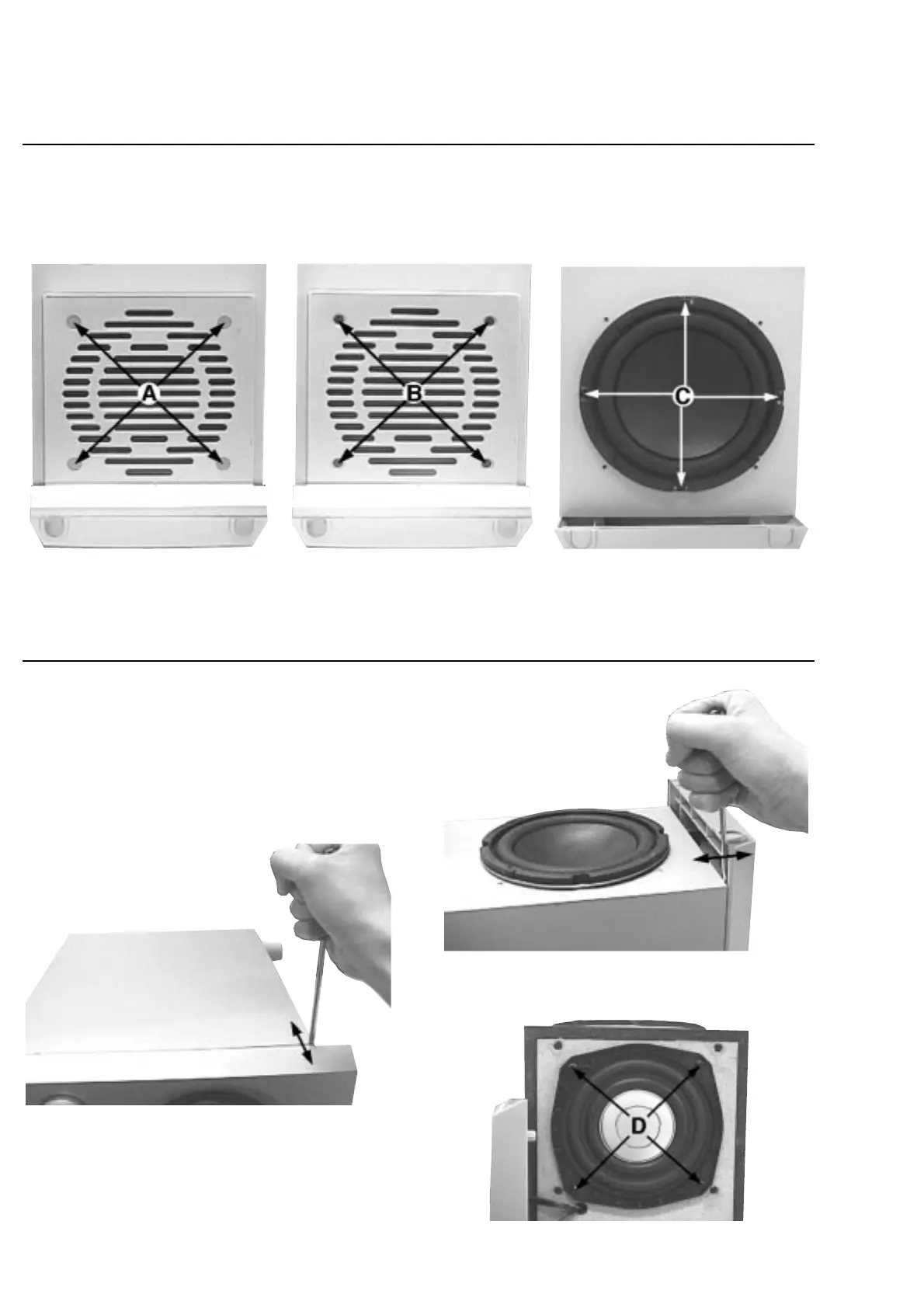

DISMANTLING INSTRUCTIONS
Dismantling the Grill Base & Speaker Driver
2. Unscrew 4 screws C (see Picture 3) to remove the
Speaker Driver (pos. 17).
Picture 3Picture 2Picture 1
Dismantling the Front Assembly
Picture 6
