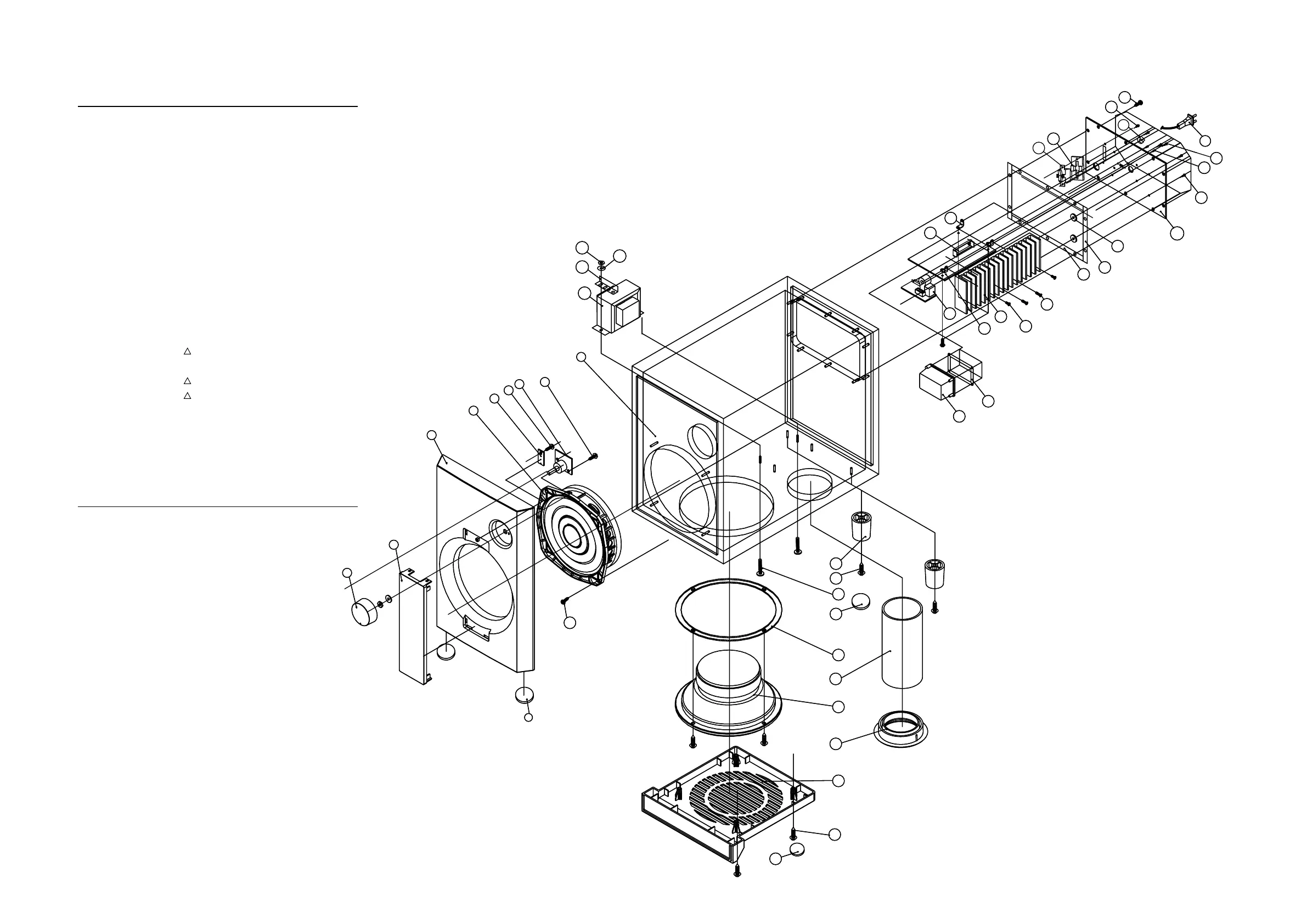

Philips SW966 - EXPLODED VIEW

19
9
1
2
18
17
16
15
10
14
12
13
11
42
10
36
33
37
35
36
7
4
3
5
6
5
8
38
39
40
41
21
23
26
27
31
30
32
29
22
20
24
25
45
28
43
34
44
8
EXPLODED VIEW
8
MECHANICAL PARTS LIST
1 9965 000 09698 Volume Knob
2 9965 000 08270 Bar Trim
3 9965 000 09699 Front Cabinet
4 9965 000 08272 Woox Speaker
9 9965 000 09700 Foot
11 9965 000 09701 Foot D30X35mm
14 9965 000 09702 Rubber Pad
15 4822 532 13065 Speaker Sponge
16 9965 000 08277 Port Tube
17 9965 000 08278 Speaker Driver 100W 6,5" 4 ohm
18 9965 000 08279 Port Tube
19 9965 000 09703 Grill Base
29 9965 000 09704 Rubber Foot
34 9965 000 07092 Bushing
35 9965 000 09705
!
Mains Cord
38 9965 000 09706
!
Power Transformer EI-66 230V 40W
44 9965 000 09707
!
SW Rocker 5A AC 250V TV-5
9965 000 09734 RCA Cable L=3000mm
Note: Only the parts mentioned in this list are normal
service spare parts.
SCREW LIST
6 M3 x 6
7 M3 x 8
10 M3.5 x 14
12 M4 x 28
13 M4 x 20
22 M3.5 x 28
26 M3 x 8
27 M3 x 14
36 M3 x 10
37 M2 x 6
42 M3 x 12
