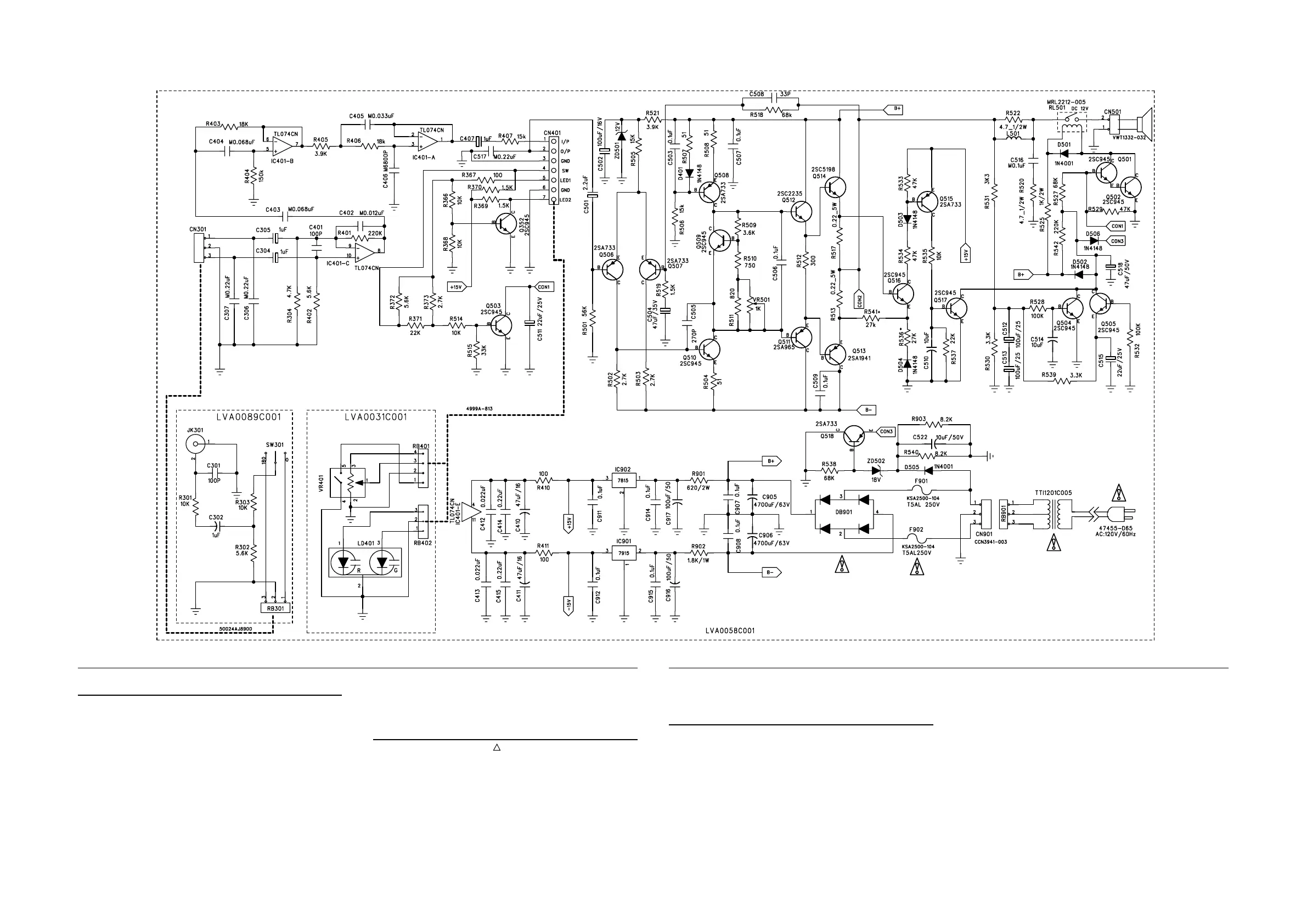

Philips SW970/17 - Circuit Diagram

# : Provision.
Note : All capacitors are in uF unless otherwise specified.
All resistors are 1/6W 5% unless otherwise specified.
Some values may varies, see respective parts list for correct value.
#
#
#
#
7
CIRCUIT DIAGRAM
7
ELECTRICAL PARTS LIST
RESISTORS
R530 4822 050 23302 3k3 1% 0,6W
R531 4822 050 23302 3k3 1% 0,6W
R532 4822 050 21004 100k 1% 0,6W
R533 4822 050 24703 47k 1% 0,6W
R534 4822 050 24703 47k 1% 0,6W
R535 4822 050 21003 10k 1% 0,6W
R536 9965 000 09722 27k 5% 1/6W
R537 4822 050 22203 22k 1% 0,6W
R538 4822 050 26803 68k 1% 0,6W
R539 4822 050 23302 3k3 1% 0,6W
R540 9965 000 09730 8,2k 5% 1/6W
R541 9965 000 09722 27k 5% 1/6W
R542 9965 000 08284 220k 5% 1/6W
R901 9965 000 09719 620R 5% 2W
R902 9965 000 09717 1,8k 5% 1W
DIODES
DB901 4822 130 70035
!
Rectifier RS402L
D401 4822 130 30621 1N4148
D501 4822 130 31438 1N4001G
D502 4822 130 30621 1N4148
D503 4822 130 30621 1N4148
D504 4822 130 30621 1N4148
D505 4822 130 31438 1N4001G
D506 4822 130 30621 1N4148
LD401 4822 130 10236 LED Green/Red
ZD501 4822 130 34197 BZX79-B12
ZD502 4822 130 31024 BZX79-B18
TRANSISTORS & INTEGRATED CIRCUITS
IC401 4822 209 32742 TL074CN
IC901 4822 209 90748 AN7915T
IC902 4822 209 90747 7815
Q352 4822 130 41198 2SC945P
Q501 4822 130 41198 2SC945P
Q502 4822 130 41198 2SC945P
Q503 4822 130 41198 2SC945P
Q504 4822 130 41198 2SC945P
Q505 4822 130 41198 2SC945P
Q506 4822 130 63876 2SA733R
Q507 4822 130 63876 2SA733R
Q508 4822 130 63876 2SA733R
Q509 4822 130 41198 2SC945P
Q510 4822 130 41198 2SC945P
Q511 4822 130 63221 2SA965Y
Q512 4822 130 10235 2SC2235-Y
Q513 4822 130 10942 2SA1941-O
Q514 4822 130 10943 2SC5198-O
Q515 4822 130 63876 2SA733R
Q516 4822 130 41198 2SC945P
Q517 4822 130 41198 2SC945P
Q518 4822 130 63876 2SA733R
Note : Only the parts mentioned in this list are normal
service spare parts.
ELECTRICAL PARTS LIST
