Philips SW970/17 - Exploded View; Mechanical Parts List; Screw List

1
9
8
3
5
2
4
34
11
10
6
7
13
8
40
20
14
15
17
16
18
19
33
21
22
24
30
31
32
25
23
26
28
27
29
8
36
38
37
35
39
12
8

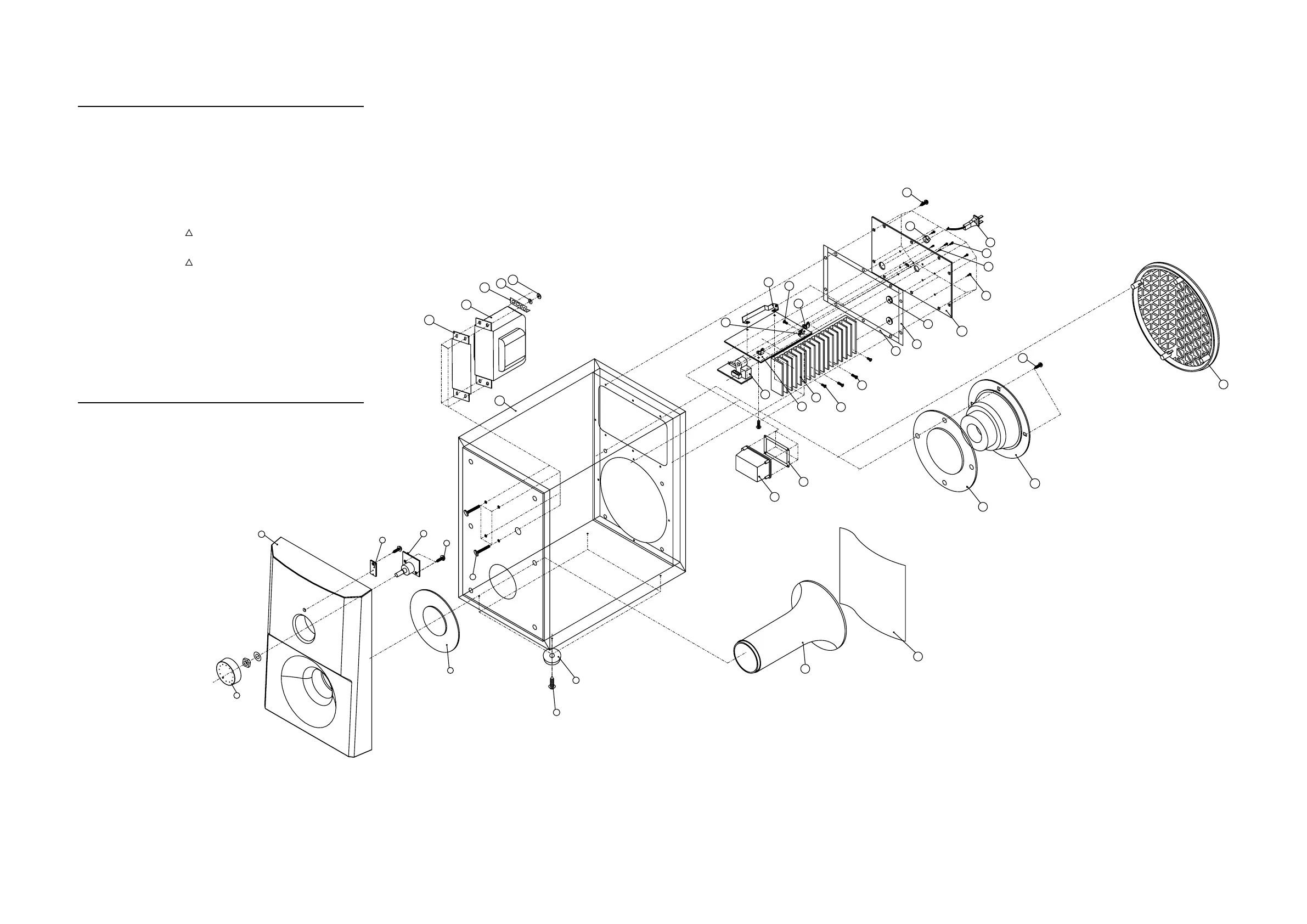

EXPLODED VIEW
8
MECHANICAL PARTS LIST
1 9965 000 12146 Volume Knob
2 9965 000 12147 Front Cabinet
9 9965 000 03360 Foot
10 9965 000 12148 Port Edge
11 9965 000 03365 Cloth (185 x 185 mm)
12 4822 532 13065 Speaker Sponge
13 9965 000 08278 Speaker Driver 100W 6,5" 4 ohm
28 3139 118 77230
!
Mains Cord UL
29 9965 000 07092 Bushing
38 9965 000 09735
!
Power Transformer 120V/60Hz 100W
40 4822 458 10658 Speaker Grille
9965 000 09734 RCA Cable L=3000mm
Note: Only the parts mentioned in this list are normal
service spare parts.
SCREW LIST
5 M3 x 8
7 M4 x 25
8 M3.5 x 14
19 M3 x 8
20 M3 x 12
25 M3 x 10
26 M2 x 6
27 M3 x 8
31 M3 x 6
