5 W audio power amplifier TDA2611A
APPLICATION INFORMATION

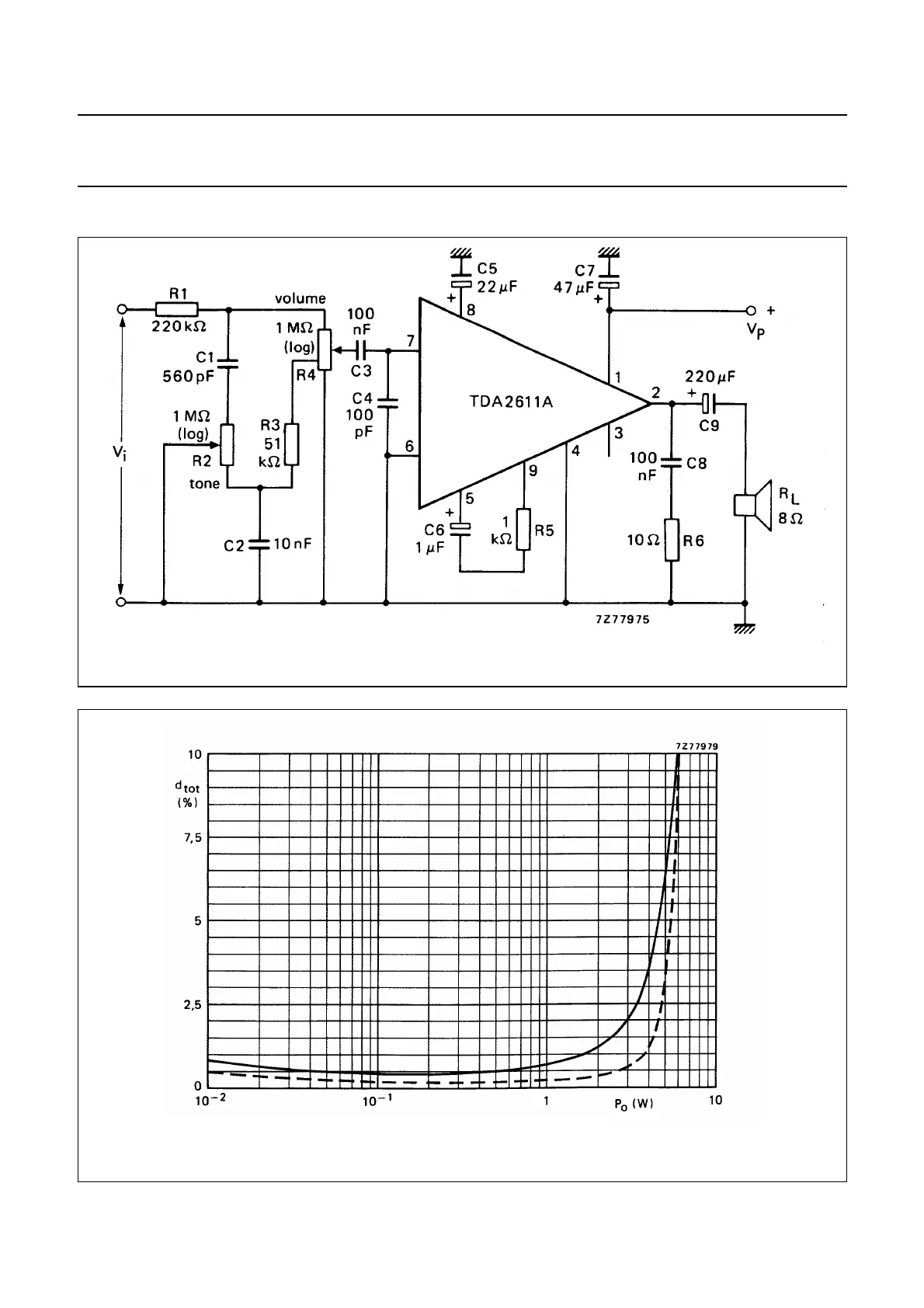

Fig.10 Ceramic pickup amplifier circuit.
Fig.11 Total harmonic distortion as a function of output power;  with tone control;
−− −without tone control; in circuit of Fig. 10; typical values.
