Philips Semiconductors Product specification
5 W audio power amplifier TDA2611A
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134)
Supply voltage V
P
max. 35 V
Non-repetitive peak output current I
OSM
max. 3 A
Repetitive peak output current I
ORM
max. 1,5 A
Total power dissipation see derating curves Fig. 2
Storage temperature T
stg
−55 to + 150 °C
Operating ambient temperature T
amb
−25 to + 150 °C

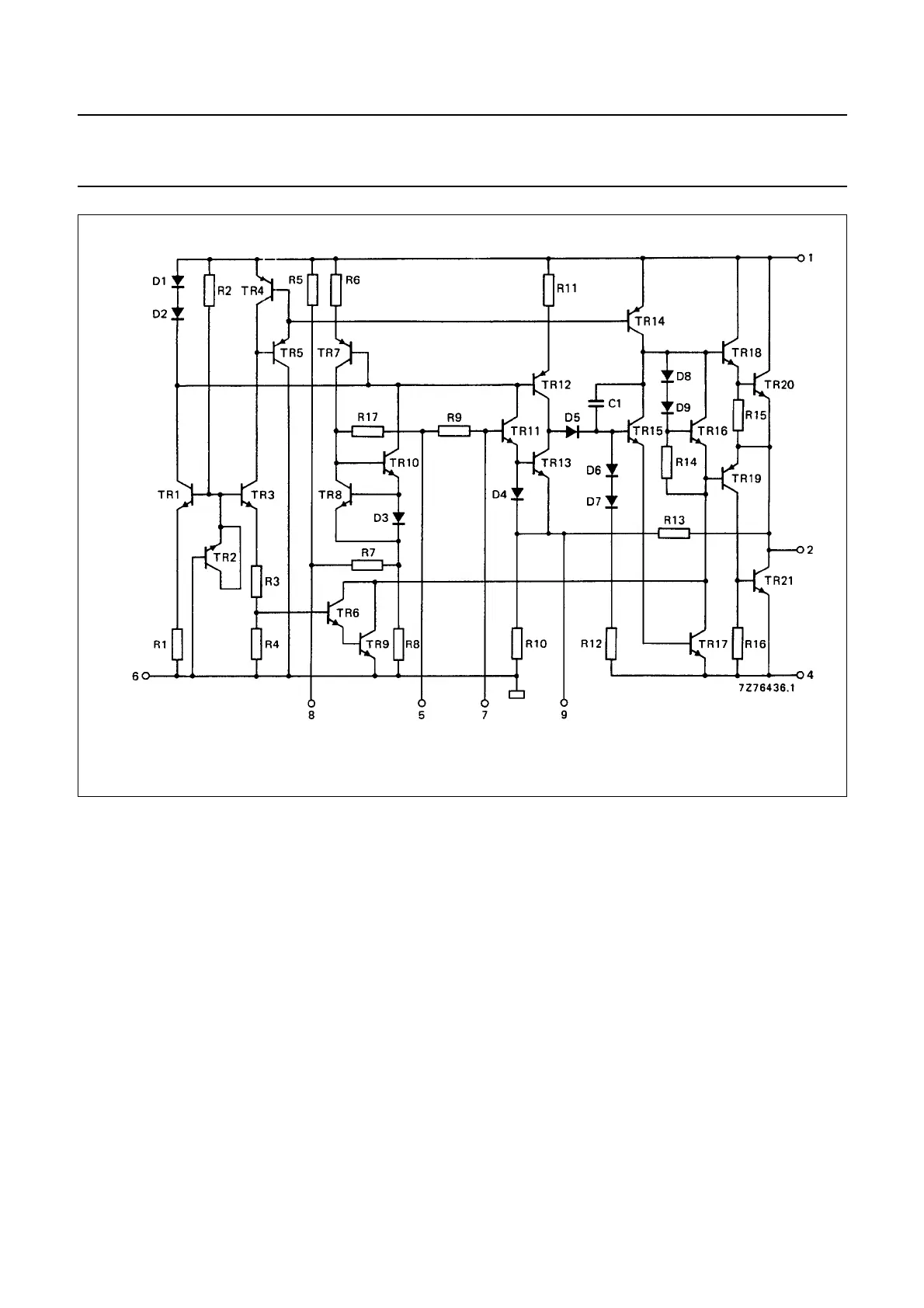

Fig.1 Circuit diagram; pin 3 not connected.
