5 W audio power amplifier TDA2611A

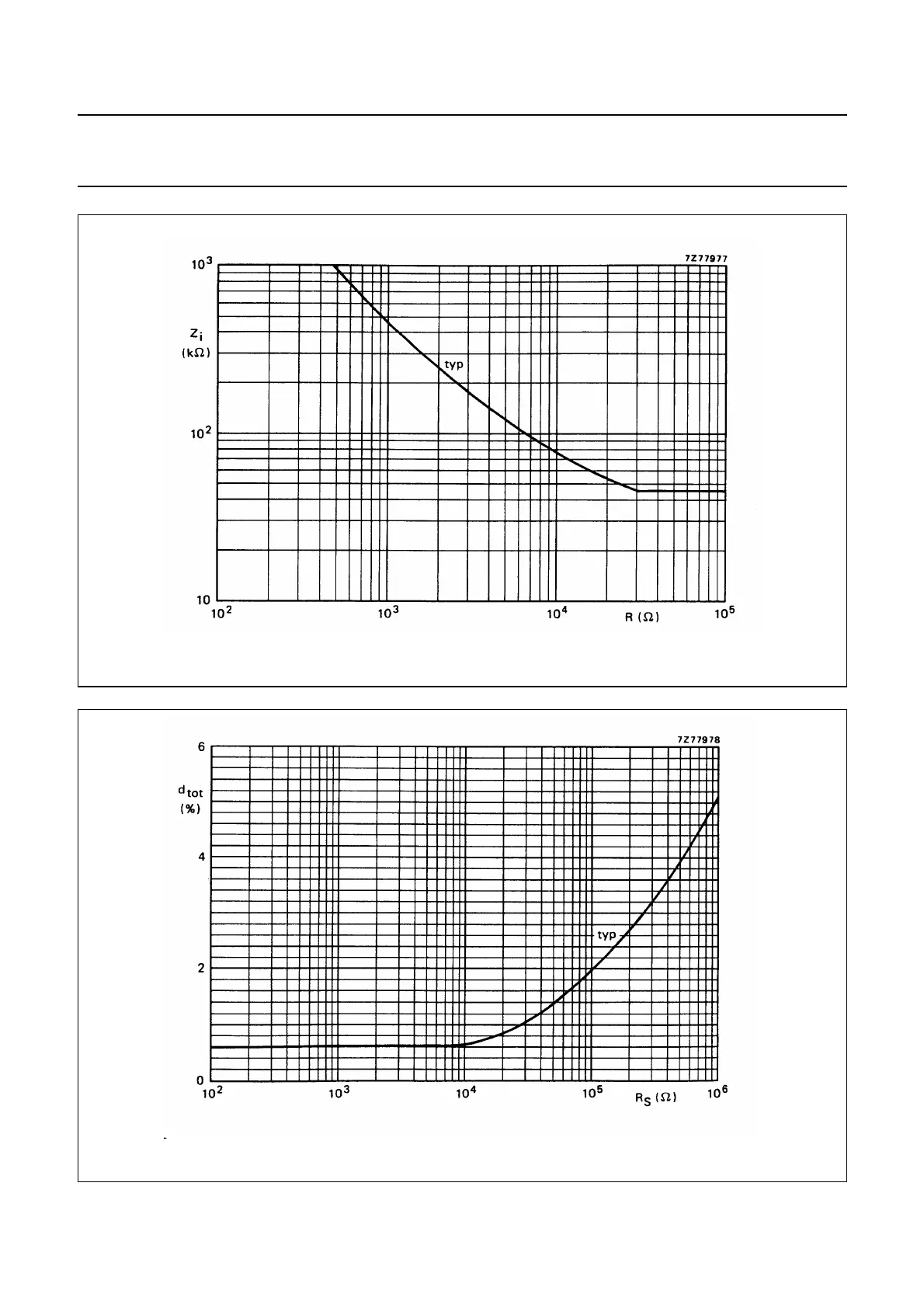

Fig.7 Input impedance as a function of R in circuit of Fig. 3; C = 1 µF; f = 1 kHz.
Fig.8 Total harmonic distortion as a function of R
S
in the circuit of Fig. 3; P
o
= 3,5 W; f = 1 kHz.
