TFA9843AJ
20 W stereo power amplifier with volume control
14. Test information
14.1 Quality information
The General Quality Specification for Integrated Circuits, SNW-FQ-611 is applicable.
(1) R
L
= 2 Ω
(2) R
L
= 4 Ω
(3) R
L
= 6 Ω
(4) R
L
= 8 Ω
(5) R
L
= 16 Ω
2 × SE loads; T
amb
=25°C; external heatsink of 10 K/W; music signals.

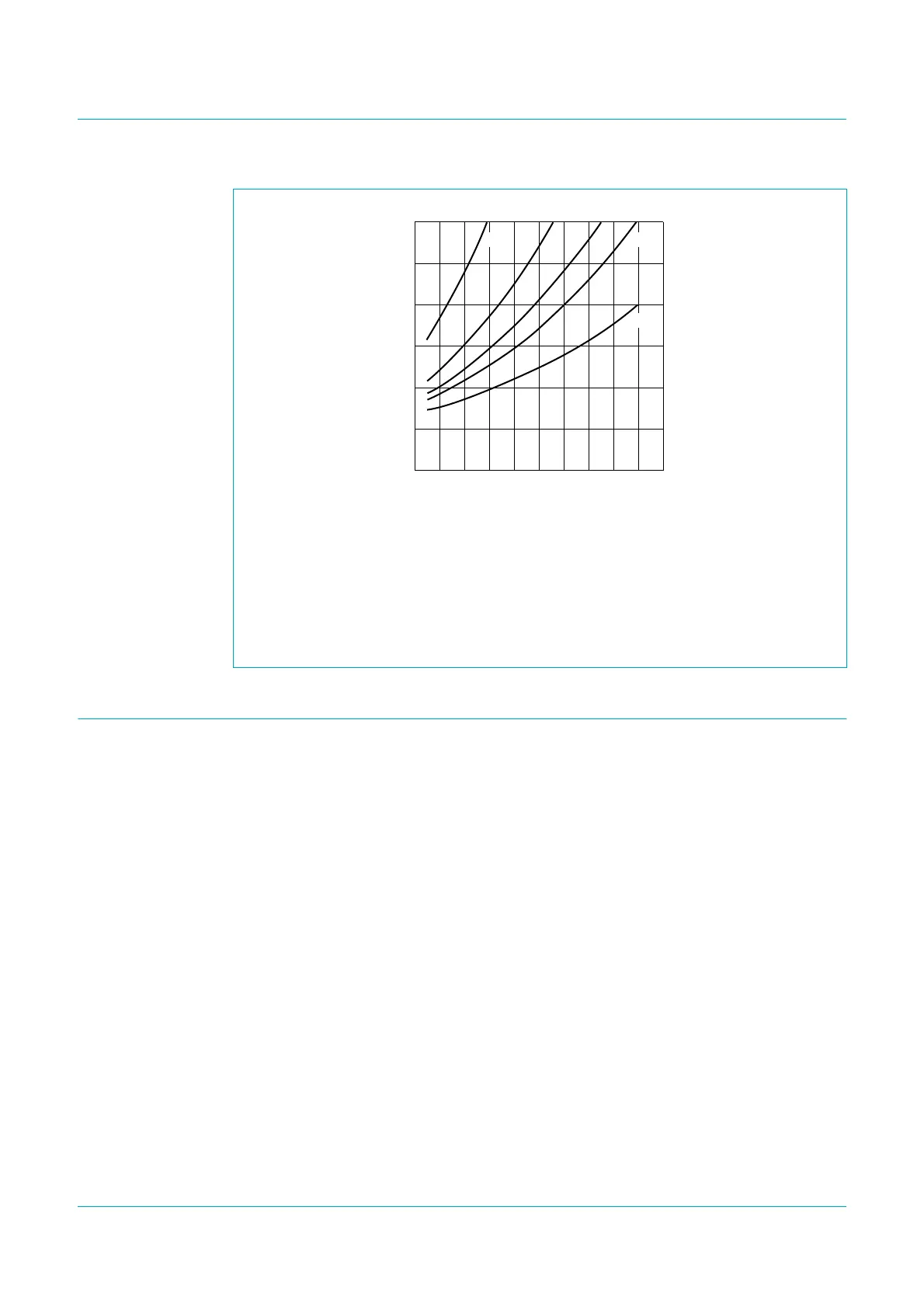

Fig 16. Junction temperature as a function of supply voltage
8
150
100
50
0
12 28
V
CC
(V)
16 20 24
mce504
T
j
(˚C)
(1) (2) (3) (4)
(5)
