Ant In To TV 75 Ohm
Câblodistributeur
300 Ohms
VHF
Modulateur HF Poste de télévision
b Connectez ensuite le terminal TO TV du modulateur RF à votre source
d’ente VHF par un câble coaxial de 75 ohms.
Option2:Si votre poste de télévision n’est pas déjà relié à une autre source
d’entrée VHF:
a. branchez votre câble (antenne ou câblodistribution) de votre terminal
d’ente TV à 75 ohms, puis branchez-la au terminal ANT IN du
modulateur RF.
b. Connectez ensuite le terminal TO TV du modulateur RF à votre téléviseur
par un câble coaxial de 75 ohms.
Nota:
Si votre poste de télévision dispose uniquement de bornes VHF à
vis 300-ohm, employez un transformateur correspondant 75 ohm-à-300
ohm pour compléter la connexion.
4. Enfichez le cordon d’alimentation du modulateur HF dans une prise c.a.
ordinaire.

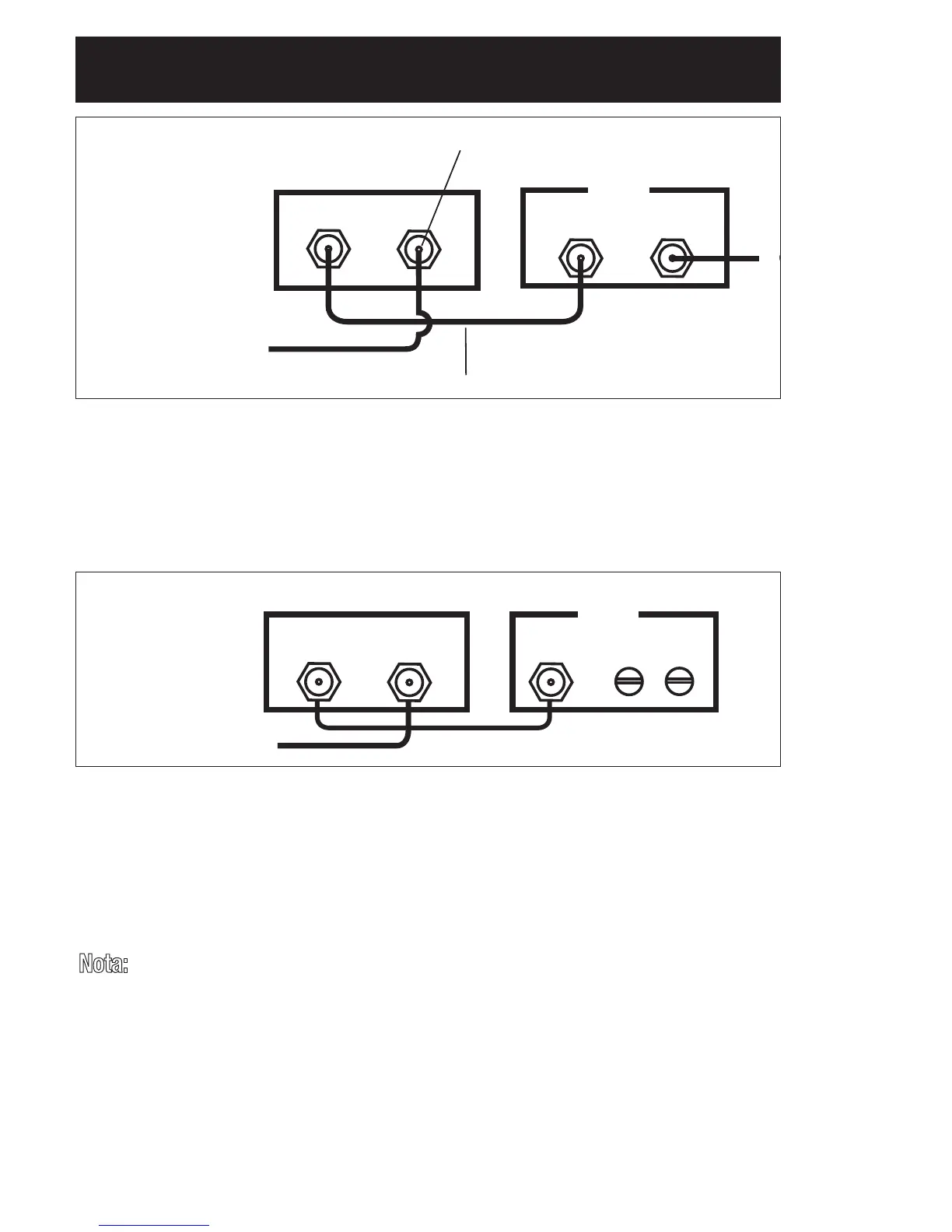

CONNEXIONS (suite)
Câblodistributeur
A
joutez ce câble
Reconnectez ici
Modulateur HF
VCR
VHF
A
NT INTO TV
75 Ohm75 Ohm
OUTIN
Télévision
